Wireless LAN Module Product List
| Dimension(mm) | 21.4x14.0x2.4 |
|---|---|
| Flash ROM | 4MB |
| RAM | 512KB |
| I/F | UART, SPI |
| CPU | ARM Cortex M4F |
| OperationTemp.(℃) | -30 to +85 |
| Certification | Japan, U.S.A., Canada, (CE) |
| IEEE Spec | IEEE802.11b/g/n |
| BluetoothⓇ Ver. | Not supported |
| Overview | V1.1 |
| DataSheet | V1.0 |
| Dimension(mm) | 26.9x19.0x2.1 |
|---|---|
| Flash ROM | 8MB |
| RAM | 1.2MB |
| I/F | UART, SPI, I2C, I2S, GPIOs |
| CPU | ARM Cortex M33 |
| OperationTemp.(℃) | -40 to +85 |
| Certification | Japan, U.S.A., Canada, (CE) |
| IEEE Spec | IEEE802.11a/b/g/n/ac/ax |
| BluetoothⓇ Ver. | V5.4 |
| Overview | v1.1 |
| DataSheet | v1.2 |

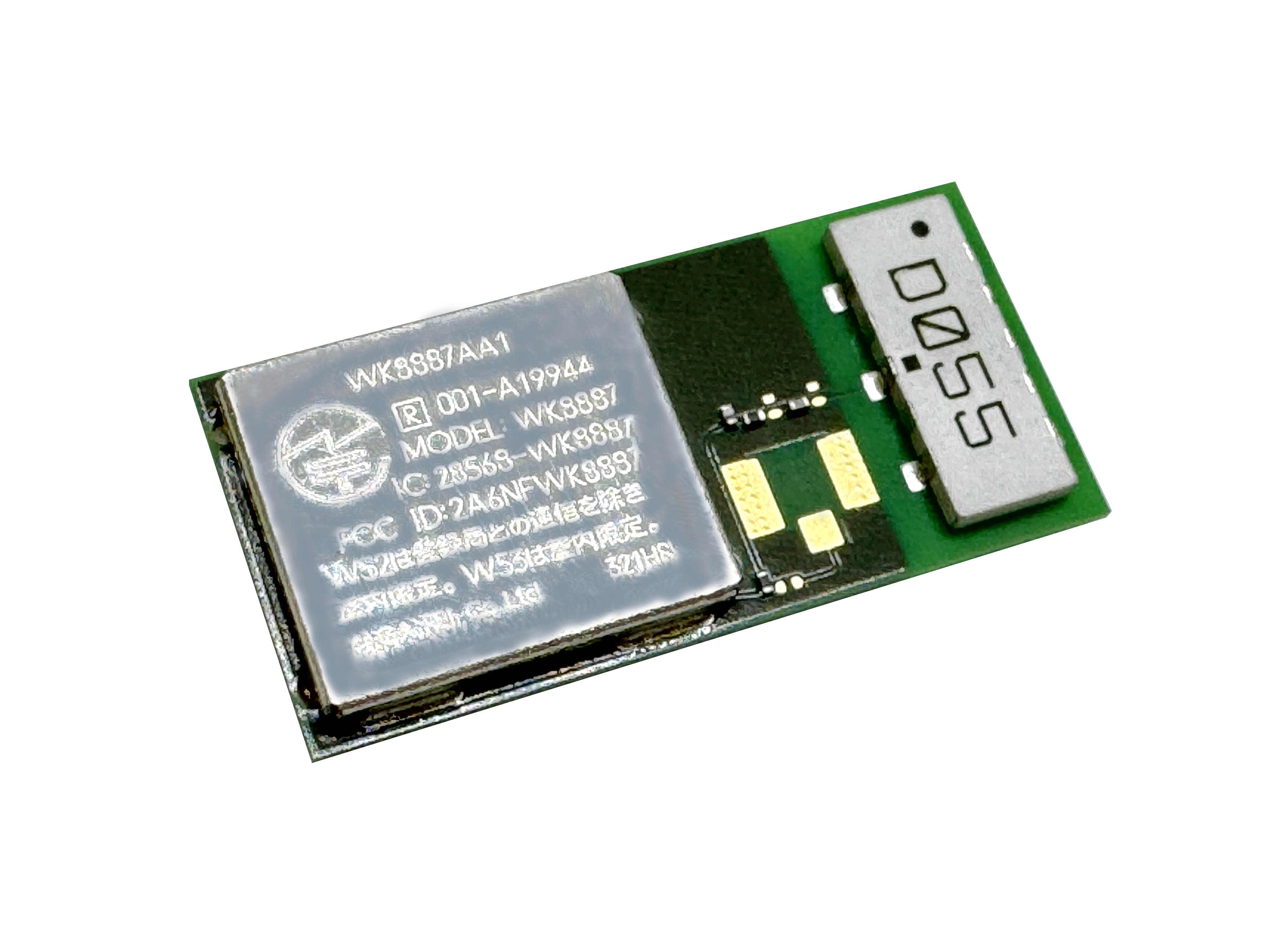

| Dimension(mm) | 24.0*11.5*2.0 |
|---|---|
| I/F | SDIO, PCM |
| Crystal | Yes |
| OperationTemp.(℃) | -30 to +85 |
| Certification | Japan, U.S.A., Canada, (CE) |
| IEEE Spec | 802.11 ac/a/b/g/n |
| BluetoothⓇ Ver. | V4.2 |
| Antenna | Yes |
| Overview | V1.1 |
| DataSheet | V1.1 |
| Dimension(mm) | 25.0*15.7*2.1 |
|---|---|
| I/F | SDIO 3.0 for Wi-Fi UART for Bluetooth |
| Crystal | Yes |
| OperationTemp.(℃) | -40 to +85 |
| Certification | Japan, U.S.A., Canada, (CE) |
| IEEE Spec | 802.11 a/b/g/n/ac/ax |
| BluetoothⓇ Ver. | V5.4 |
| Antenna | Yes |
| Overview | - |
| DataSheet | - |
Wireless LAN＋MCU
Wireless LAN
|
For quotation requests regarding mass production modules or evaluation kits, please use the forms below. You can also purchase from online stores. |
Wireless Module Quotation Request & Purchase
Application Development
SDK Information
Supporting Product Launches
Comprehensive Support from Development to Market Entry
Comparison Table of Current Products and Former Products (TAIYO YUDEN Products) [View Here]
| BLE/WLAN | Chip Set | Former Products | Current Products |
| BLE | nRF54L15 | ES4L15BA1 | |
| BLE | nRF54L15 | EC4L15BA1 | |
| BLE | nRF5340 | EYSQBNZUC | EB5340BA1 |
| BLE | nRF5340 | EJ5340BA1 | |
| BLE | nRF52840 | EYSKBNZWB | EB2840AA2 |
| BLE | nRF52840 | EYSKBNUWB-VX | EB2840MA2 |
| BLE | nRF52840 | EYSKDNZWB | ED2840AA2 |
| BLE | nRF52840 | EYSKJNZWB | EJ2840AA2 |
| BLE | nRF52840 | EYSKJNAWB-VX | EJ2840MA2 |
| BLE | nRF52833 | EYSPBNZUA | EB2833AA2 |
| BLE | nRF52833 | EYSPDNZUA | ED2833AA2 |
| BLE | nRF52833 | EYSPJNZUA | EJ2833AA2 |
| BLE | nRF52832 | EYSHCNZWZ | EC2832AA2 |
| BLE | nRF52832 | EYSHJNZWZ | EJ2832AA2 |
| BLE | nRF52832 | EYSHSNZWZ | ES2832AA2 |
| BLE | nRF52820 | EYSRCNZUY | EC2820AA2 |
| BLE | nRF52820 | EYSRSNZUY | ES2820AA2 |
| BLE | nRF52820 | EC2820MA2 | |
| BLE | nRF52820 | ES2820MA2 | |
| BLE | nRF52811 | EYSNCNZWW | EC2811AA2 |
| BLE | nRF52811 | EYSNSNZWW | ES2811AA2 |
| BLE | nRF52810 | EYSLCNZWW | EC2810AA2 |
| BLE | nRF52810 | EYSLSNZWW | ES2810AA2 |
| BLE | nRF52805 | ES2805AA2 | |

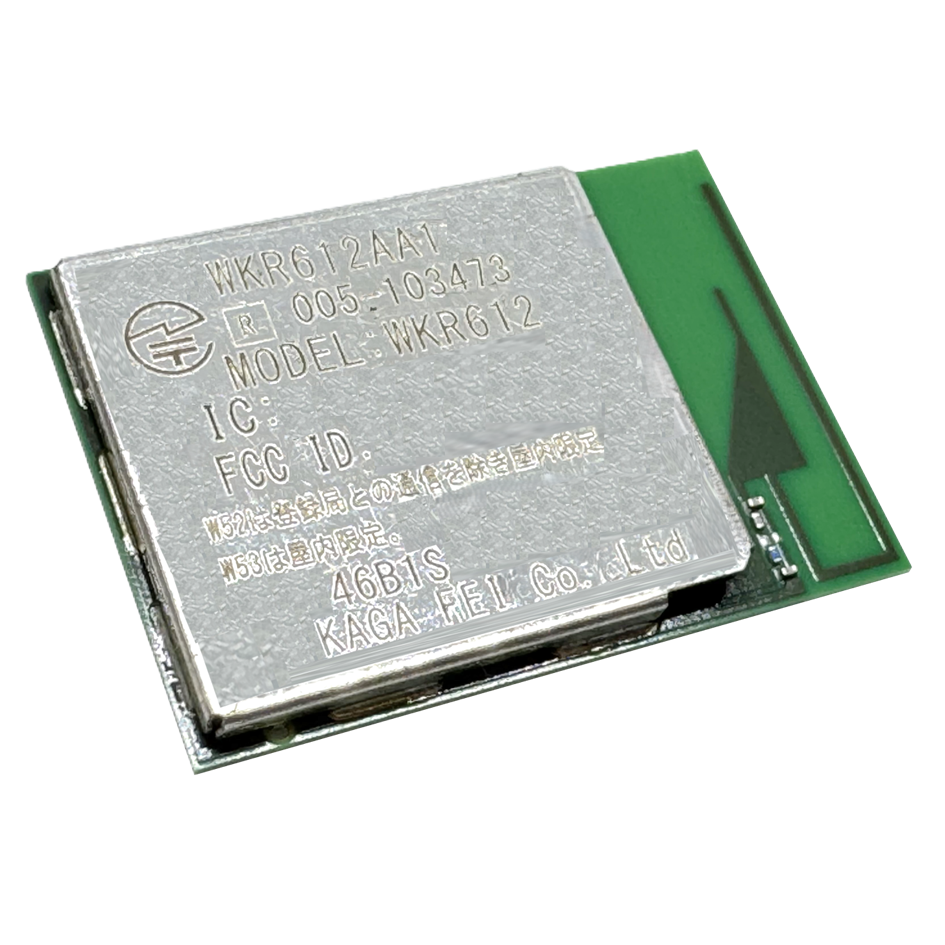

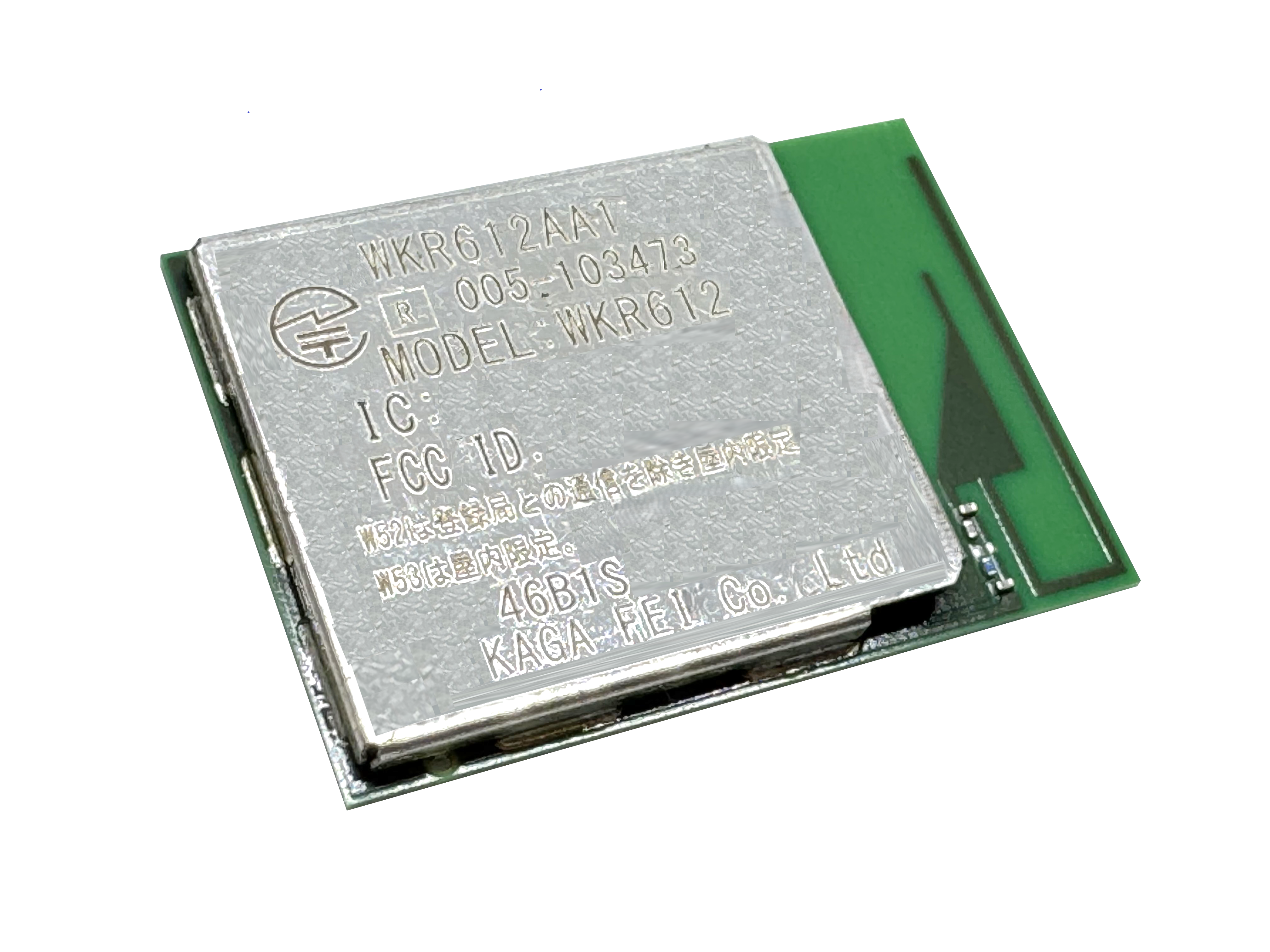

| WLAN | RW612 | WKR612AA1 | |

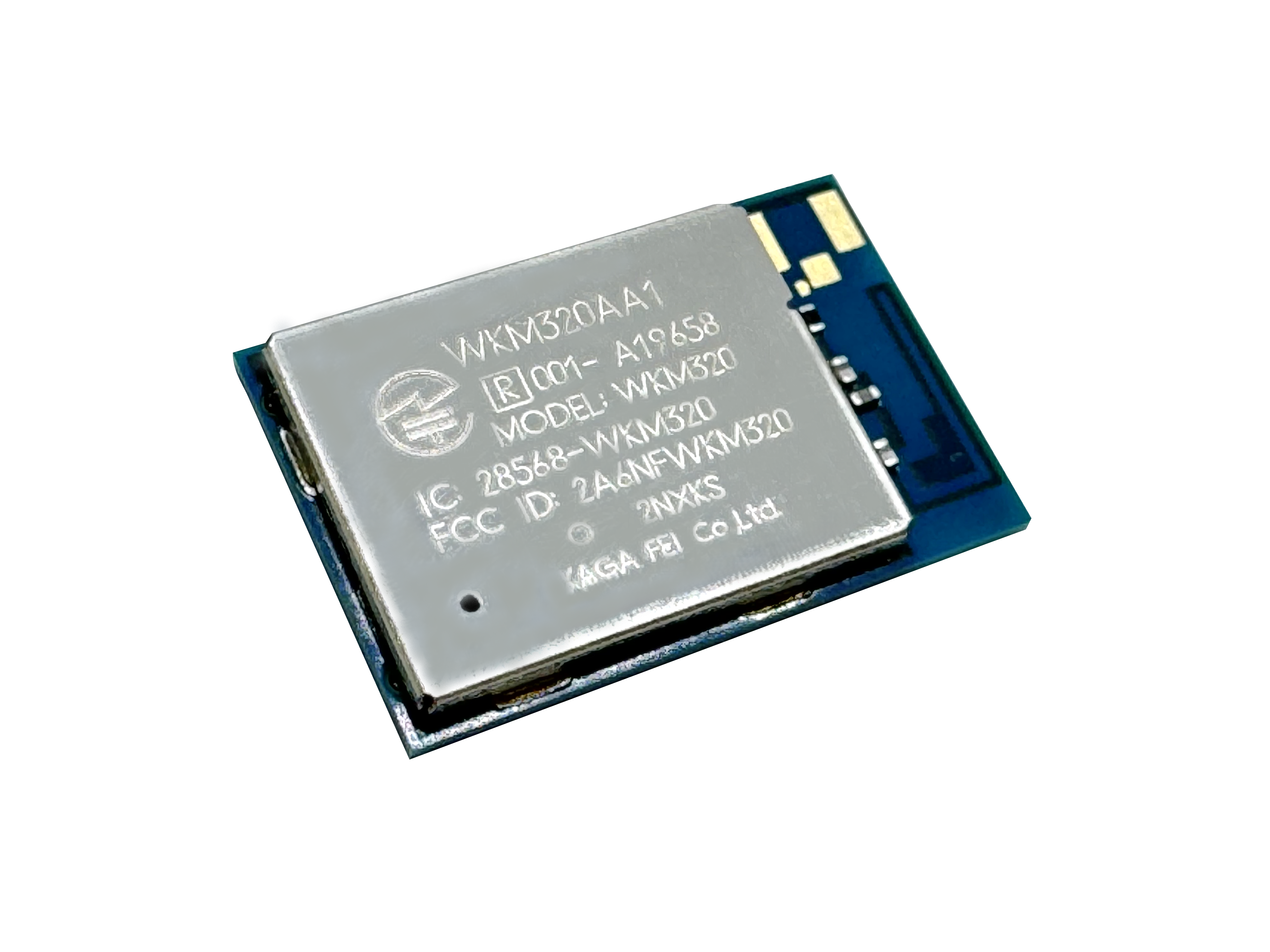

| WLAN | 88MW320 | WYSACVLAY-XZ | WKM320AA1 |
| WLAN | 88W8887 | WYSAGVDXG | WK8887AA1 |
