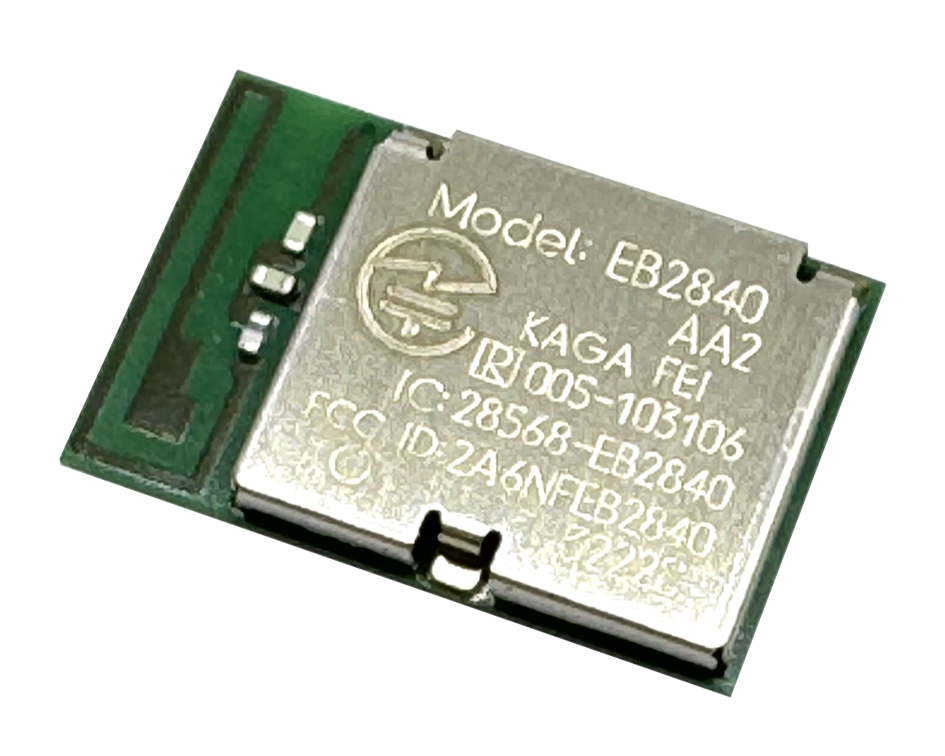

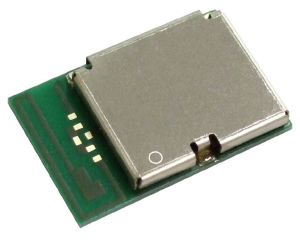

EB2840AA2
Wireless Module
Bluetooth® low energy (BLE)
Part Number
EB2840AA2
Status
Mass Production
Evaluation Board

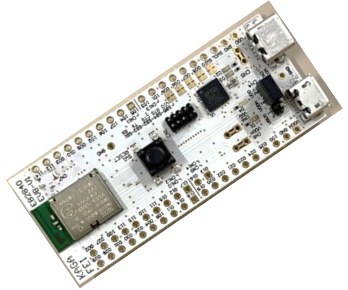

EB2840AA2-EVB
Evaluation Board for
Bluetooth® low energy module
EB2840AA2
Evaluation Kit

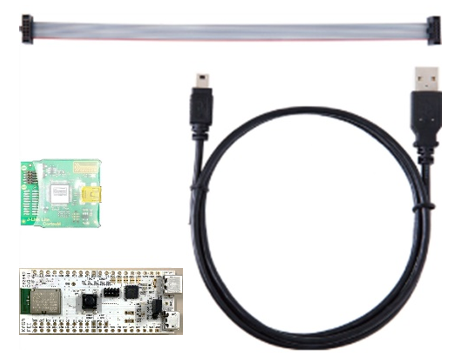

EB2840AA2-EVK
Evaluation Kit for
Bluetooth® low energy module
EB2840AA2
Key Features
Bluetooth® Version: 5.0 (support: 2M / 1M / 500k / 125kbps)
Frequency: 2402 to 2480 MHz
Output power: +8dBm typ.
Single power supply: 1.7 – 5.5V
Single Mode Bluetooth® low energy / 802.15.4 radio support
Integrated System/Sleep Clock
Integrated high performance pattern antenna
ARM® Cortex M4F 32bit processor and 1MB flash and 256KB RAM
ARM® TrustZone® Cryptocell 310 cryptographic accelerator
Outline: 10.0 x 15.4 x 2.0 mm
Interface: USB, SPI, UART, I2C, I2S, PDM and 12bit ADC,NFC-A
Bluetooth® and Japan, FCC, ISED qualified
ETSI EN 300 328 V2.2.2 conducted test report available
・ RoHS compliant / Complete Lead Free
for Detail
