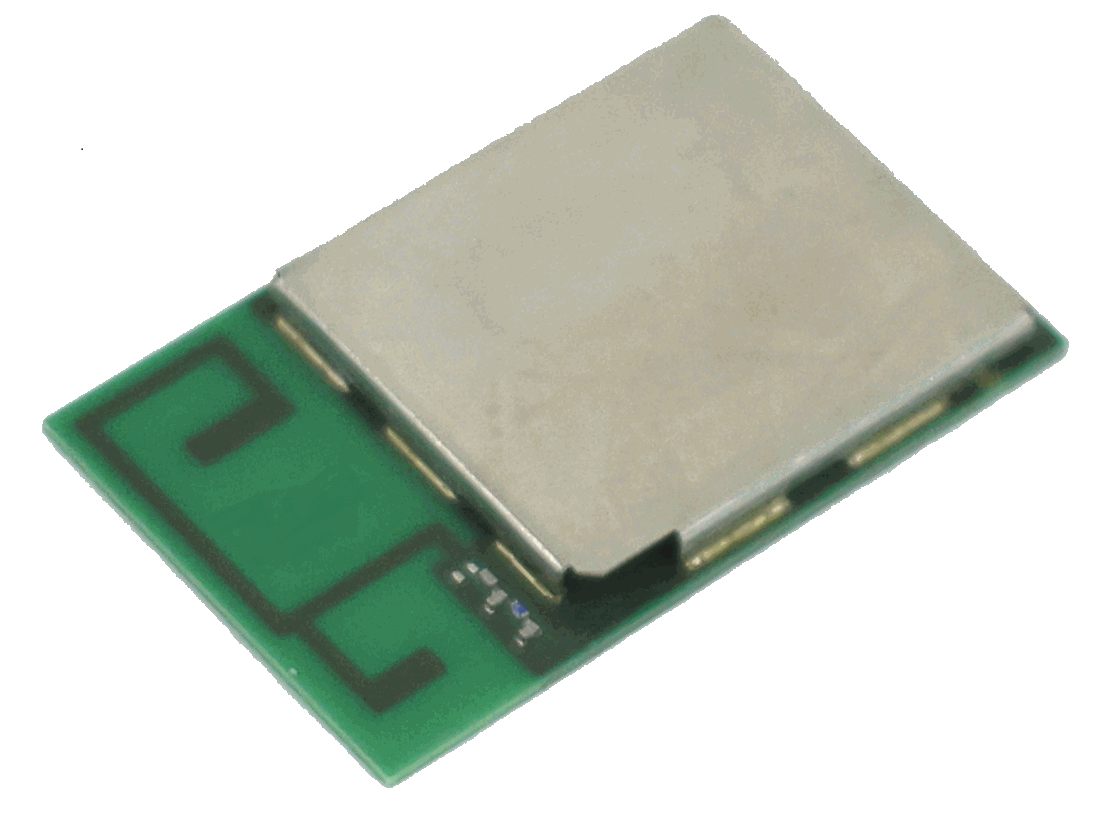

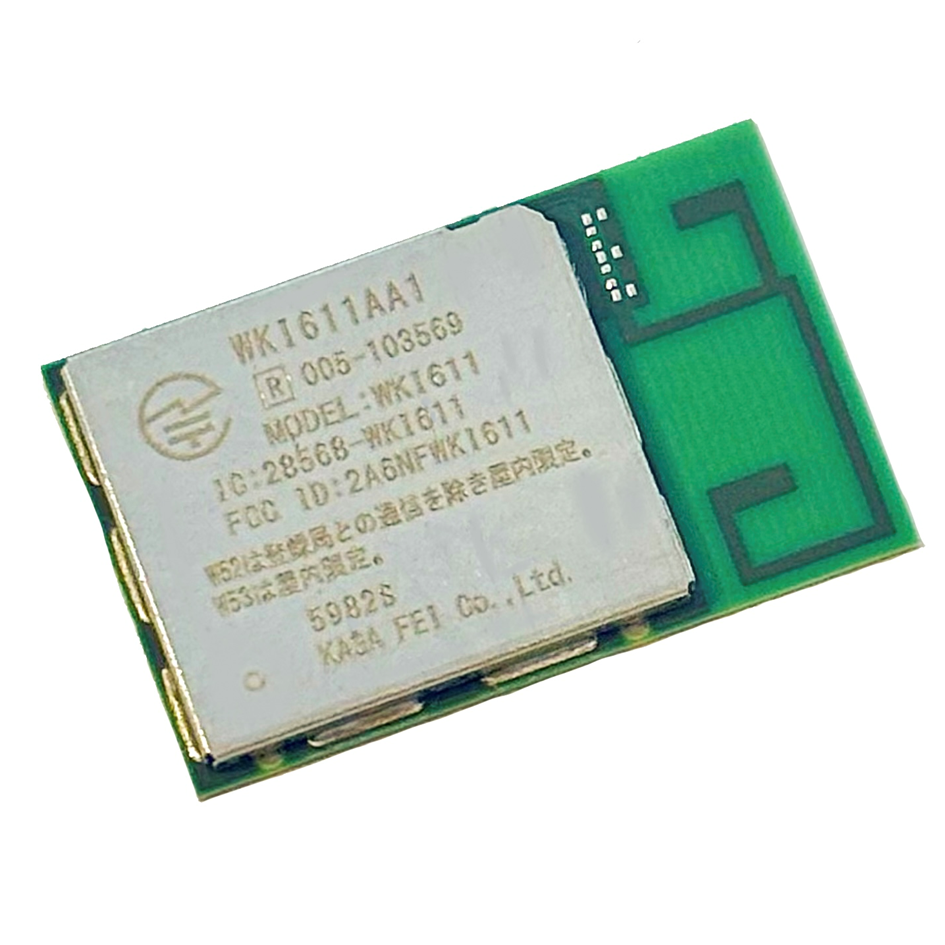

WKI611AA1
Wireless Module
Wireless LAN + Bluetooth® Module
802.11a/b/g/n/ac/ax
Part Number
WKI611AA1
Status
Under development

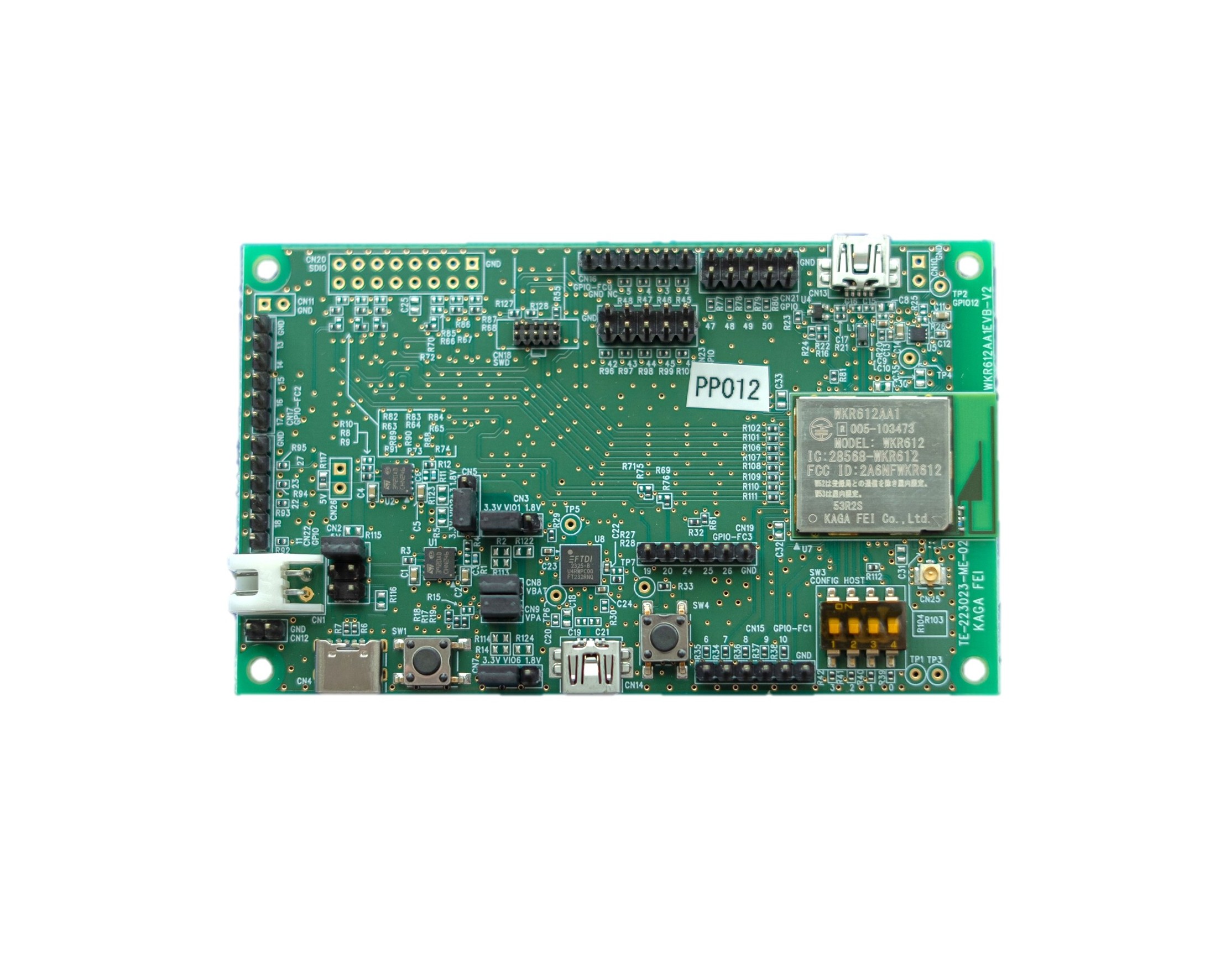

Evaluation Board
WKI611AA1-EVB
Evaluation Board for WLAN module
Evaluation Kit
WKI611AA1-EVK
Evaluation Kit for
WLAN module
Key Features
LGA SMD type module.
IEEE802.11 a/b/g/n/ac/ax conformity.
Band Width : 20/40/80MHz OFDMA, MU-MIMO.
Host Interface : SDIO 3.0 for Wi-Fi, UART for Bluetooth®.
Security: WPA3, WPA2, AES, WAPI.
BT5.4(supports Bluetooth® Low Energy). Class1 supports.
Single antenna configuration for Wi-Fi, Bluetooth®
Integrated Antenna, Diplexer, Tx/Rx switch, Filter, PA, LNA and XTAL.
Outline: 25.0 x 15.7 x2.1 mm (TBD)
Japan, FCC and ISED qualified
ETSI EN 300 328 / EN301 893 conducted test report available
RoHS Conformity
