ES2820AA2

Wireless Module
Bluetooth® low energy (BLE)

Part Number

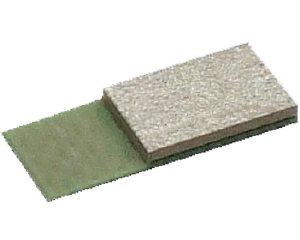

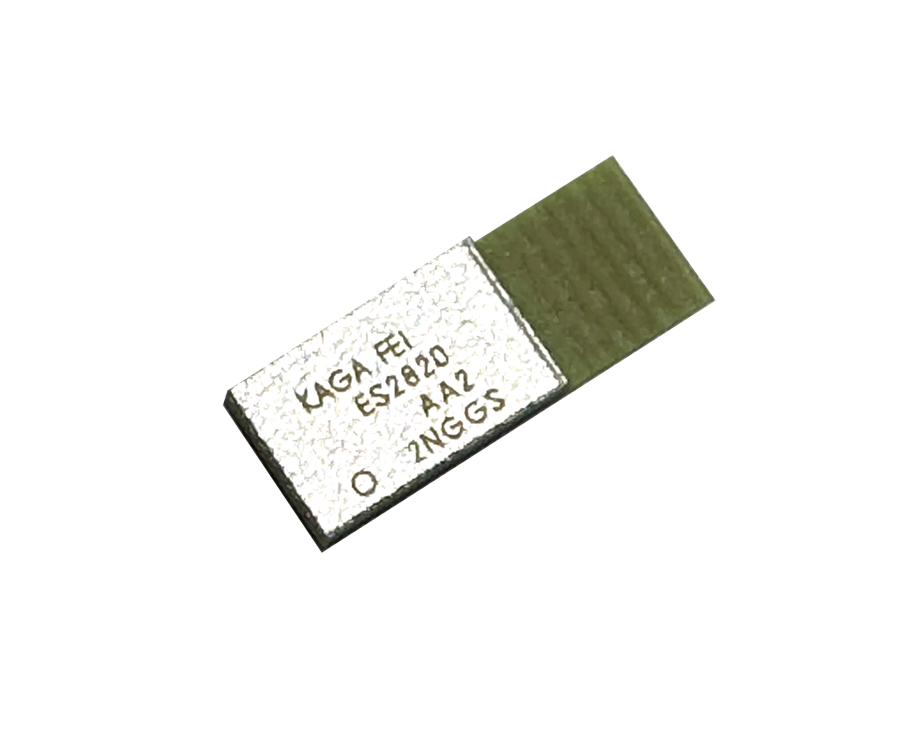

ES2820AA2

Status
Mass Production

Evaluation Board

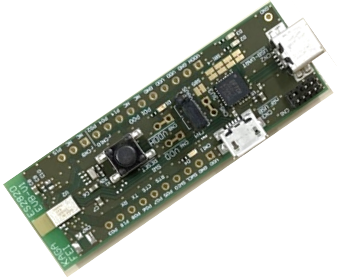

ES2820AA2-EVB

Evaluation Board for
Bluetooth® low energy module
ES2820AA2

Evaluation Kit

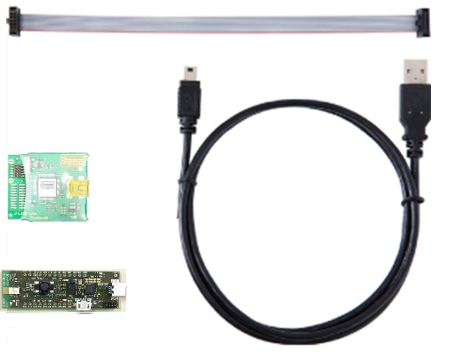

ES2820AA2-EVK

Evaluation Kit for
Bluetooth® low energy module
ES2820AA2

 Key Features

 Bluetooth® Version: 5.3 (support 2M / 1M / 500k / 125kbps / AoA / AoD)

 Frequency: 2402 to 2480 MHz

 Output power: +8dBm typ.

 Single power supply: 1.7 – 5.5V

 Operating Temperature range: -40 to 105 deg-C

 Single Mode Bluetooth® low energy / 802.15.4 radio support

 Integrated System Clock

Integrated high performance pattern antenna

 ARM® Cortex M4 32bit processor and 256KB flash and 32KB RAM

 Outline: 3.25 x 8.55 x 1.00 mm

 Interface: USB, SPI, UART and I2C

 Bluetooth® and Japan, FCC, ISED qualified

 ETSI EN 300 328 V2.2.2 conducted test report available

 RoHS compliant / Complete Lead Free

 for Detail

Document Name Version Date
Overview V1.3 2024/08/06
Data Sheet V1.1 2024/02/02
Evaluation Board/kit manual V1.0 2023/05/18
Firmware Writing manual V1.2 2024/08/09
ETSI Test Report V1.0 2023/05/12
FAQ V1.3 2024/07/26
Radio Law FAQ V1.1 2023/08/17
Module CAD Data V1.2 2024/08/07

 Sample application

Application Note Version Date
