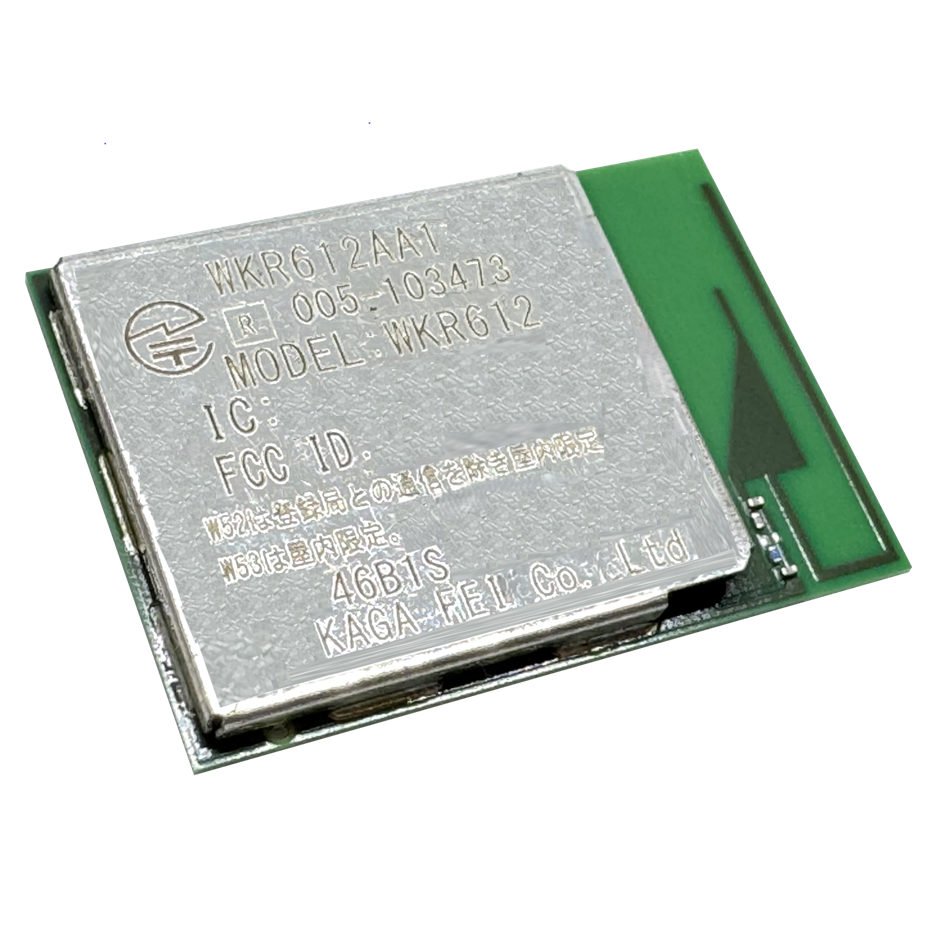

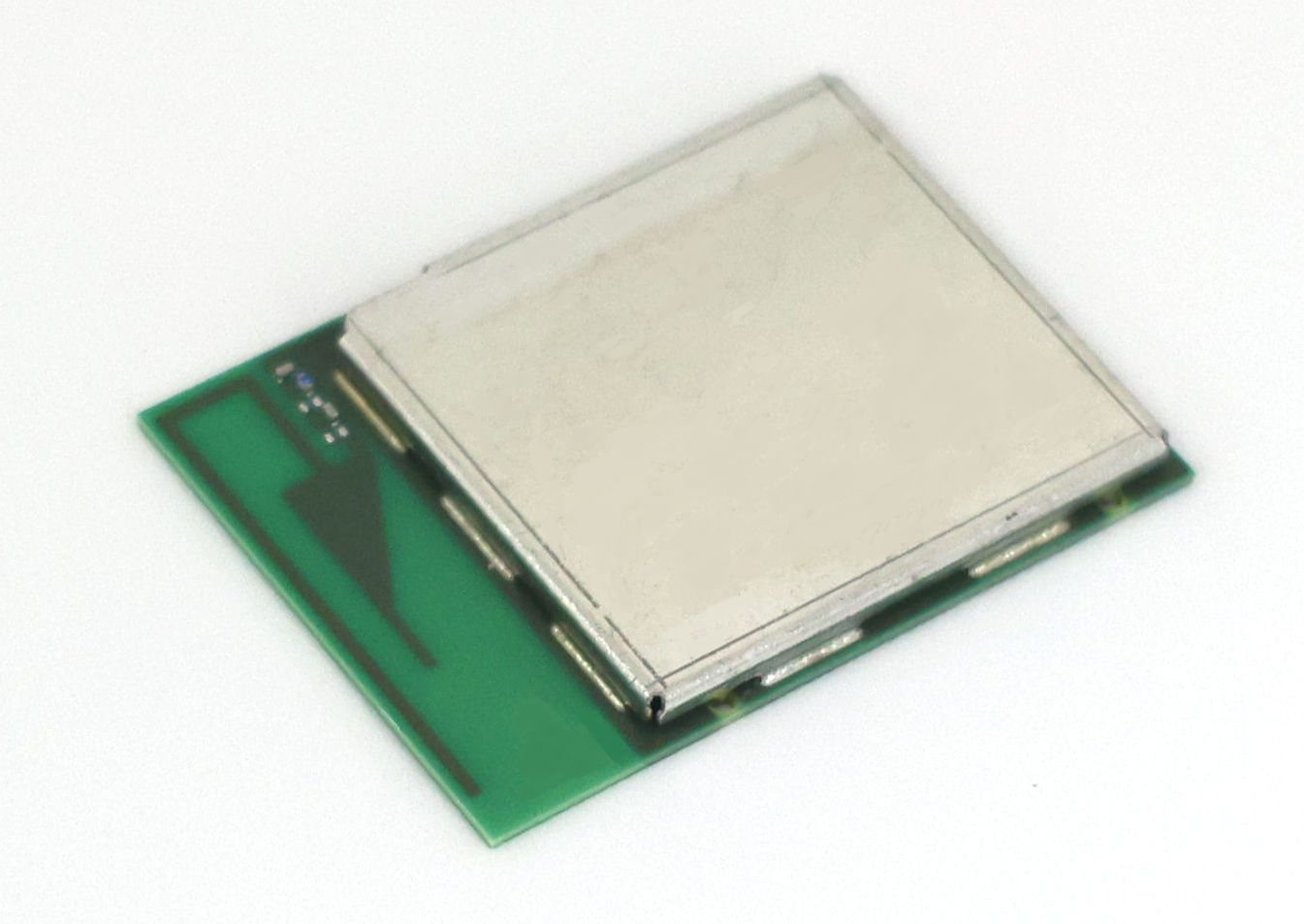

WKR612AA1
Wireless Module
MCU Embedded Wireless LAN + Bluetooth® Low Energy + 802.15.4 Module
802.11a/b/g/n/ac/ax
Part Number: WKR612AA1
Status: Mass Production

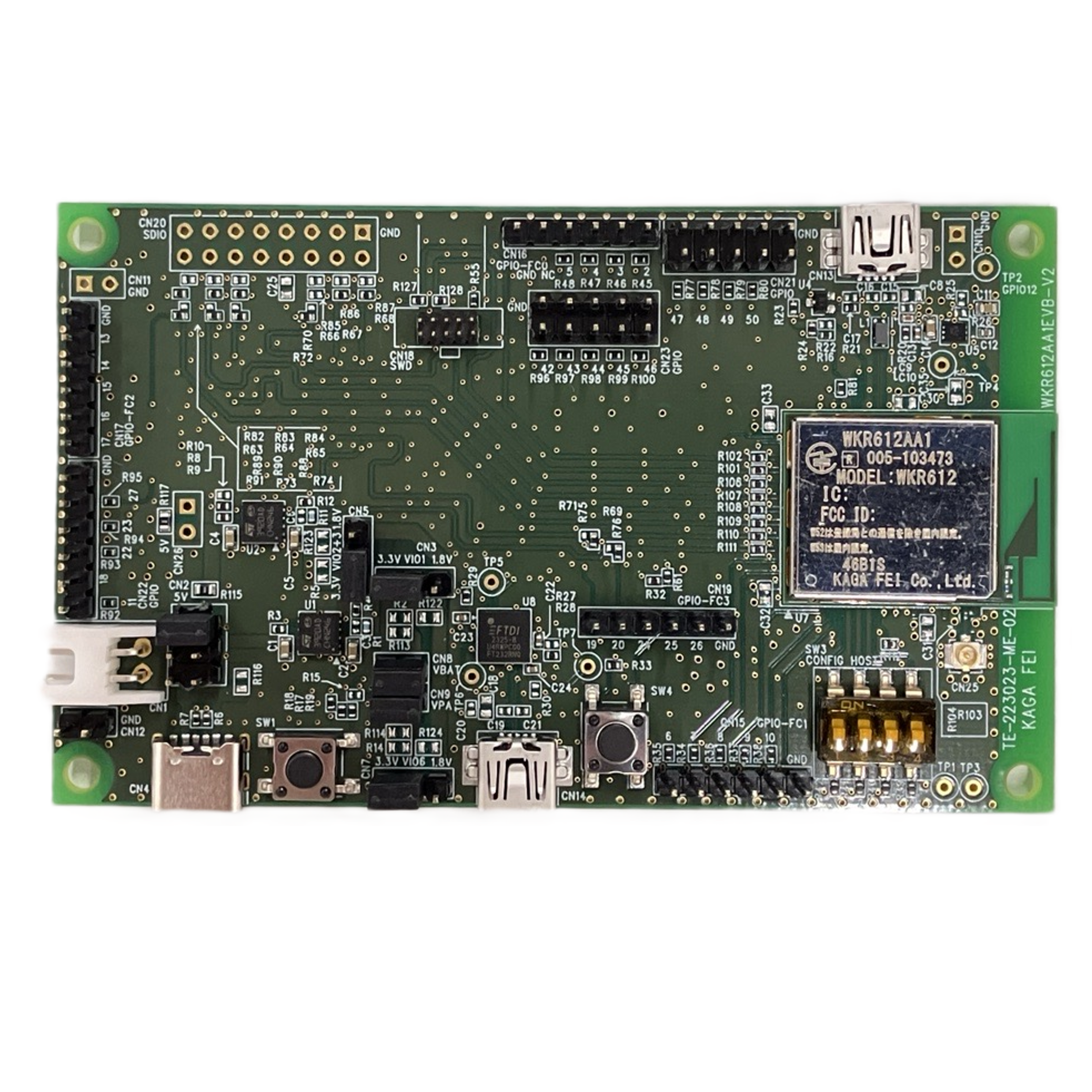

Evaluation Board
WKR612AA1-EVB
Evaluation Board for WLAN module
WKR612AA1 with mini USB interface.

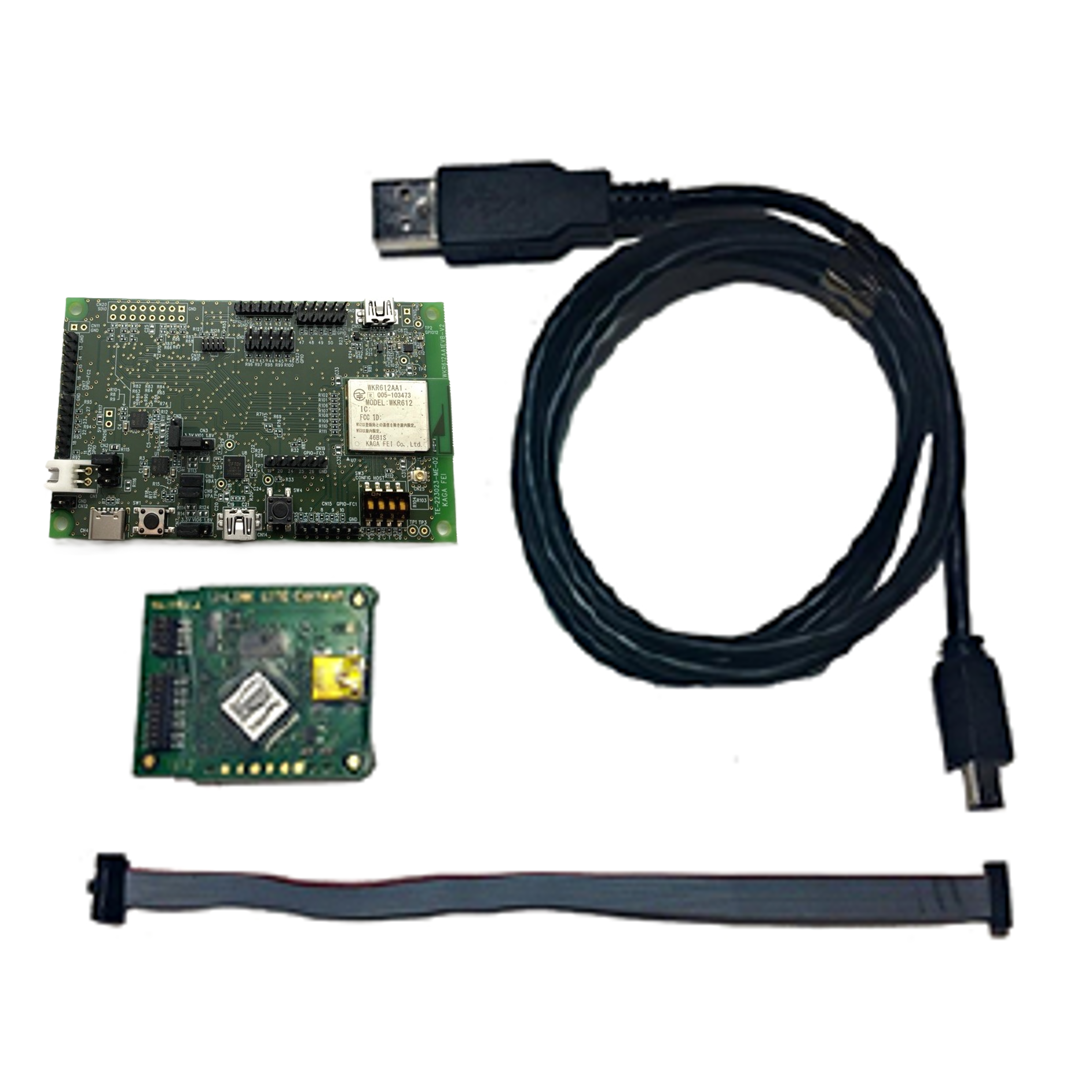

Evaluation Kit
WKR612AA1-EVK
Evaluation Kit for WLAN module
WKR612AA1 with mini USB interface.
Key Features
LGA SMD type module.
Compliant with IEEE 802.11 a/b/g/n/ac/ax.
Band Width : 20MHz OFDMA, MU-MIMO.
Interface : UART, SPI, I2C, I2S, GPIOs.
Built-in Application Processor, FLASH memory 8MByte.
Security: WPA3, WPA2, AES.
Bluetooth® Core 5.4
Bluetooth® LE (Support LE 2M, LE Coded)
802.15.4 supporting Thread.
Single antenna configuration for Wi-Fi,
Bluetooth® LE, and 802.15.4.
Integrated Antenna, Diplexer, Tx/Rx switch,
Filter, PA, LNA and X'tal.
Outline: 26.9 x 19.0 x 2.1 (Max) mm.
Japan, FCC and ISED certified.
ETSI EN 300 328 / EN301 893 conducted test report available.
RoHS Conformity.
for Detail
| Document Name | Version | Date |
|---|
Overview
|
v1.3 | 2026/03/17 |
|
Data Sheet
|
v1.5 | 2026/02/04 |
|
Application Note
|
v1.0 | 2026/03/13 |
|
Evaluation Board / Kit manual
|
v1.5 | 2025/12/01 |
|
External Antennas List
|
v1.1 | 2026/02/03 |
|
FAQ
|
v1.2 | 2026/04/16 |
|
Radio Law FAQ
|
v1.2 | 2026/03/24 |
Module CAD Data
|
v1.4 | 2026/04/06 |
