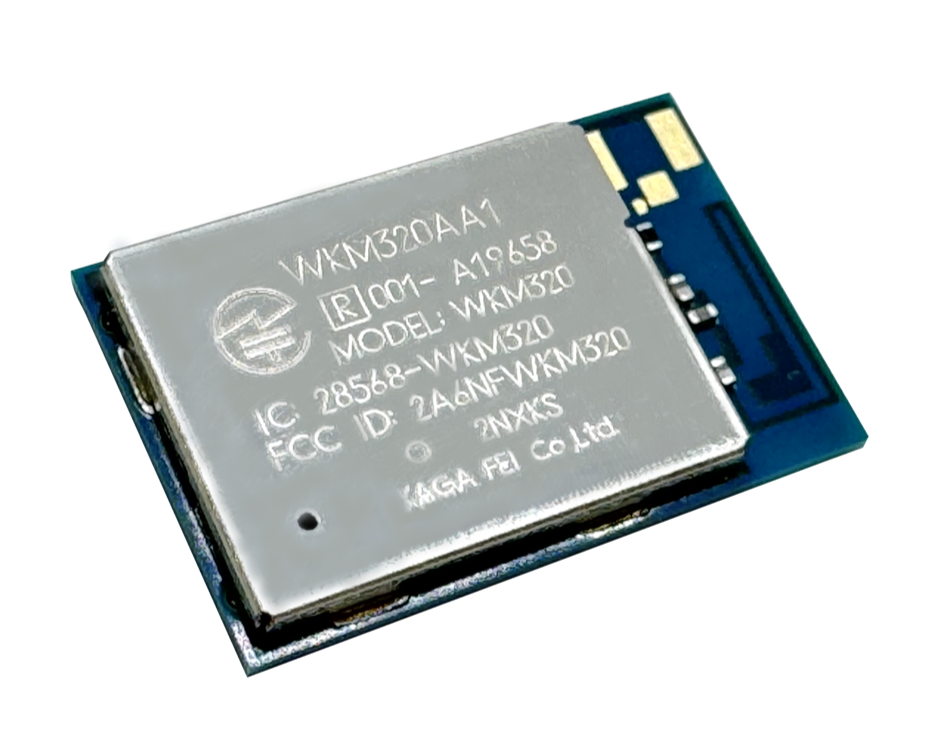

WKM320AA1
Wireless Module
MCU Embedded Wireless LAN Module 802.11b/g/n
Part Number: WKM320AA1
Status: Mass Production

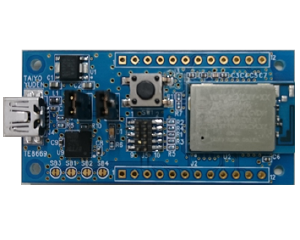

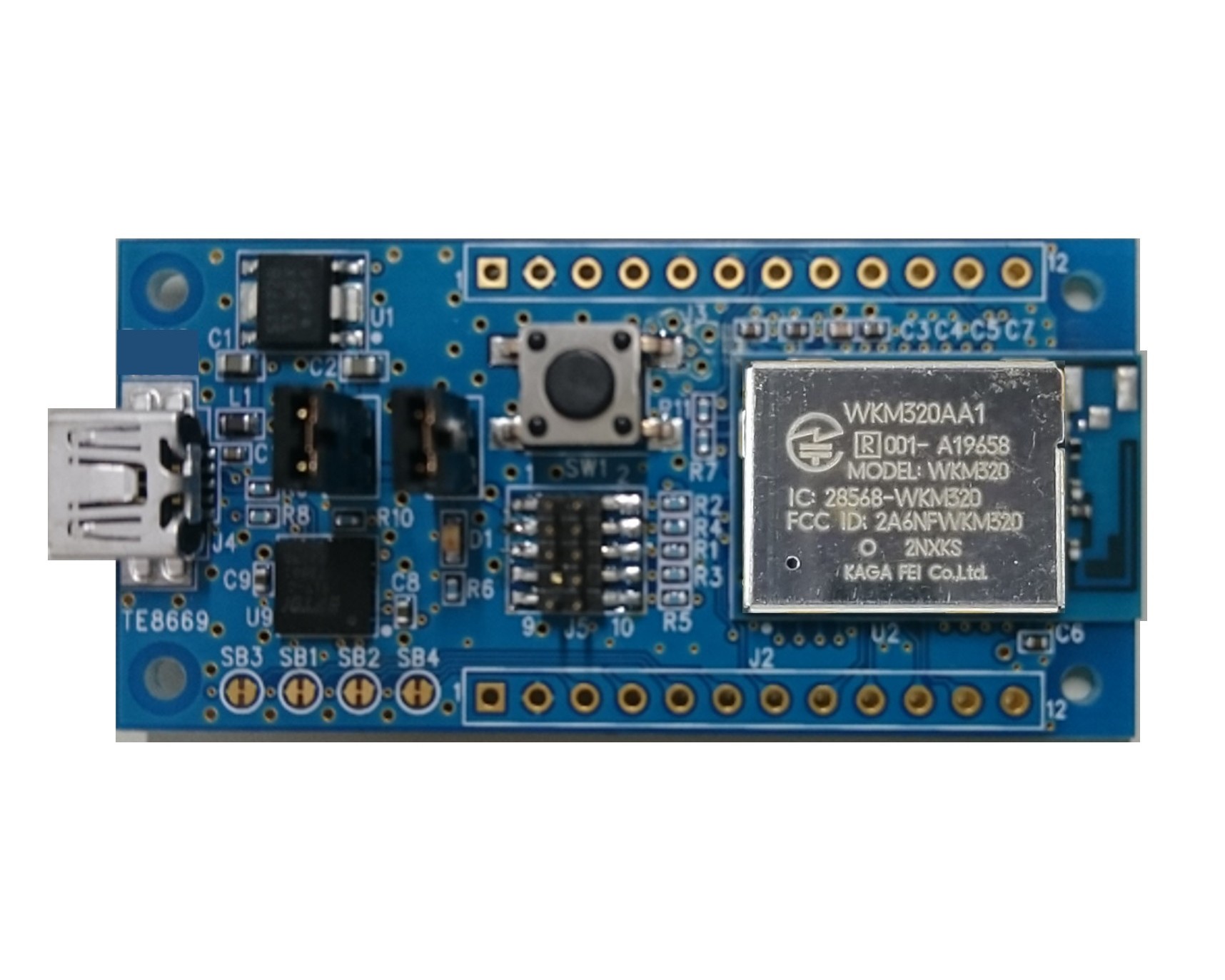

Evaluation Board
WKM320AA1-EVB
Evaluation Board for WLAN module
WKM320AA1 with mini USB interface.

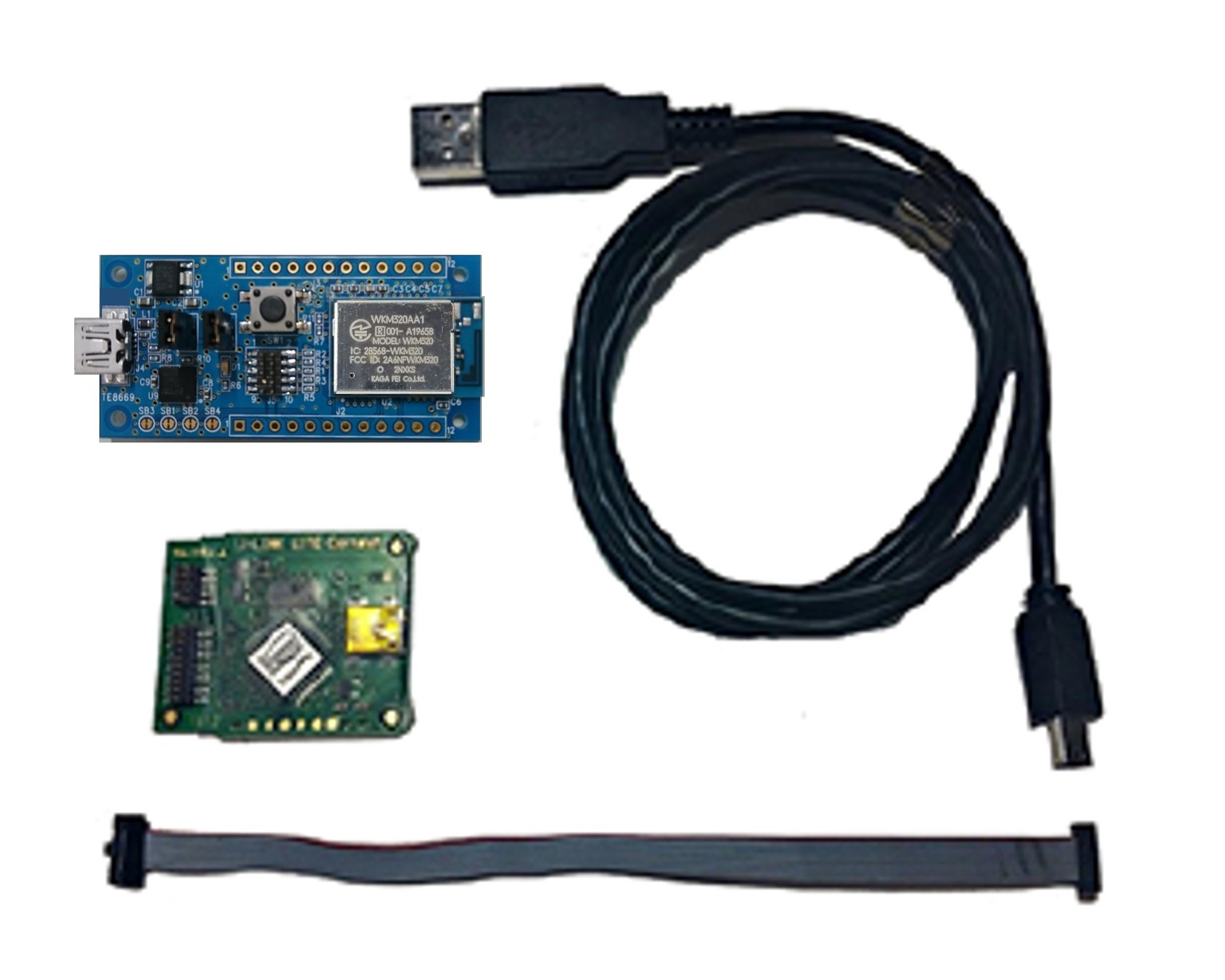

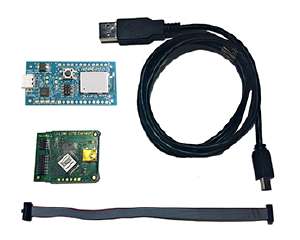

Evaluation Kit
WKM320AA1-EVK
Evaluation Kit for WLAN module
WKM320AA1 with mini USB interface.
Key Features
LGA SMD type module.
Compliant with IEEE 802.11 b/g/n.
Channel Number : 1 to 11 channel (11bgn)
Interface : UART, SPI
Built-in Application Processor, WLAN front end,
Flash Memory, X'tal, Power circuits
Security: WPA-2 using AES/CCMP along
with legacy security features
Advanced Wi-Fi features: 802.11n, Micro-AP mode,
client mode, WPS
Software: HTTP client, HTTPs client, WPS,
IEEE power save/Deep sleep, Firmware update
Outline: 21.4 x 14.0 x 2.4 (Max) mm
Package: Metal case package
Japan, FCC and ISED certified
ETSI EN 300 328 conducted test report available
RoHS Conformity
for Detail
| Document Name | Version | Date |
|---|
Overview
|
v1.1 | 2023/10/02 |
|
Data Sheet
|
v1.0 | 2023/08/17 |
|
Evaluation Board / Kit manual
|
v1.0 | 2023/08/30 |
ETSI Test Report
|
v1.0 | 2023/05/12 |
|
FAQ
|
v1.2 | 2026/04/16 |
|
Radio Law FAQ
|
v1.2 | 2026/03/24 |
|
Module CAD Data
|
v1.4 | 2026/04/06 |
