EB2840MA2
Wireless Module
Bluetooth® Low Energy

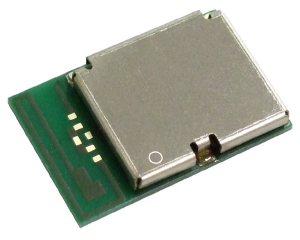

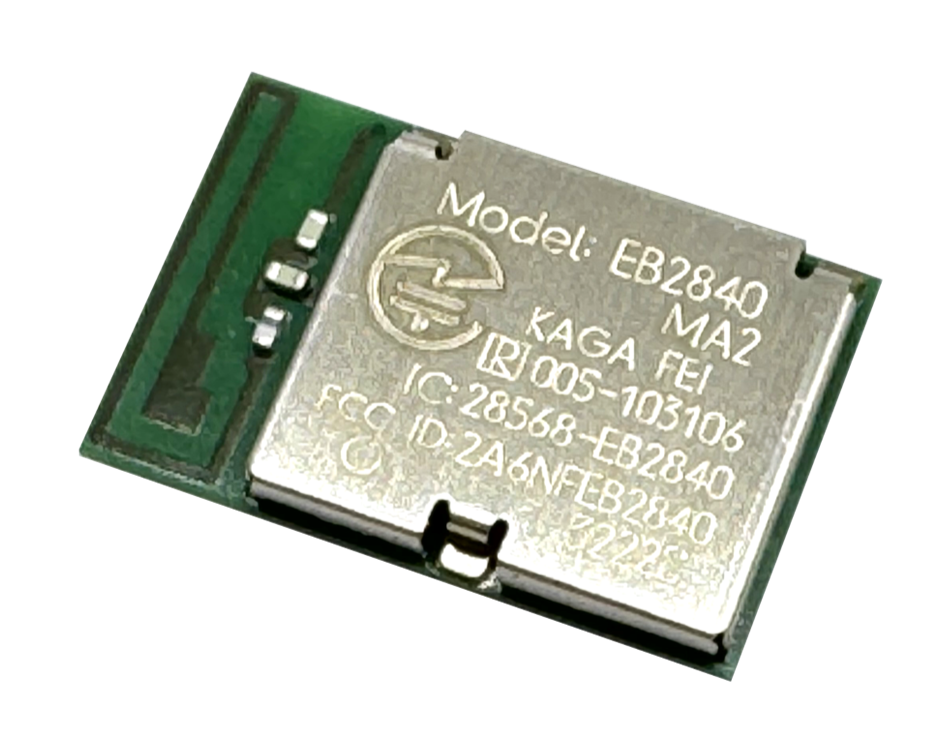

Part Number: EB2840MA2
Status: Mass Production
Evaluation Board

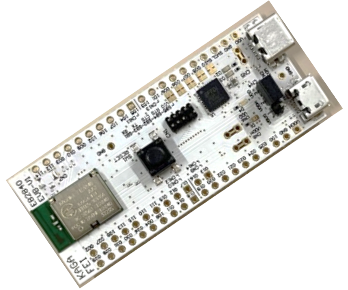

EB2840MA2-EVB
Evaluation Board for
Bluetooth® Low Energy module
EB2840MA2
Key Features
Bluetooth® Core 5.0 (Support LE 2M, LE Coded)
Frequency: 2402 to 2480 MHz
Output power: +8dBm typ.
Single power supply: 1.7 – 5.5V
Single Mode Bluetooth® LE
Integrated System/Sleep Clock
Integrated high performance pattern antenna
ARM® Cortex M4F 32bit processor
Software Embedded by KAGA FEI
Interface: USB, SPI, UART, ADC
Outline: 10.0×15.4×2.0 mm
Bluetooth® qualified and Japan, FCC, ISED certified
ETSI EN 300 328 V2.2.2 conducted test report available
RoHS compliant / Complete Lead Free
for Detail
