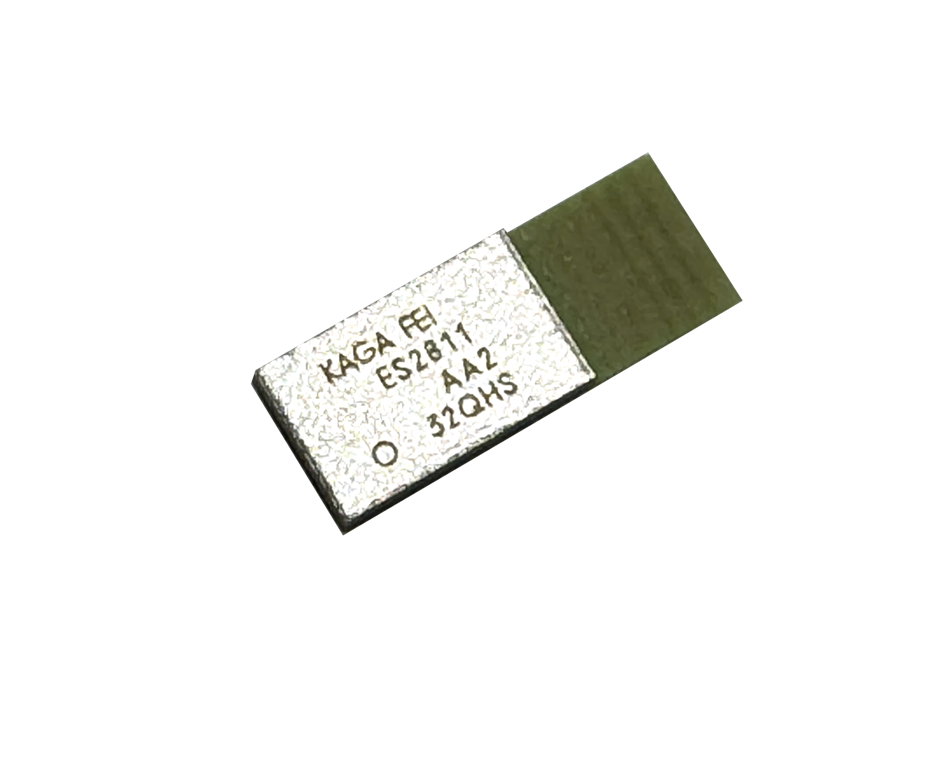

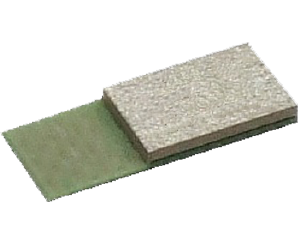

ES2811AA2
Wireless Module
Bluetooth® low energy (BLE)
Part Number
ES2811AA2
Status
Mass Production
Evaluation Board
ES2811AA2-EVB
Evaluation Board for
Bluetooth® low energy module
ES2811AA2

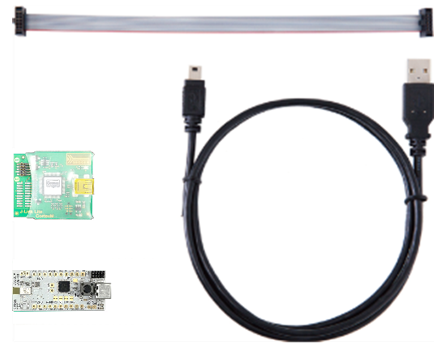

Evaluation Kit
ES2811AA2-EVK
Evaluation Kit for
Bluetooth® low energy module
ES2811AA2
Key Features
Bluetooth® Version: 5.2 (support 2M / 1M / 500k / 125kbps / AoA / AoD)
Frequency: 2402 to 2480 MHz
Output power: +4dBm typ.
Single power supply: 1.7 – 3.6V
Single Mode Bluetooth® low energy / 802.15.4 radio support
Integrated System Clock
Integrated high performance ceramic chip antenna
ARM® Cortex M4 32bit processor and 192KB flash and 24KB RAM
Outline: 3.25 x 8.55 x 1.00 mm
Interface: SPI, UART, I2C, PDM and 12bit ADC
Bluetooth® and Japan, FCC, ISED qualified
ETSI EN 300 328 V2.2.2 conducted test report available
RoHS compliant / Complete Lead Free
for Detail
| Document Name | Version | Date |
|---|
Overview
|
V1.3 | 2024/08/06 |
|
Data Sheet
|
V1.0 | 2023/08/06 |
|
Evaluation Board/kit manual
|
V1.0 | 2023/07/21 |
|
Firmware Writing manual
|
V1.2 | 2024/08/09 |
ETSI Test Report
|
V1.0 | 2023/05/25 |
|
FAQ
|
V1.3 | 2024/07/26 |
|
Radio Law FAQ
|
V1.1 | 2023/08/17 |
|
Module CAD Data
|
V1.2 | 2024/08/07 |
