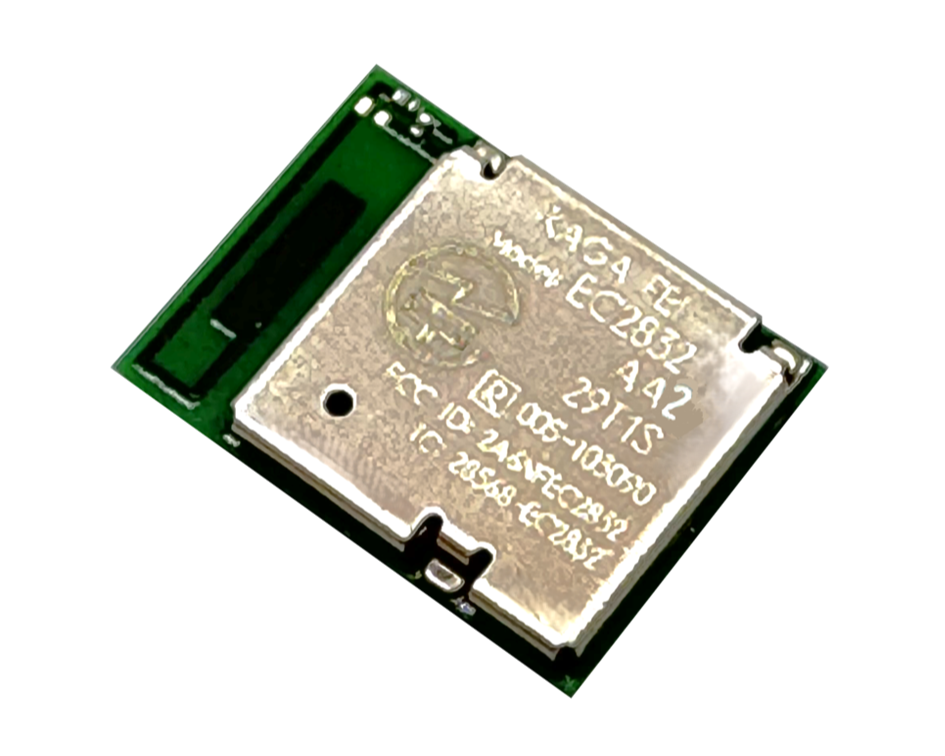

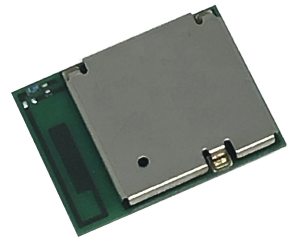

EC2832AA2

Wireless Module
Bluetooth® low energy (BLE)

Part Number
EC2832AA2

Status
Mass Production

Evaluation Board
EC2832AA2-EVB

Evaluation Board for
Bluetooth® low energy module
EC2832AA2

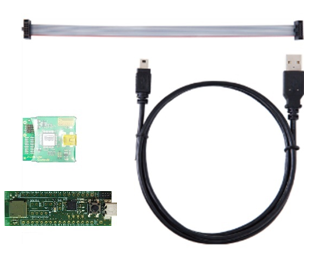

Evaluation Kit
EC2832AA2-EVK

Evaluation Kit for
Bluetooth® low energy module
EC2832AA2

 Key Features

 Bluetooth® Version: 5.0 (2Mbps mode)

 Frequency: 2402 to 2480 MHz

 Output power: +4dBm typ.

Single power supply: 1.7 – 3.6V

Single Mode Bluetooth® low energy

Integrated System/Sleep Clock

Integrated high performance pattern antenna

 ARM Cortex M4F 32bit processor and 512KB flash and 64KB RAM

 Outline: 9.6 x 12.9 x 2.0 mm with 1mm pad pitch

Interface: SPI, UART, I2C, I2S, PDM and 12bit ADC, NFC-A

 Bluetooth® and Japan, FCC, ISED qualified

 ETSI EN 300 328 V2.2.2 conducted test report available

 RoHS compliant / Complete Lead Free

 for Detail
