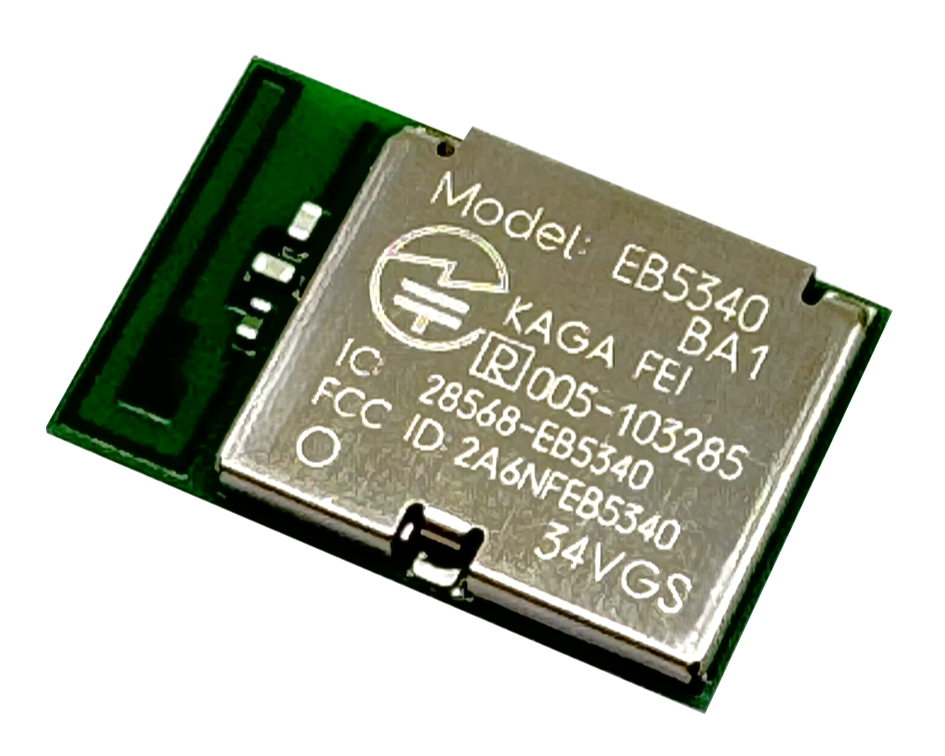

EB5340BA1
Wireless Module
Bluetooth® Low Energy
Part Number: EB5340BA1
Status: Mass Production
Evaluation Board

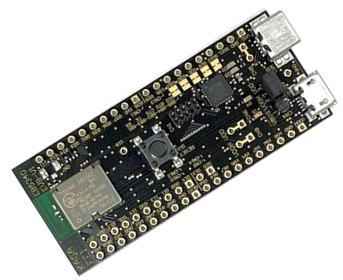

EB5340BA1-EVB
Evaluation Board for
Bluetooth® Low Energy module
EB5340BA1.

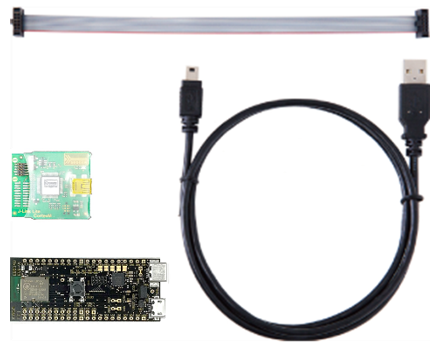

Evaluation Kit
EB5340BA1-EVK
Evaluation Kit for
Bluetooth® Low Energy module
EB5340BA1.
Key Features
Bluetooth® Core 5.4
(Support LE 2M, LE Coded, Direction Finding)
Frequency: 2402 to 2480 MHz
Output power: +3dBm typ.
Single power supply: 1.7 – 5.5V
Single Mode Bluetooth® LE / 802.15.4 radio support
Integrated System/Sleep Clock
Integrated high performance pattern antenna
ARM® Cortex M33 for Application core / 1MB Flash & 512kB RAM
ARM® Cortex M33 for Network core / 256kB Flash 64kB RAM
ARM® TrustZone® Cryptocell 312 cryptographic accelerator
Outline: 10.0 x 15.4 x 2.0 mm
Interface: USB, SPI, UART, I2C, I2S, PDM and 12bit ADC,NFC-A
Bluetooth® qualified and Japan, FCC, ISED certified
ETSI EN 300 328 V2.2.2 conducted test report available
RoHS compliant / Complete Lead Free
for Detail
