ES2820AA2
Wireless Module
Bluetooth® Low Energy

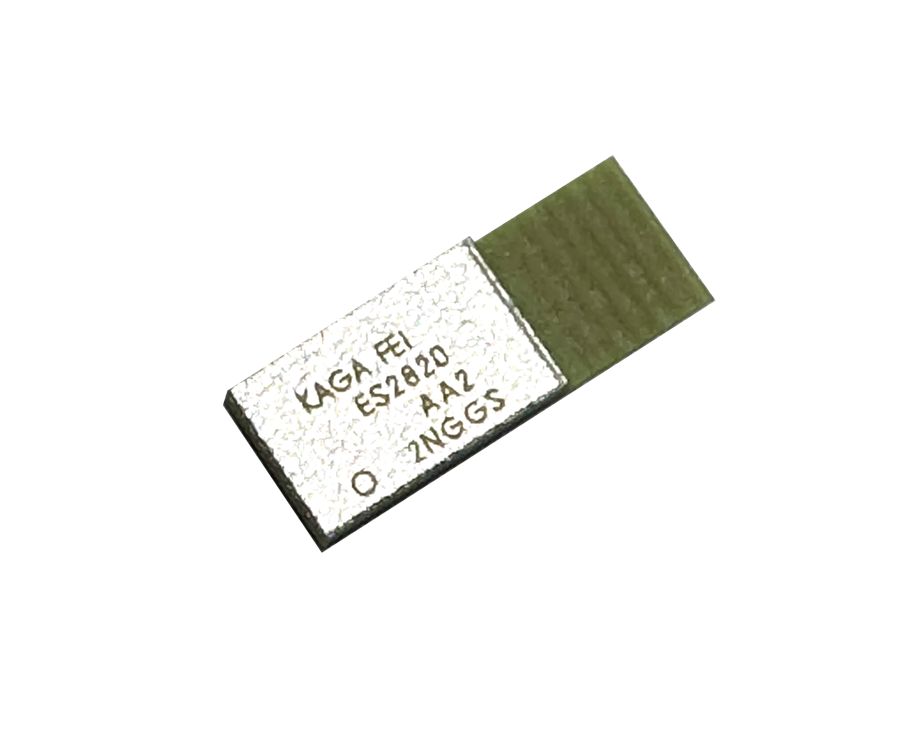

Part Number: ES2820AA2
Status: Mass Production
Evaluation Board
ES2820AA2-EVB
Evaluation Board for
Bluetooth® Low Energy module
ES2820AA2
Evaluation Kit
ES2820AA2-EVK
Evaluation Kit for
Bluetooth® Low Energy module
ES2820AA2
Key Features
Bluetooth® Core 5.3 (Support LE 2M, LE Coded, Direction Finding)
Frequency: 2402 to 2480 MHz
Output power: +8dBm typ.
Single power supply: 1.7 – 5.5V
Operating Temperature range: -40 to 105 deg-C
Single Mode Bluetooth® LE / 802.15.4 radio support
Integrated System Clock
Integrated high performance pattern antenna
ARM® Cortex M4 32bit processor and 256KB flash and 32KB RAM
Outline: 3.25 x 8.55 x 1.00 mm
Interface: USB, SPI, UART and I2C
Bluetooth® qualified and Japan, FCC, ISED certified
ETSI EN 300 328 V2.2.2 conducted test report available
RoHS compliant / Complete Lead Free
for Detail
