Bluetooth® low energy Sensing Evaluate Solution (Arduino Wrapper)
Sensor Socket

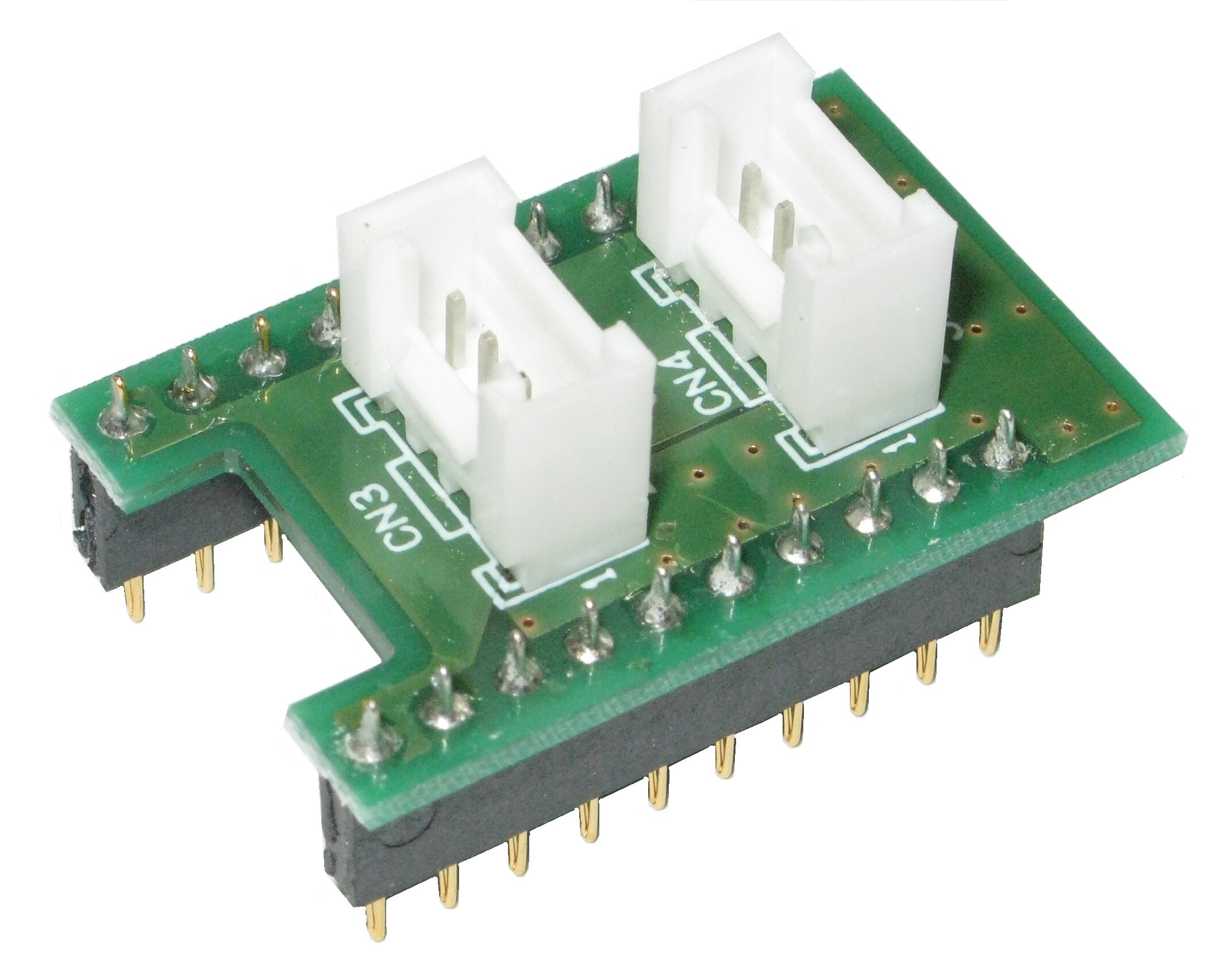

EY1SENSOR-SKT
Sensor Socket for Bluetooth® low energy Sensing Evaluate Solution
Description

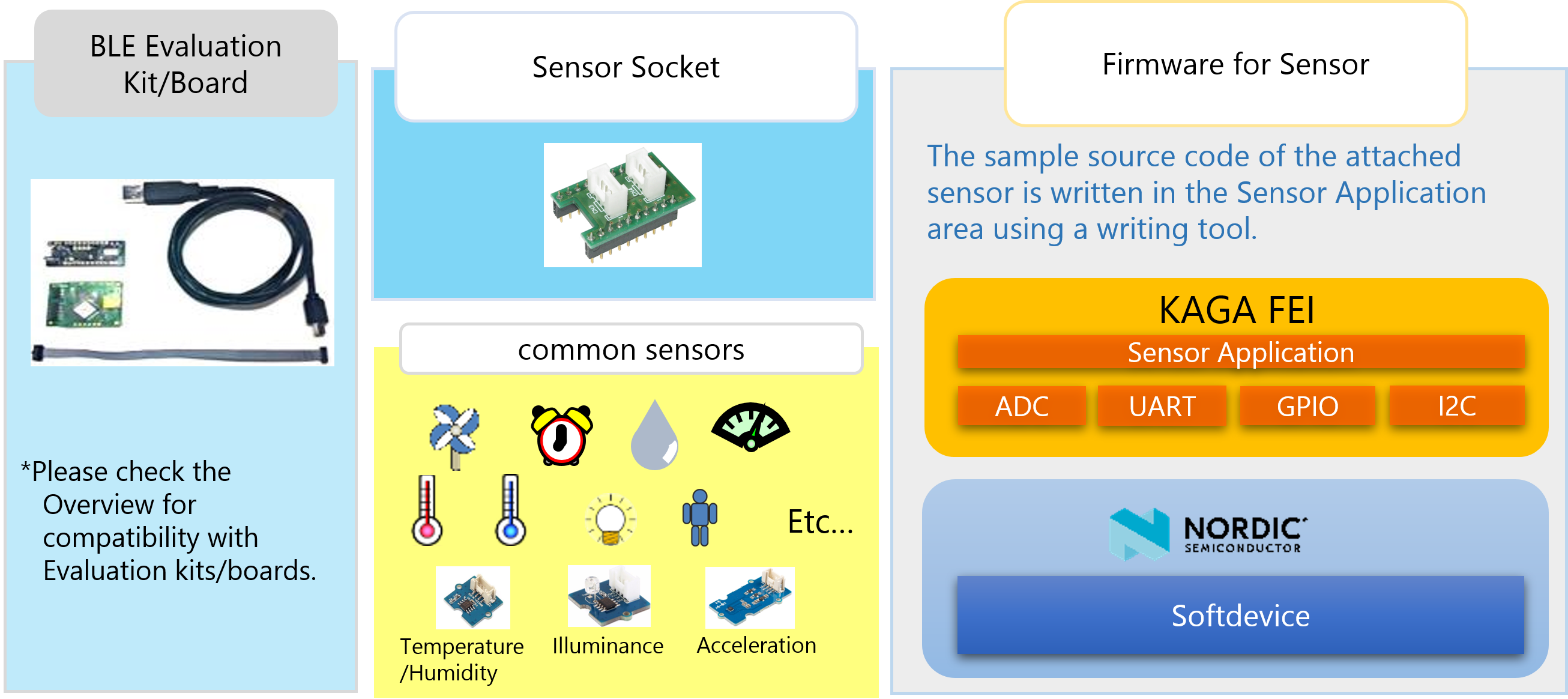

This solution contains a sensor socket "EY1SENSOR-SKT", Bluetooth® low energy evaluation board/kit, common Sensors and firmware provided by our company.
These can be purchased from online distributors. This products can use various sensors by using BLE Assessment Board, incorporating the Arduino driver file corresponding to the purchased sensor into the project, and compiling it.
This product provides the source code of the application for Bluetooth® low energy Module compatible with Arduino Wrapper, and the application for smartphones and tablets.

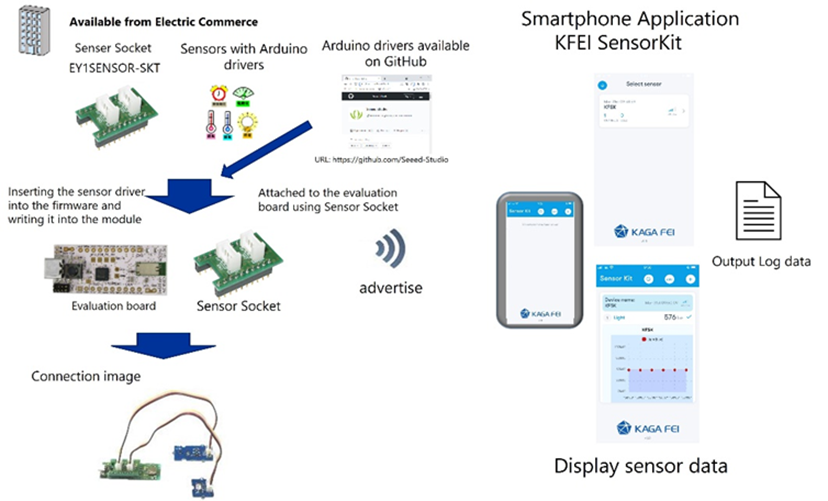

Image of Use
Documentation
| Document Name | Version | Date |
|---|
Overview
|
V1.2 | 2024/04/12 |
|
Sensor Node Development Arduino Wrapper Manual
|
V1.1 | 2024/01/26 |
|
KFEI SensorKit Operation Manual
|
V1.1 | 2024/03/25 |
|
BLE Developer Manual
|
TBD | TBD |
Sample beacon firmware
| Evaluation Board | Version | Date |
|---|
EJ2840AA2-EVB
|
V1.0 | 2023/06/20 |
|
ED2833AA2-EVB
|
V1.0 | 2024/01/23 |
|
EJ2833AA2-EVB
|
V1.0 | 2024/01/23 |
|
EC2832AA2-EVB
|
V1.0 | 2023/06/20 |
|
ES2832AA2-EVB
|
V1.0 | 2023/06/20 |
|
EC2820AA2-EVB
|
V1.0 | 2024/01/23 |
|
ES2820AA2-EVB
|
V1.0 | 2024/01/23 |
|
ES2811AA2-EVB
|
V1.0 | 2023/06/20 |
|
EC2811AA2-EVB
|
V1.0 | 2023/06/20 |
|
EC2810AA2-EVB
|
V1.0 | 2023/06/20 |
|
ES2810AA2-EVB
|
V1.0 | 2023/06/20 |
Application
| Application Note | Version | Date |
|---|
Supported Evaluation Boards
|
Board Part No. |
||||
|
Soc |
nRF52840 |
nRF52833 |
nRF52833 |
nRF52832 |
|
Board Size[mm] |
19.4×44.2×8.1 |
19.8×60.0×11.6 |
19.4×44.2×8.1 |
19.8×60.0×8.1 |
|
Module Size[mm] |
5.1×11.3×1.3 |
9.6×12.9×2.0 |
5.1×11.3×1.3 |
9.6×12.9×2.0 |
|
Board I/F |
UART |
USB,UART |
UART |
UART |
|
Module I/O |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
USB,SPI,UART, I2C, I2S, PDM and 12bit ADC |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
|
Softdevice |
S140 |
S113 |
S113 |
S132 |
|
Remark |
Long Range |
Long Range |
Long Range |
|
Board Part No. |
||||
|
Soc |
nRF52832 |
nRF52832 |
nRF52820 |
nRF52820 |
|
Board Size[mm] |
19.4×44.2×8.1 |
19.4×44.2×8.1 |
19.8×60.0×11.6 |
19.8×60.0×11.6 |
|
Module Size[mm] |
5.1×11.3×1.3 |
3.25×8.55×0.85 |
9.6×12.9×2.0 |
3.25×8.55×1.00 |
|
Board I/F |
UART |
UART |
USB,UART |
USB,UART |
|
Module I/O |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
USB,SPI, UART and I2C |
USB,SPI, UART and I2C |
|
Softdevice |
S132 |
S132 |
S112 |
S112 |
|
Remark |
Long Range |
Long Range |
|
Board Part No. |
||||
|
Soc |
nRF52811 |
nRF52811 |
nRF52810 |
nRF52810 |
|
Board Size[mm] |
19.8×60.0×8.1 |
19.4×44.2×8.1 |
19.8×60.0×8.1 |
19.4×44.2×8.1 |
|
Module Size[mm] |
9.6×12.9×2.0 |
3.25×8.55×1.00 |
9.6×12.9×2.0 |
3.25×8.55×1.00 |
|
Board I/F |
UART |
UART |
UART |
UART |
|
Module I/O |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
SPI,UART, I2C, PDM and 12bit ADC |
SPI,UART, I2C, PDM and 12bit ADC |
SPI,UART, I2C, PDM and 12bit ADC |
|
Softdevice |
S112 |
S112 |
S112 |
S112 |
|
Remark |
Long Range |
Long Range |
