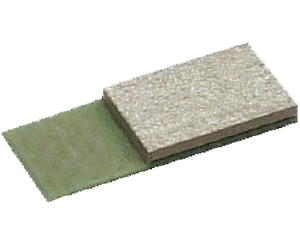

ES2832AA2
Wireless Module
Bluetooth® low energy (BLE)
Part Number
ES2832AA2
Status
Mass Production

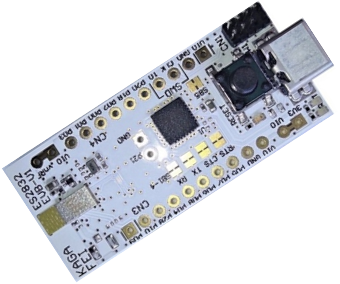

Evaluation Board
ES2832AA2-EVB
Evaluation Board for
Bluetooth® low energy module
ES2832AA2

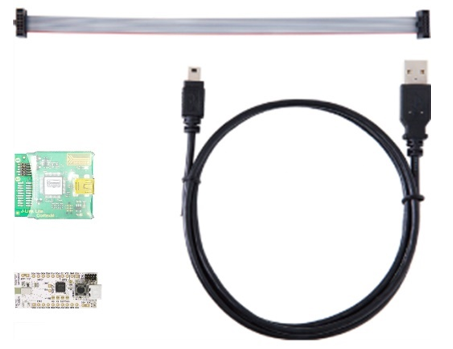

Evaluation Kit
ES2832AA2-EVK
Evaluation Kit for
Bluetooth® low energy module
ES2832AA2
Key Features
Bluetooth® Core 5.0 (LE 2M mode)
Frequency: 2402 to 2480 MHz
Output power: +4dBm typ.
Single power supply: 1.7 – 3.6V
Single Mode Bluetooth® Low Energy
Integrated System Clock
Integrated high performance pattern antenna
ARM Cortex M4F 32bit processor and 512KB flash and 64KB RAM
Interface: SPI, UART, I2C, I2S, PDM and 12bit ADC, NFC-A
Outline: 3.25 x 8.55 x 0.85 mm
Bluetooth® qualified and Japan, FCC, ISED certified
Complies with standards required by RED (2014/53/EU)
ETSI EN 300 328 V2.2.2 conducted test report available
RoHS compliant / Complete Lead Free
for Detail
| Document Name | Version | Date |
|---|
Overview
|
V1.3 | 2024/08/06 |
|
Data Sheet
|
V1.2 | 2025/07/29 |
|
Evaluation Board/Kit manual
|
V1.1 | 2023/05/15 |
|
Firmware Writing manual
|
V1.1 | 2024/08/09 |
ETSI Test Report
|
V1.0 | 2023/05/25 |
|
EU_Declaration_of_Conformity
|
- | 2025/07/30 |
|
FAQ
|
V1.1 | 2024/07/26 |
|
Radio Law FAQ
|
V1.1 | 2023/08/17 |
|
Module CAD Data
|
V1.2 | 2024/08/07 |
Sample application
| Application Note | Version | Date |
|---|
|
Device Firmware Update Sample application manual
|
V1.0 | 2023/03/31 |
|
Device Firmware Updatesample application
|
V1.0 | 2023/03/31 |
