Bluetooth® low energy Sensing Evaluate Solution (Basic)

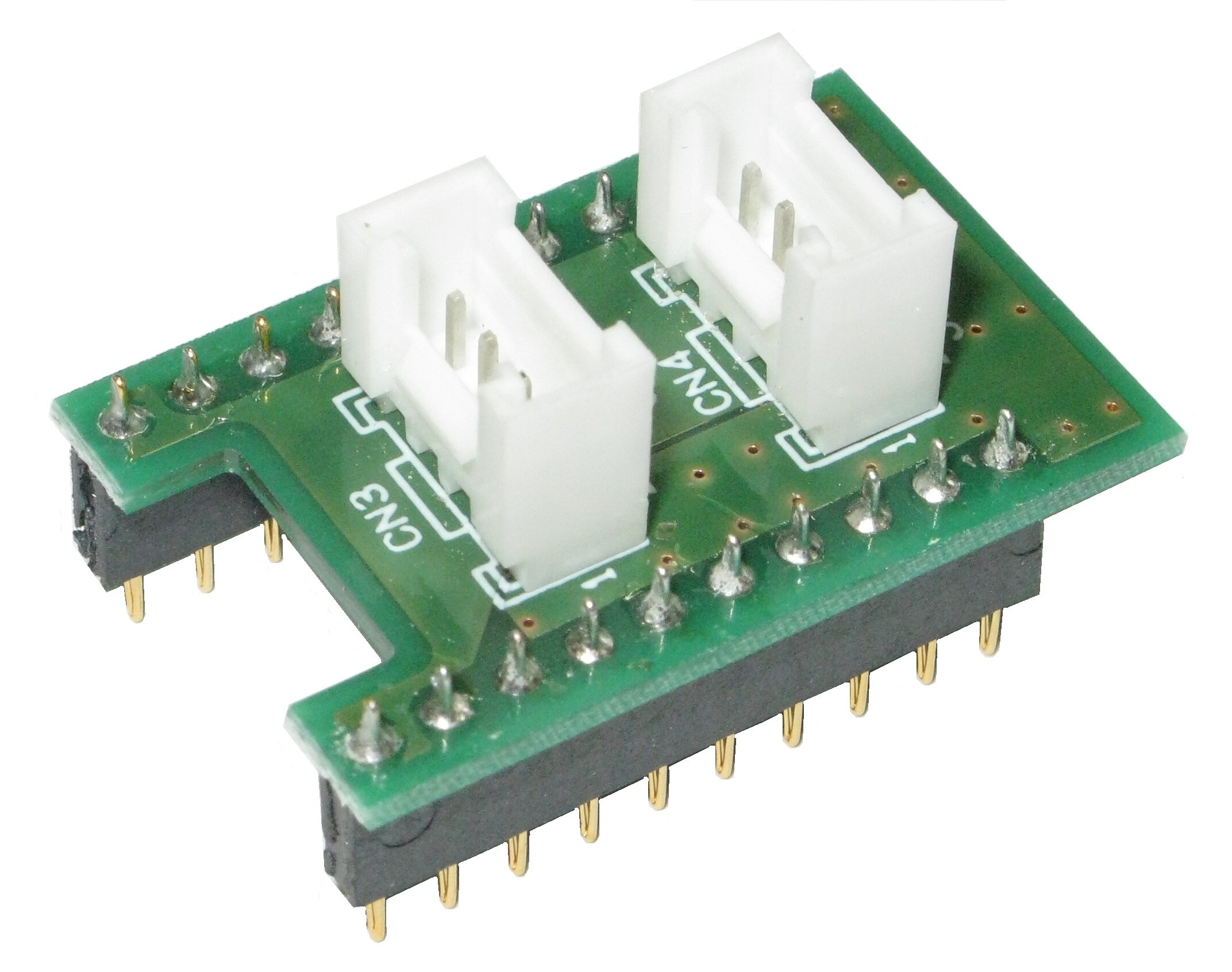

Sensor Socket
EY1SENSOR-SKT
Sensor Socket for Bluetooth® low energy Sensing Evaluate Solution
Description

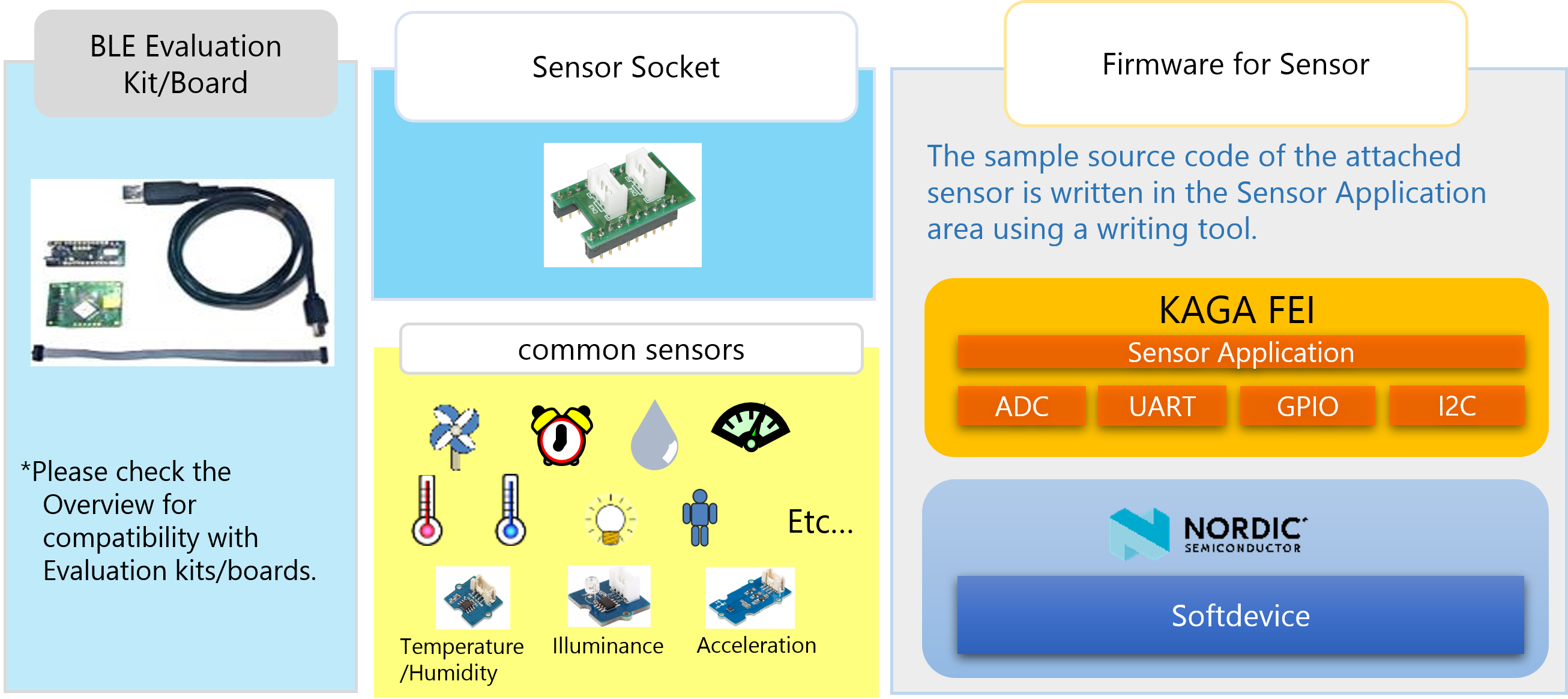

This solution contains a sensor socket "EY1SENSOR-SKT", Bluetooth® low energy evaluation board/kit, common Sensors and firmware provided by our company.
These can be purchased from online distributors.
Information on various sensors (temperature, illuminance, acceleration) can be sent wirelessly using the evaluation board of BLE. Therefore, IoT startup can be realized immediately.
Provide Firmware development manual for using other Sensors. Customers can easily develop startup, hypothesis & verification by developing Firmware.

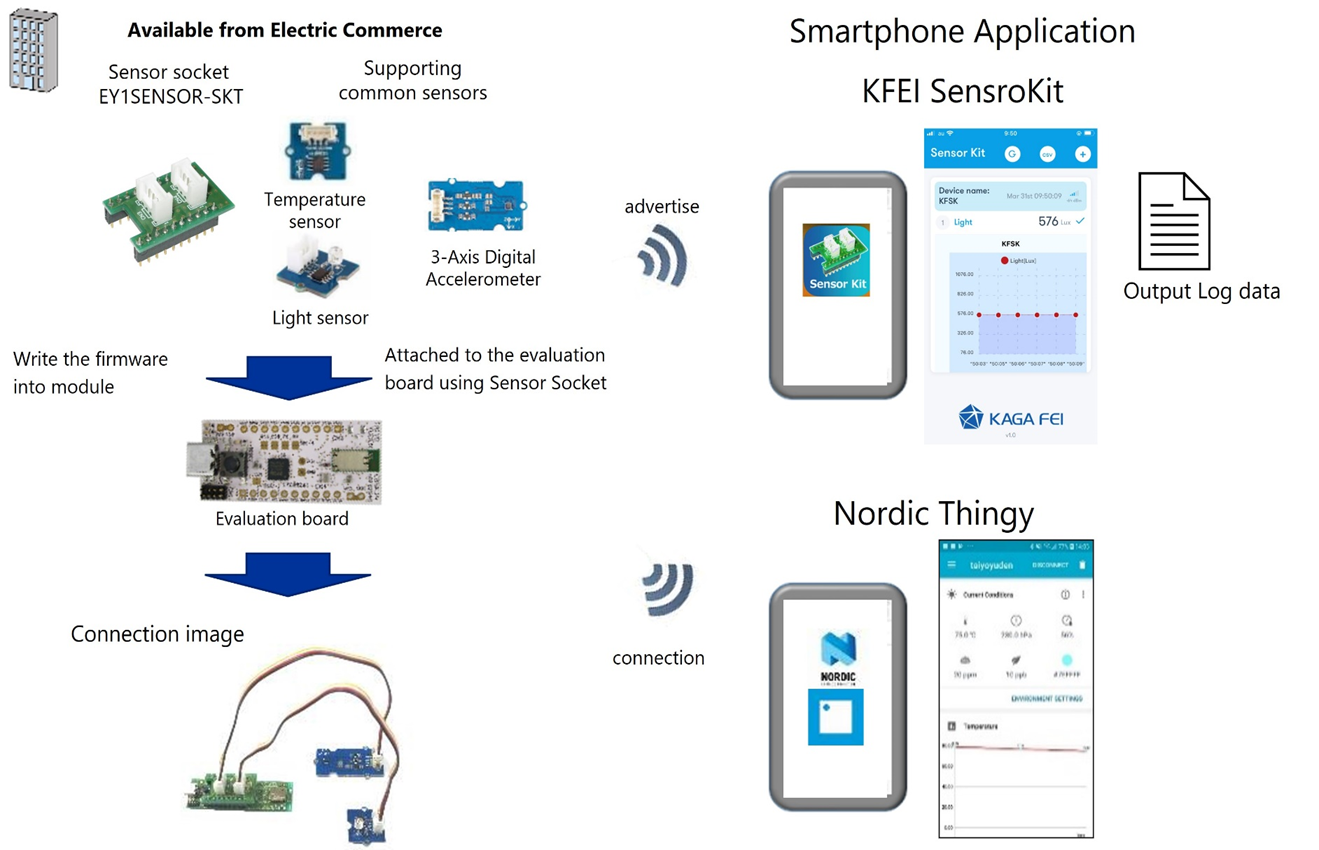

Image of Use
Documentation
| Document Name | Version | Date |
|---|
Overview
|
V1.2 | 2024/04/12 |
|
Sensor Node Development KIT Operation Manual
|
V1.2 | 2024/03/25 |
|
KFEI SensorKit Operation Manual
|
V1.1 | 2024/03/25 |
|
Connection for Thingy Oparation Manual
|
V1.0 | 2023/06/20 |
|
BLE Developer Manual
|
TBD | TBD |
|
EY1SENSOR-KIT Developer Guide
|
V1.1 | 2024/01/20 |
Sample connection firmware
| Evaluation Board | Version | Date |
|---|
Sample connection firmware EC2832AA2-EVA
|
V1.0 | 2023/06/20 |
|
Sample connection firmware EJ2832AA2-EVA
|
V1.0 | 2023/06/20 |
|
Sample connection firmware ES2832AA2-EVA
|
V1.0 | 2023/06/20 |
Sample beacon firmware
| Evaluation Board | Version | Date |
|---|
|
EJ2840AA2-EVB
|
V1.0 | 2023/06/20 |
|
ED2833AA2-EVB
|
V1.0 | 2024/01/24 |
|
EJ2833AA2-EVB
|
V1.0 | 2024/01/24 |
|
EC2832AA2-EVB
|
V1.0 | 2023/06/20 |
|
EJ2832AA2-EVB
|
V1.0 | 2023/06/20 |
|
ES2832AA2-EVB
|
V1.0 | 2023/06/20 |
|
EC2820AA2-EVB
|
V1.0 | 2024/01/24 |
|
ES2820AA2-EVB
|
V1.0 | 2024/01/24 |
|
EC2811AA2-EVB
|
V1.0 | 2023/06/20 |
|
ES2811AA2-EVB
|
V1.0 | 2023/06/20 |
|
EC2810AA2-EVB
|
V1.0 | 2023/06/20 |
|
ES2810AA2-EVB
|
V1.0 | 2023/06/20 |
Application
| Application Note | Version | Date |
|---|
Supported Evaluation Boards
|
Board Part No. |
||||
|
Soc |
nRF52840 |
nRF52833 |
nRF52833 |
nRF52832 |
|
Board Size[mm] |
19.4×44.2×8.1 |
19.8×60.0×11.6 |
19.4×44.2×8.1 |
19.8×60.0×8.1 |
|
Module Size[mm] |
5.1×11.3×1.3 |
9.6×12.9×2.0 |
5.1×11.3×1.3 |
9.6×12.9×2.0 |
|
Board I/F |
UART |
USB,UART |
UART |
UART |
|
Module I/O |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
USB,SPI,UART, I2C, I2S, PDM and 12bit ADC |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
|
Softdevice |
S140 |
S113 |
S113 |
S132 |
|
Remark |
Long Range |
Long Range |
Long Range |
|
Board Part No. |
||||
|
Soc |
nRF52832 |
nRF52832 |
nRF52820 |
nRF52820 |
|
Board Size[mm] |
19.4×44.2×8.1 |
19.4×44.2×8.1 |
19.8×60.0×11.6 |
19.8×60.0×11.6 |
|
Module Size[mm] |
5.1×11.3×1.3 |
3.25×8.55×0.85 |
9.6×12.9×2.0 |
3.25×8.55×1.00 |
|
Board I/F |
UART |
UART |
USB,UART |
USB,UART |
|
Module I/O |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
USB,SPI, UART and I2C |
USB,SPI, UART and I2C |
|
Softdevice |
S132 |
S132 |
S112 |
S112 |
|
Remark |
Long Range |
Long Range |
|
Board Part No. |
||||
|
Soc |
nRF52811 |
nRF52811 |
nRF52810 |
nRF52810 |
|
Board Size[mm] |
19.8×60.0×8.1 |
19.4×44.2×8.1 |
19.8×60.0×8.1 |
19.4×44.2×8.1 |
|
Module Size[mm] |
9.6×12.9×2.0 |
3.25×8.55×1.00 |
9.6×12.9×2.0 |
3.25×8.55×1.00 |
|
Board I/F |
UART |
UART |
UART |
UART |
|
Module I/O |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
SPI,UART, I2C, PDM and 12bit ADC |
SPI,UART, I2C, PDM and 12bit ADC |
SPI,UART, I2C, PDM and 12bit ADC |
|
Softdevice |
S112 |
S112 |
S112 |
S112 |
|
Remark |
Long Range |
Long Range |
