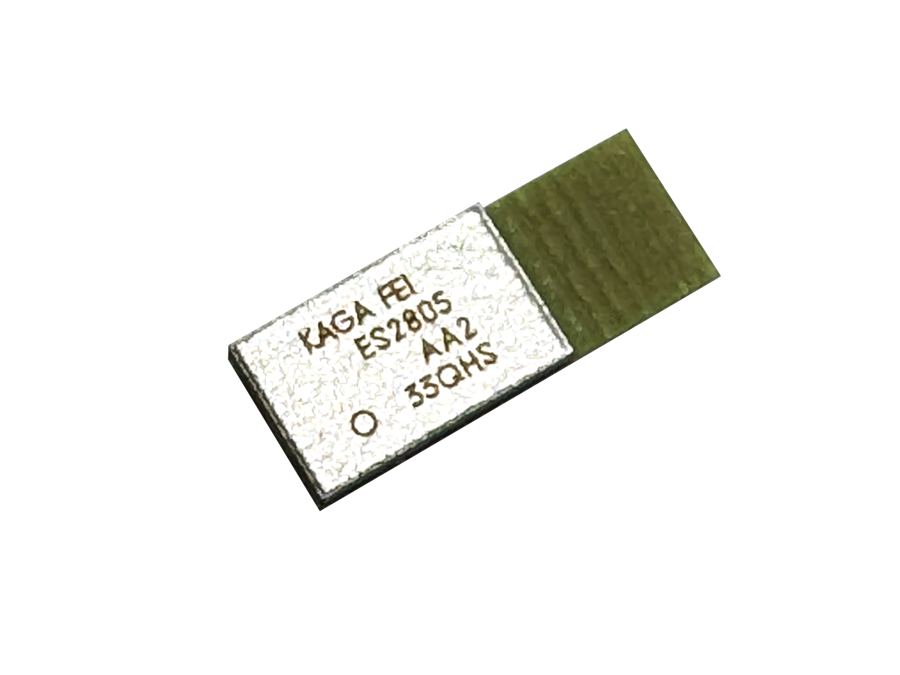

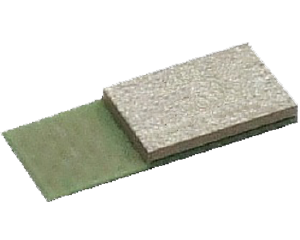

ES2805AA2
Wireless Module
Bluetooth® low energy (BLE)
Part Number
ES2805AA2
Status
Mass Production

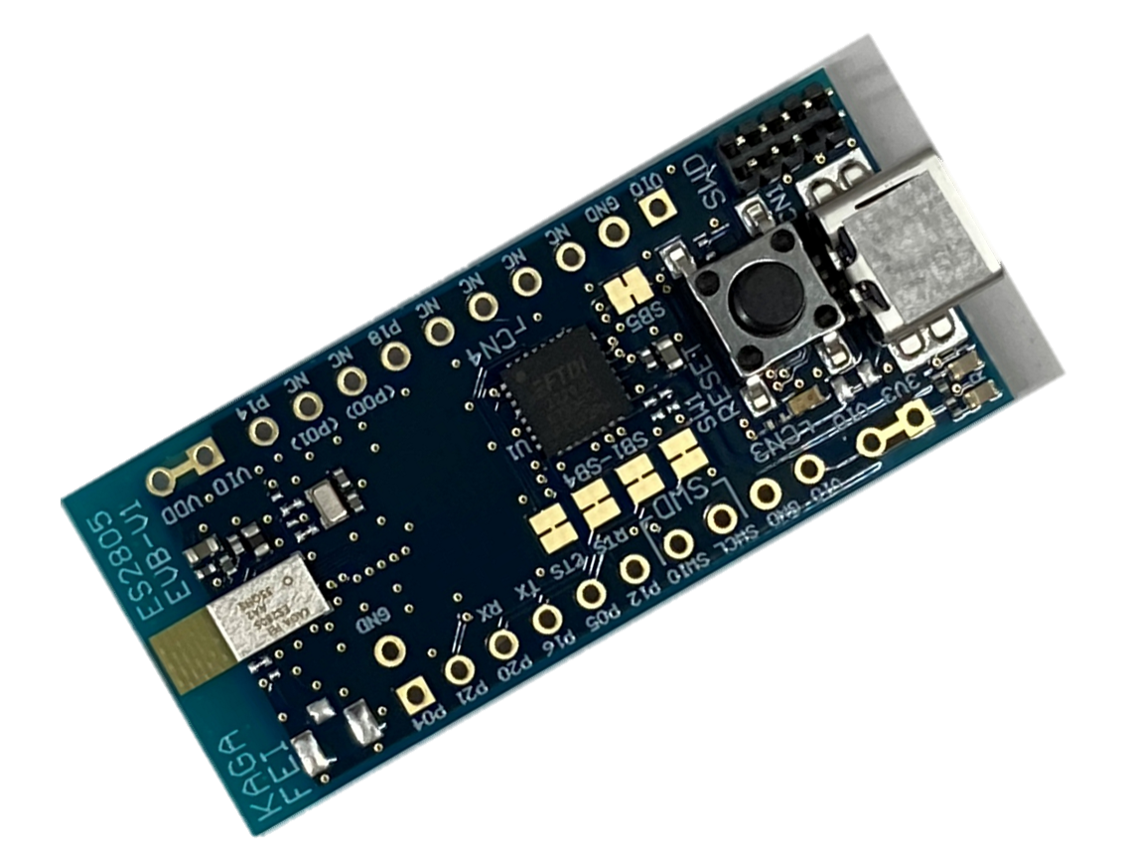

Evaluation Board
ES2805AA2-EVB
Evaluation Board for
Bluetooth® low energy module
ES2805AA2.

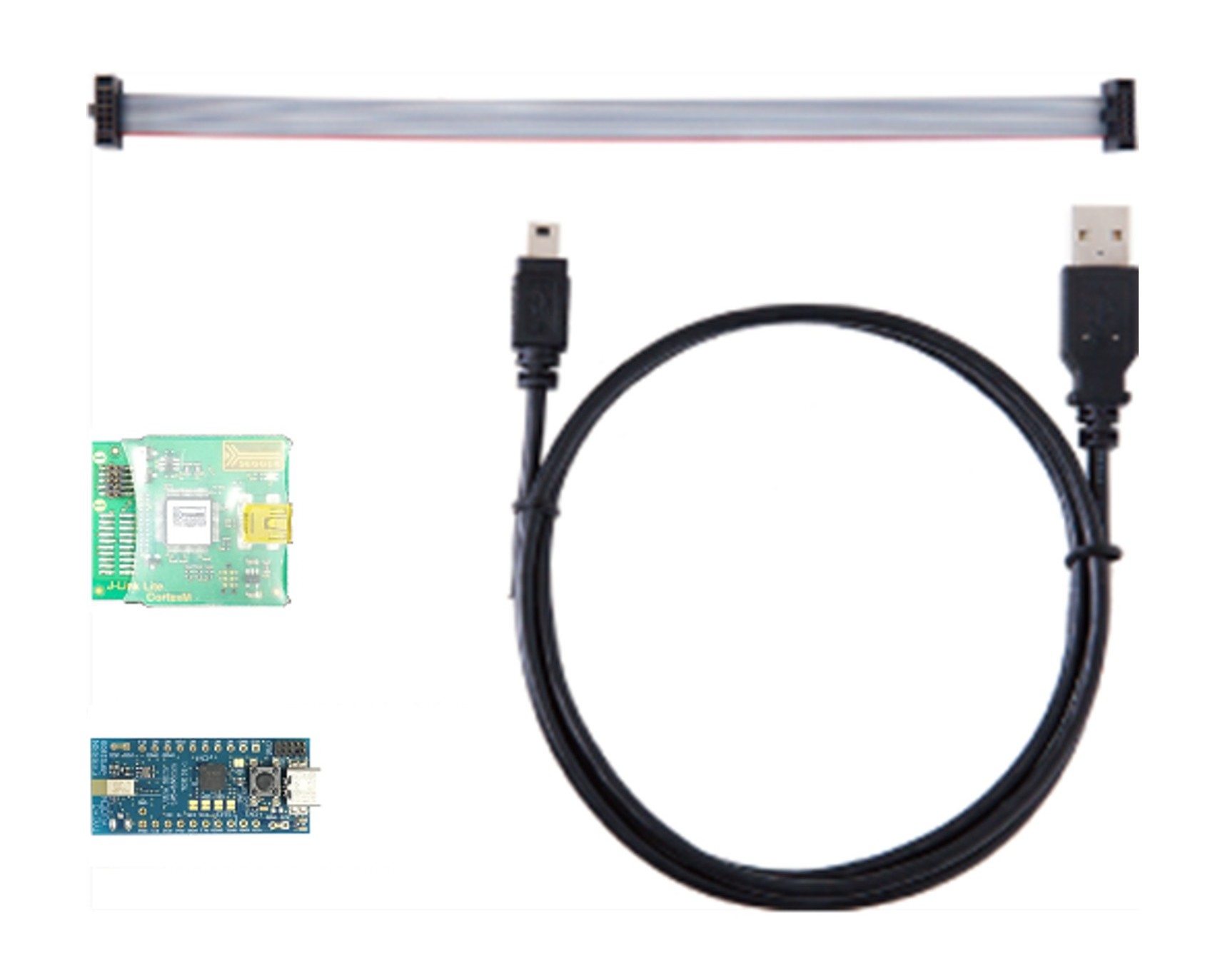

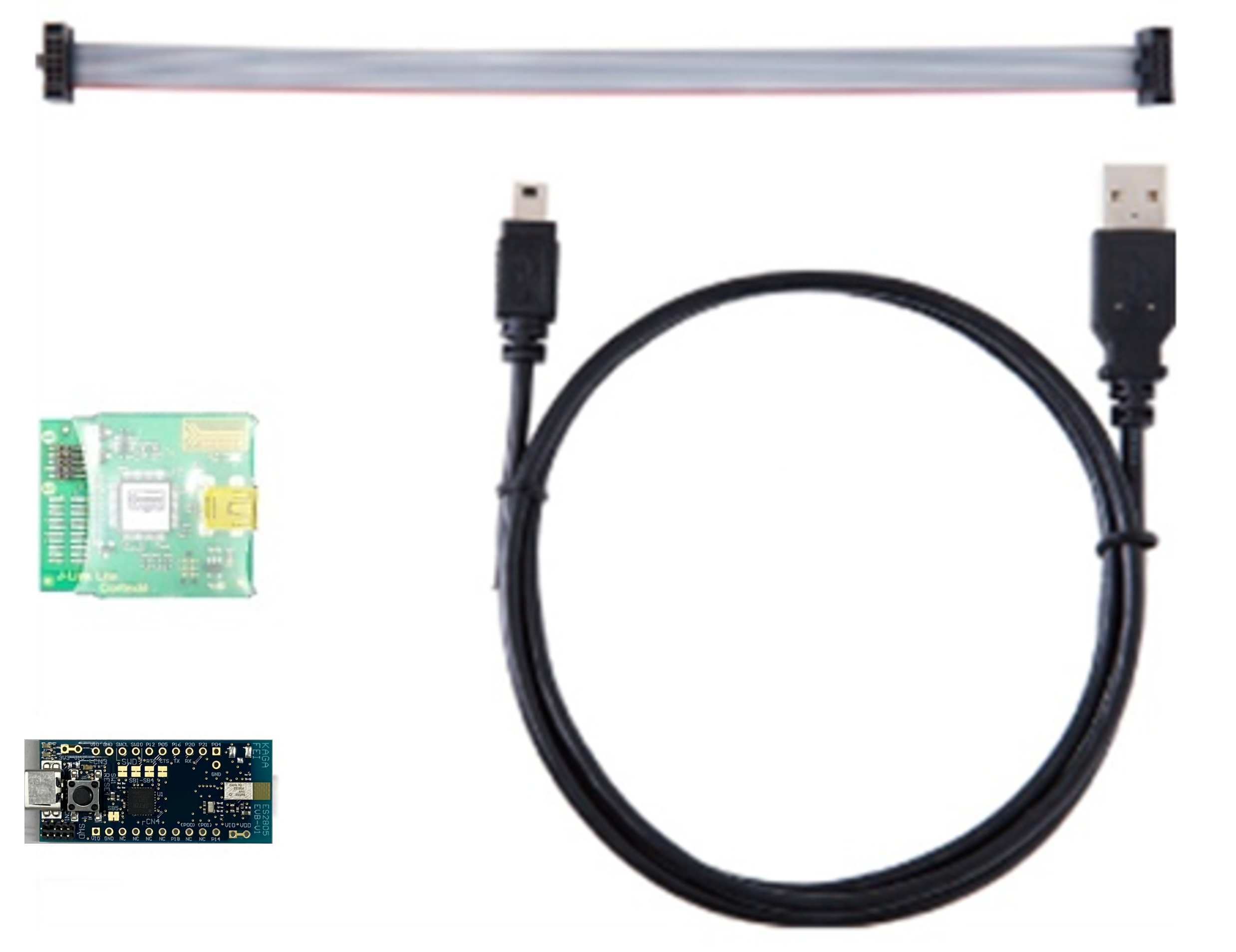

Evaluation Kit
ES2805AA2-EVK
Evaluation Kit for
Bluetooth® low energy module
ES2805AA2.
Key Features
Bluetooth® Version: 5.2 (2Mbps mode)
Frequency: 2402 to 2480 MHz
Output power: +4dBm typ.
Single power supply: 1.7 – 3.6V
Single Mode Bluetooth low energy (ANTTM Available)
Integrated System Clock
Integrated high performance PCB antenna
ARM® Cortex M4 32bit processor / 192KB Flash & 24KB RAM
Interface: SPI, UART, I2C and 12bit ADC
Outline: 3.25 x 8.55 x 1.00 mm
Bluetooth® and Japan, FCC, ISED qualified
ETSI EN 300 328 V2.2.2 conducted test report available
RoHS compliant / Complete Lead Free
for Detail
| Document Name | Version | Date |
|---|
Overview
|
v1.3 | 2024/08/06 |
|
Data Sheet
|
v1.0 | 2024/07/05 |
|
Evaluation Board / Kit Manual
|
v1.0 | 2024/07/19 |
|
Firmware Writing manual
|
v1.2 | 2024/08/09 |
ETSI Test Report
|
v1.0 | 2023/01/17 |
|
FAQ
|
v1.3 | 2024/07/26 |
|
Module CAD Data
|
V1.2 | 2024/08/07 |
