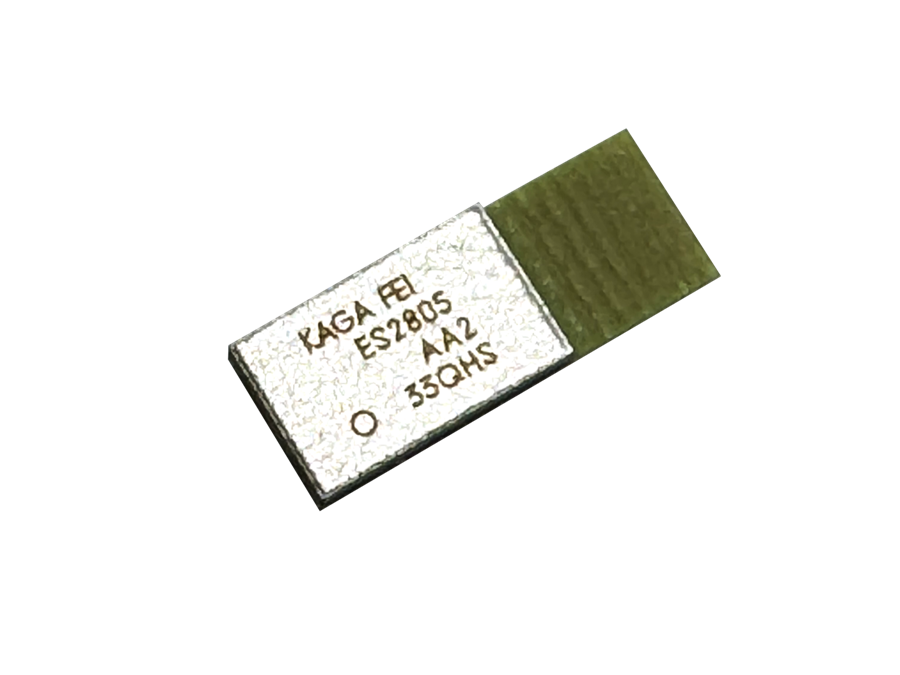

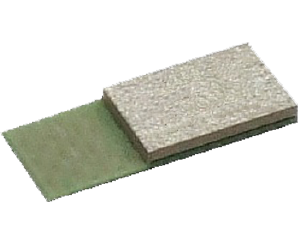

ES2805AA2
Wireless Module
Bluetooth® Low Energy
Part Number: ES2805AA2
Status: Mass Production

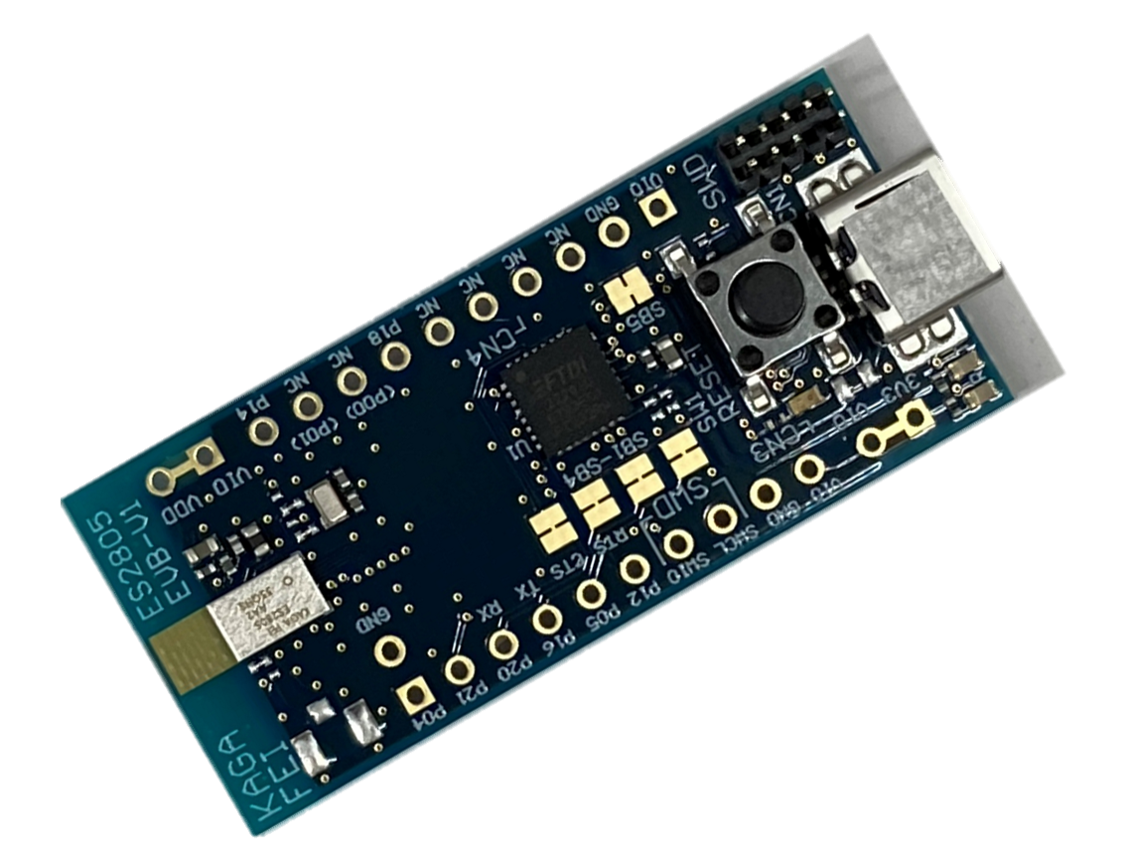

Evaluation Board
ES2805AA2-EVB
Evaluation Board for
Bluetooth® Low Energy module
ES2805AA2.

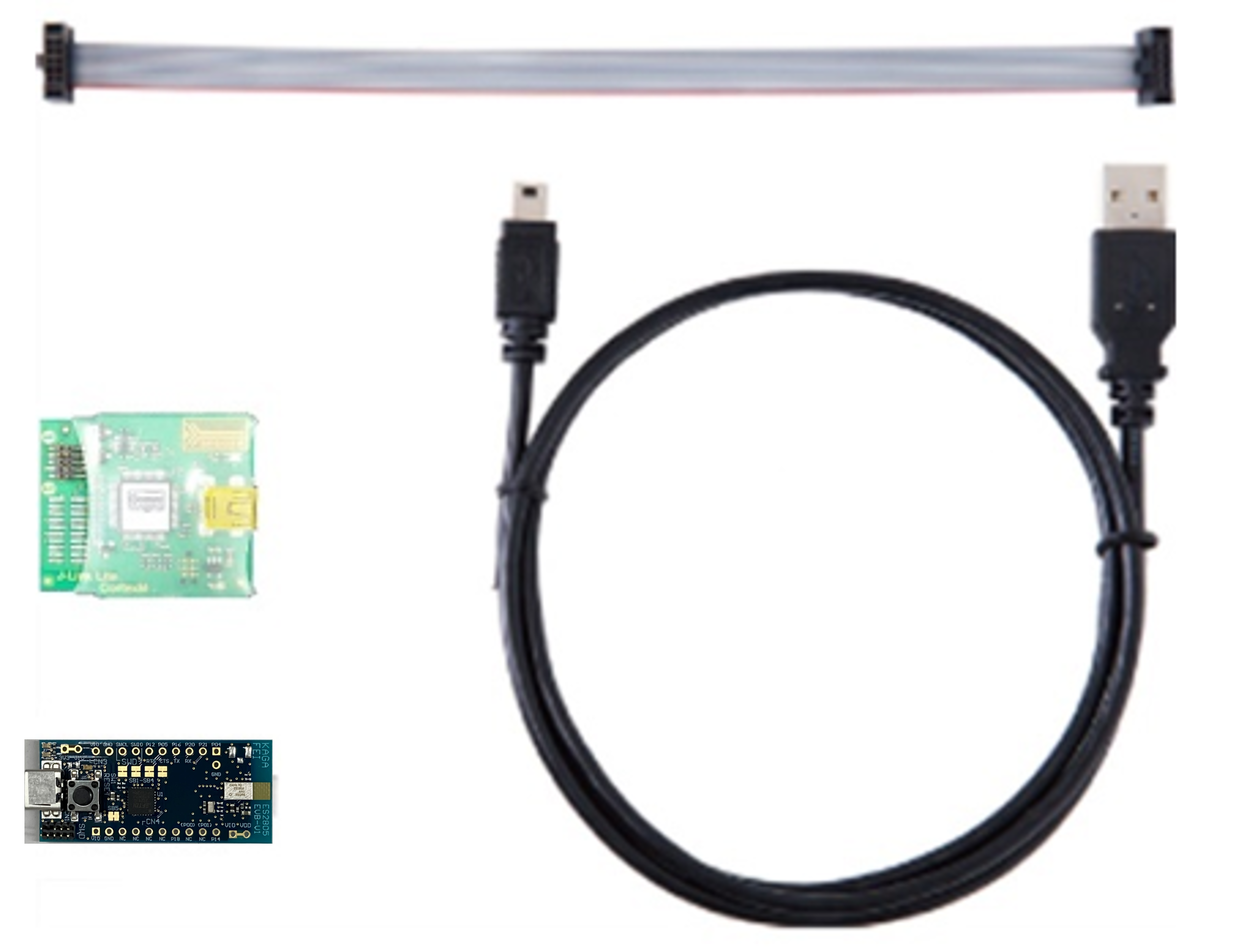

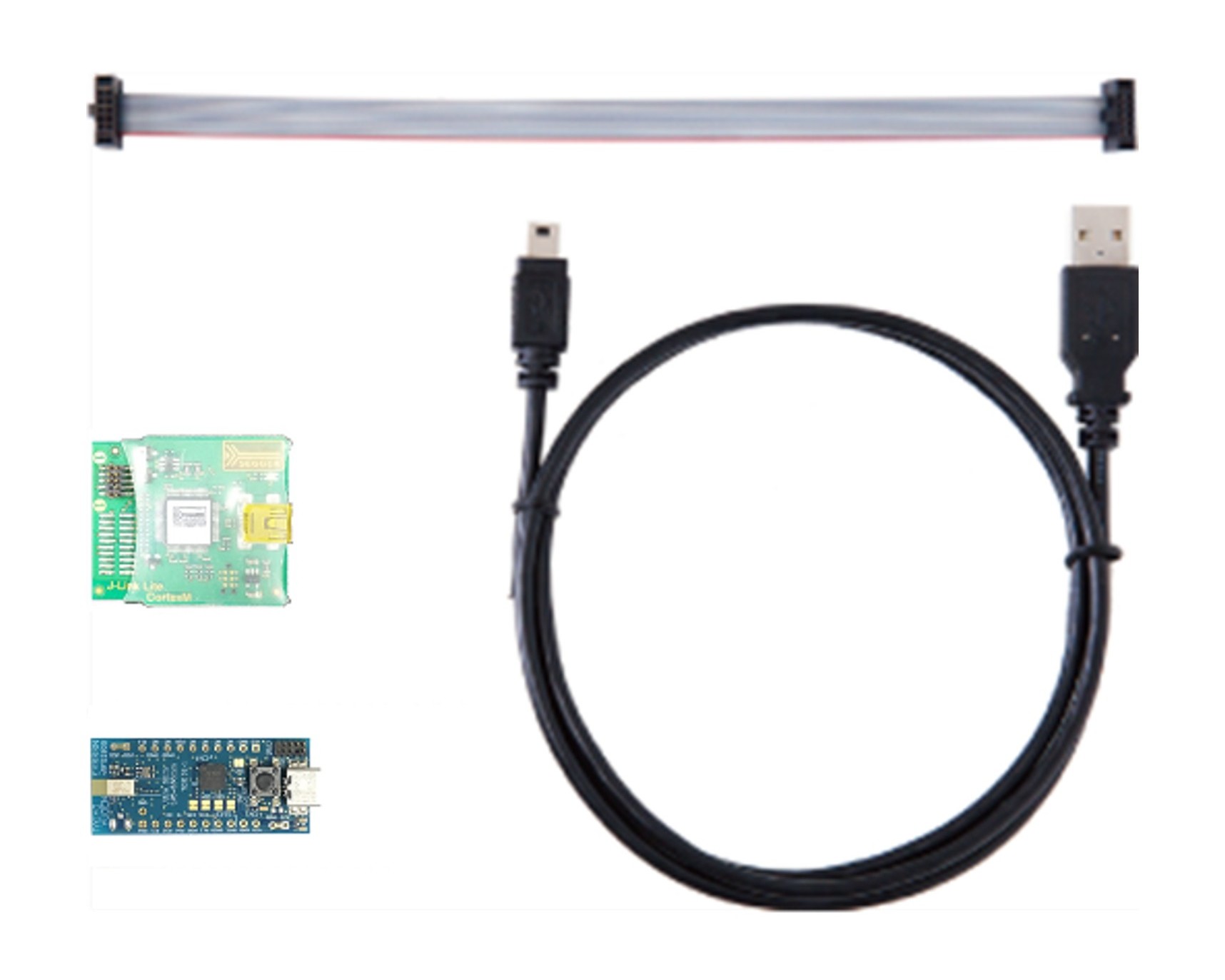

Evaluation Kit
ES2805AA2-EVK
Evaluation Kit for
Bluetooth® Low Energy module
ES2805AA2.
Key Features
Bluetooth® Core 5.2 (Support LE 2M)
Frequency: 2402 to 2480 MHz
Output power: +4dBm typ.
Single power supply: 1.7 – 3.6V
Single Mode Bluetooth LE (ANT™ Available)
Integrated System Clock
Integrated high performance PCB antenna
ARM® Cortex M4 32bit processor / 192KB Flash & 24KB RAM
Interface: SPI, UART, I2C and 12bit ADC
Outline: 3.25 x 8.55 x 1.00 mm
Bluetooth® qualified and Japan, FCC, ISED certified
ETSI EN 300 328 V2.2.2 conducted test report available
RoHS compliant / Complete Lead Free
for Detail
