Bluetooth® low energy Sensing Evaluate Solution
2.4GHz (802.15.1) "BLE Evaluation Kit/Board", "Sensor Socket", "3 types of firmware" and various sensors can be combined to realize a "start small" for IoT.
Sensing Evaluate Solution
The "Sensing Evaluate Solution" is a kit that includes a adapter board (Sensor Socket) for connecting sensors, a couple of sensors, and firmware for communicating sensor data wirelessly using BLE.

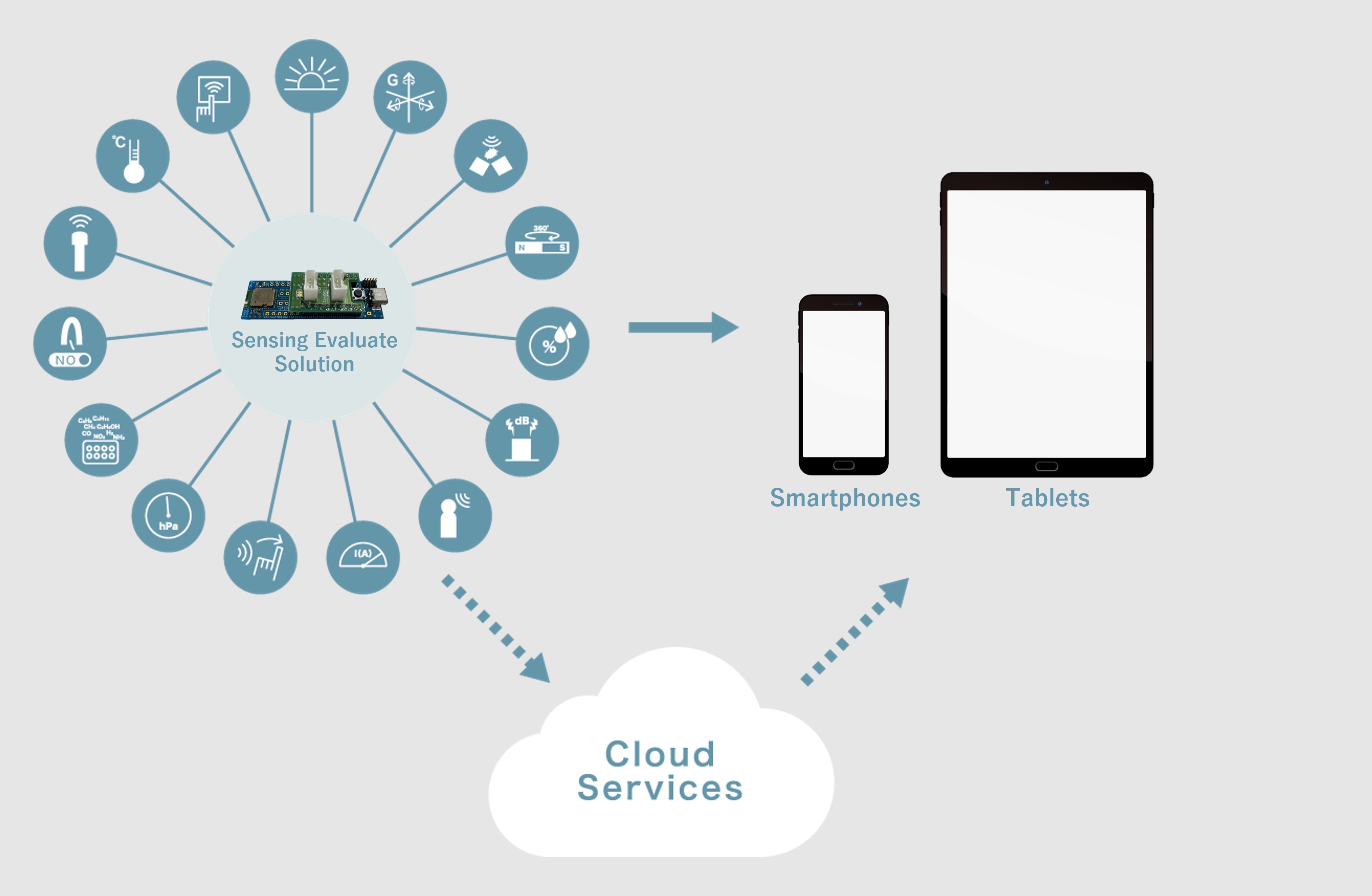

The sensor data can be transmitted wirelessly by connecting the sensor to the The "BLE Evaluation Kit/Board". As a opposite device, a smartphone application is also available so that you can check the wirelessly transmitted data.
Place of use

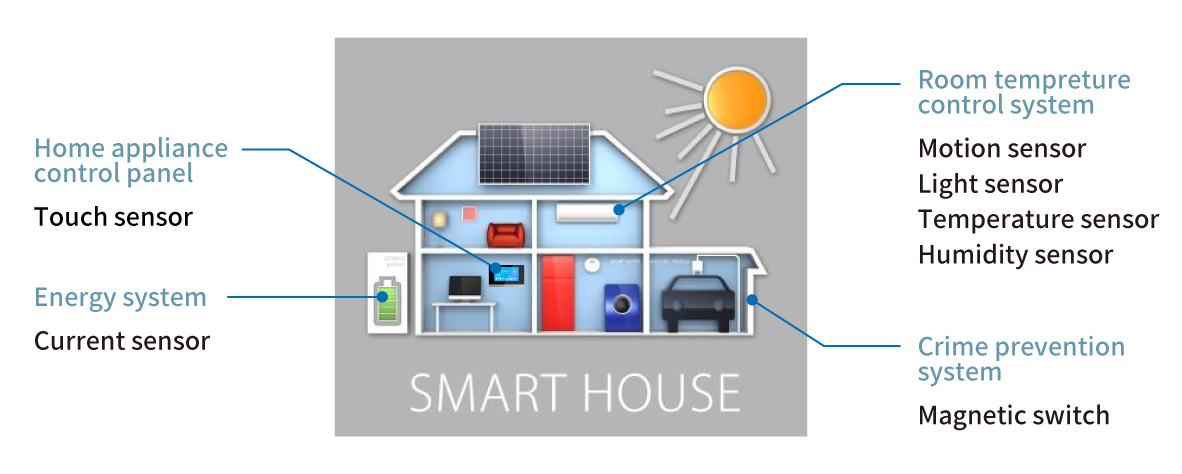

Smart house
When developing all kinds of smart house products using Sensing Evaluate Solution, it is possible to test them easily.
The application for smartphones and tablets is also available, so you can collect and check the sensor data in real time and quickly test it with prototypes (or mass-produced products).

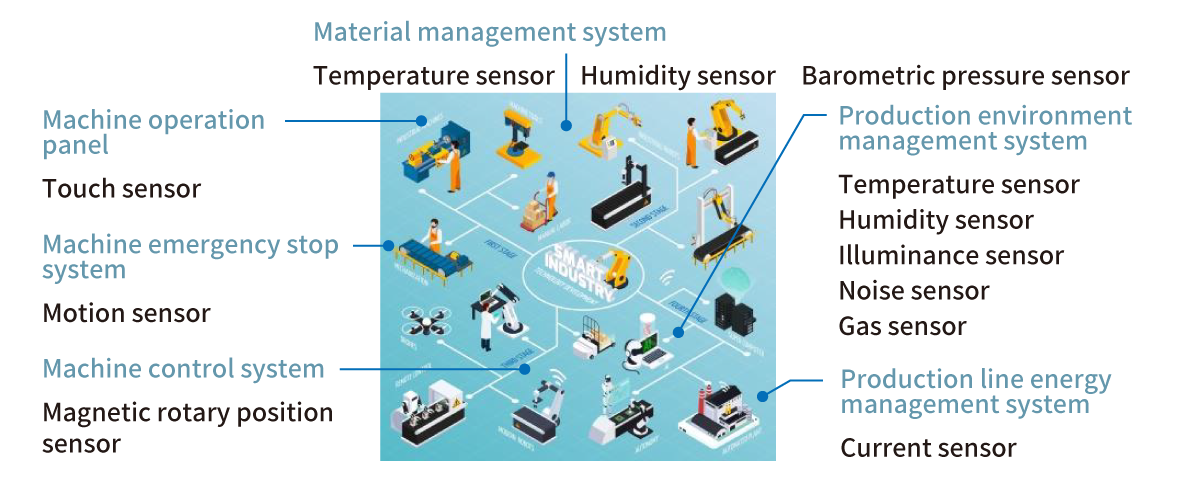

Production line with IoT
Obtaining the status of the production line can be tested with only minimal modification or addition to existing equipment. It is easy to deploy and test without programming and at low cost.

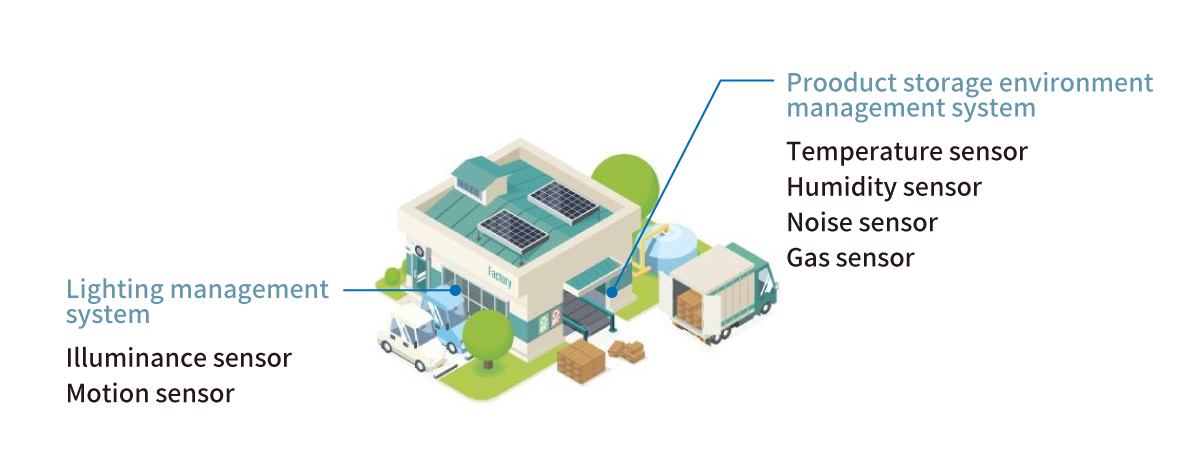

Warehouse and office environmental monitoring
This Sensing Evaluate Solution uses BLE technology to remotely monitor the warehouse environment with low power consumption and save manpower to patrol the warehouse.

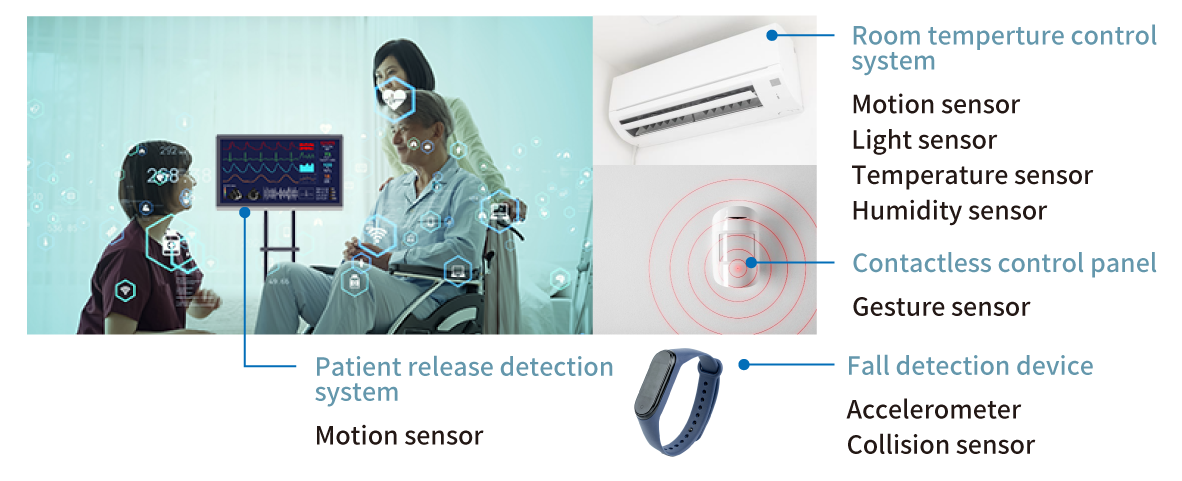

Care centers or nursing homes
In case of developing a solution that integrates artificial intelligence (AI), such as a fall detection device or a contactless control panel, by testing with the use of Sensing Evaluate Solution, it can be finded out the possibility of focusing on the development of AI algorithms without the trouble of data collection.

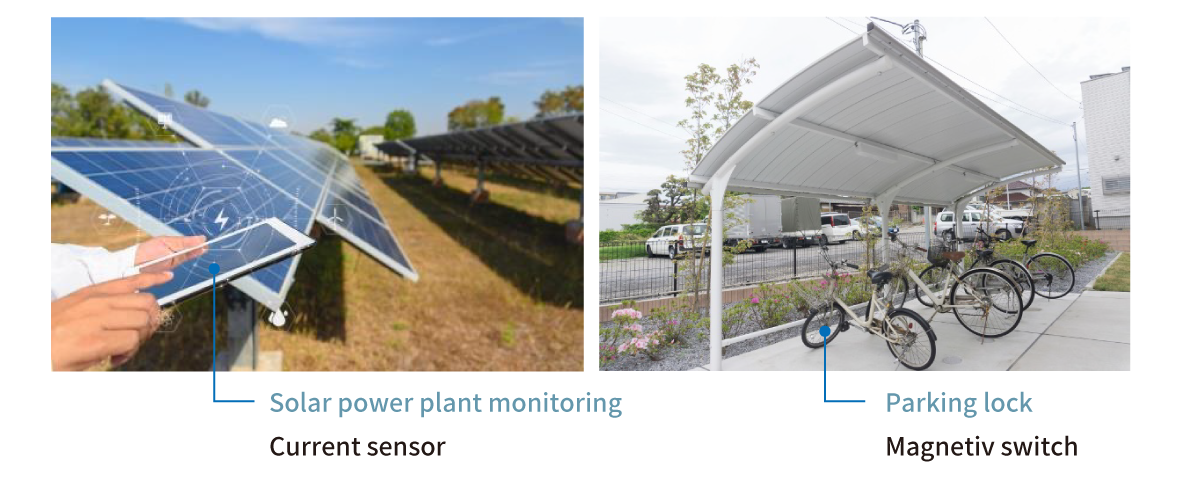

Social infrastructure
The current sensor and the magnetic switch are supported, so it is easy to test the remote monitoring system of the solar power plant or wireless bicycle parking lock deployment.
To solve the existing problems
Problem
To build or experiment with an IoT system using wireless modules and sensors,...
-
What do I need to prepare?
-
How long will it take?
-
What kind of effect does it have?
-
A kit for PoC is difficult to utilize for commercialization.
Solution
-
The operation has been checked with a combination BLE Evalution Kit/Boards, Sensor Socket, Three types of firmware and common sensors. So, it is the best suited for foretaste of IoT and your PoC or hypothesis verification.
-
It can be replaced the sensor and try it out.
-
This solution use an evaluation board of a real product instead of the kit only for PoC, so it can be evaluated immediately with a configuration similar to a prototype (mass-produced product).
To solve the existing problems

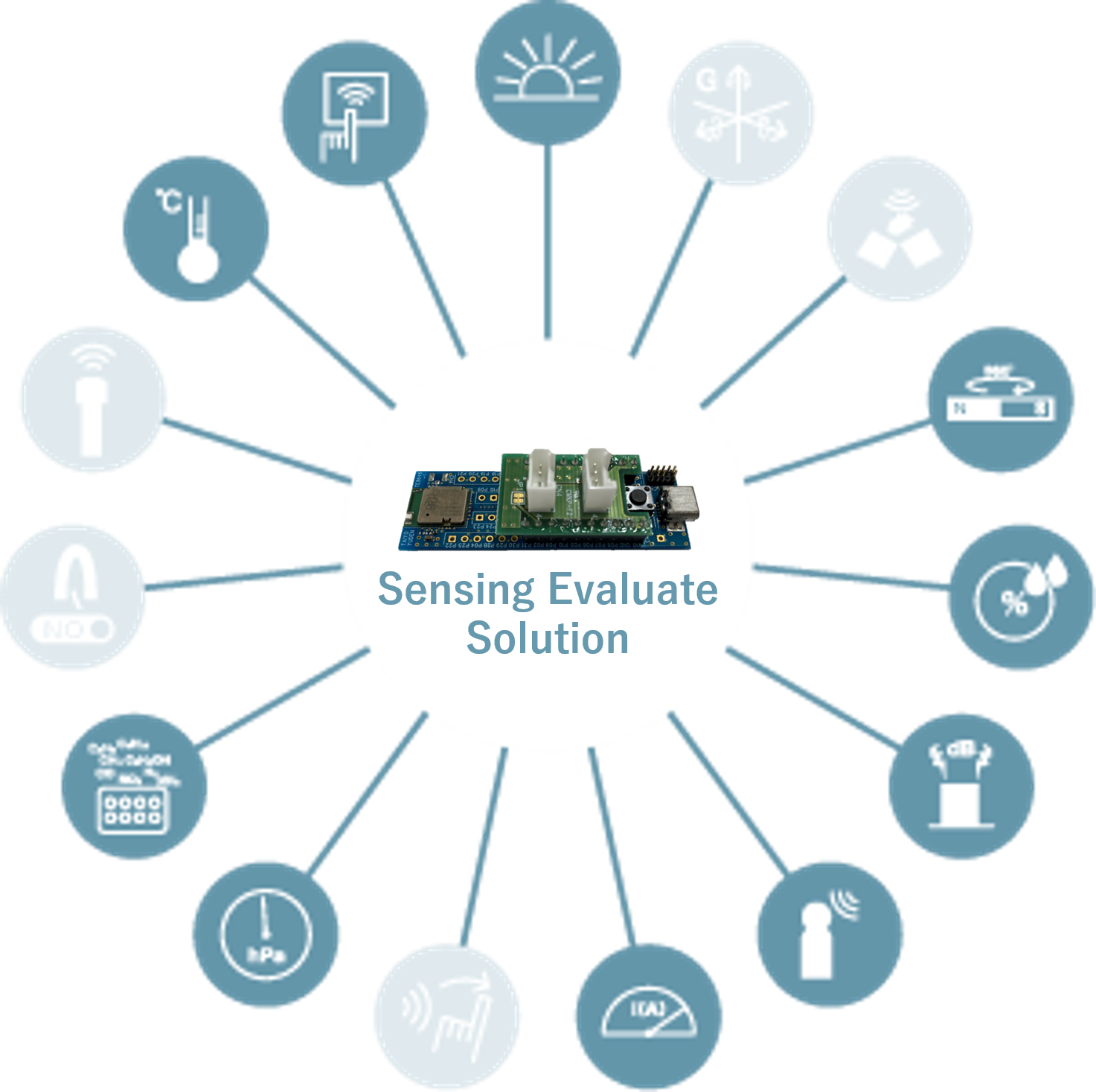

The "Sensing Evaluate Solution" is available with three different firmware versions. Please select the firmware that best suits your requirements.
> Overview
Want to verify IoT using sensors.
> Overview
- Want to try it first.(If you are not good at software development.)
- Want to try various things modifing the source code with my knowledge of software development.
(If you are not good at software development.)
Want to try it first.
Temperature, humidity and acceleration are fine.
▼
3 types of sensor trials

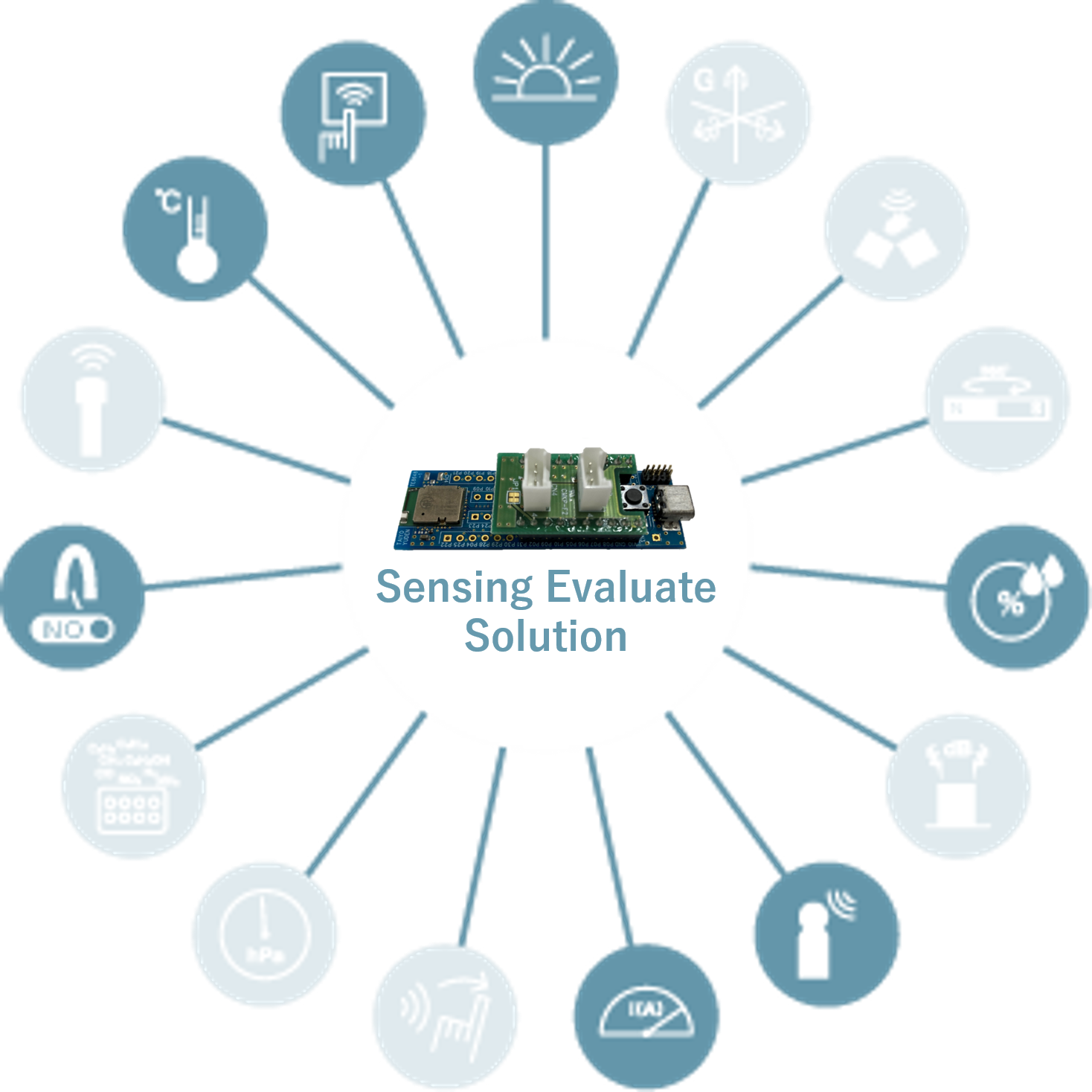

The three types of sensors included in the "Sensing Evaluate Solution" can be used. BLE communication (Beacon, Connection) is supported for the data acquired by the sensors. It can be used immediately after writing the firmware to the "BLE Evaluation Kit/Board".

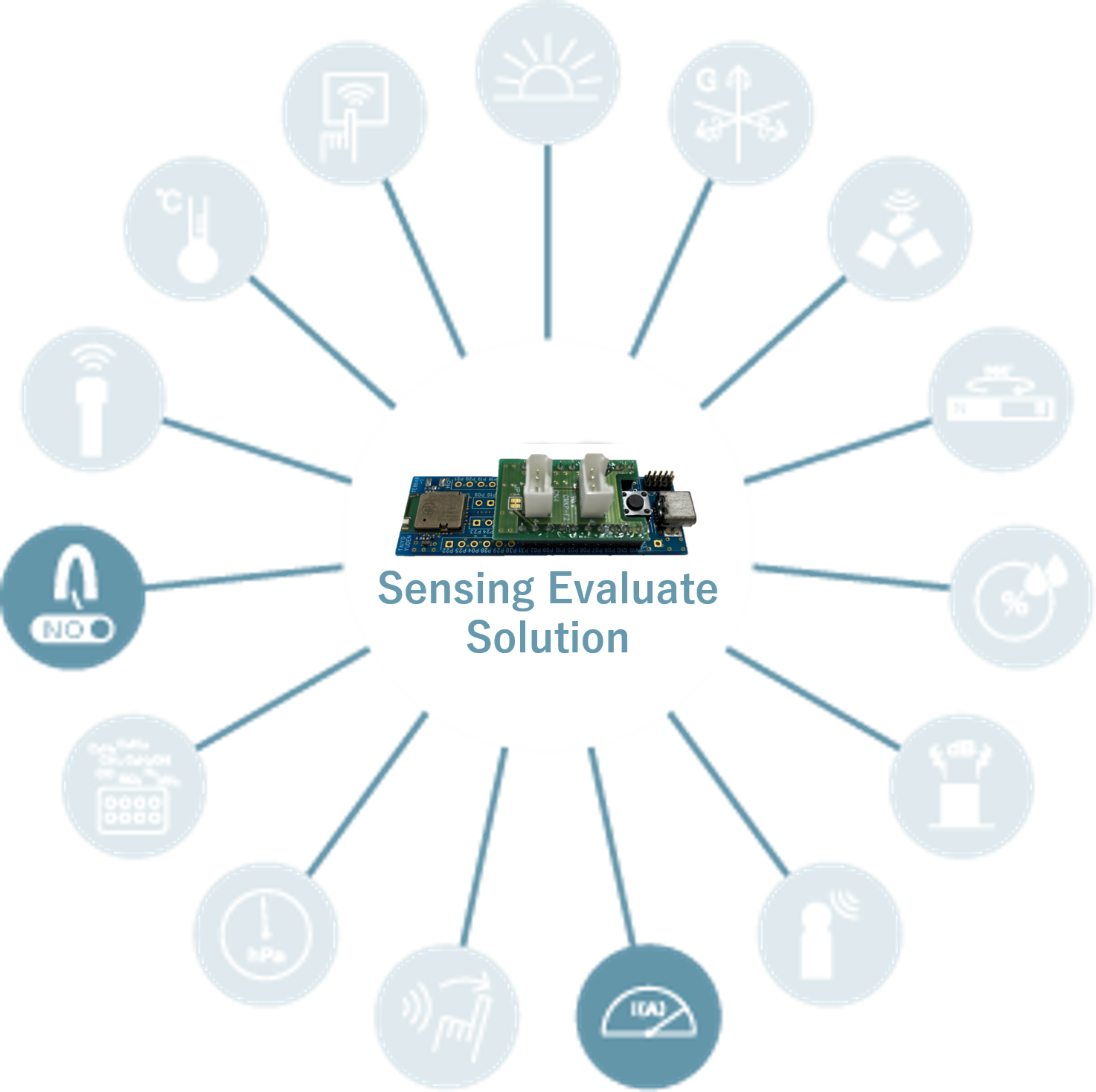

Want to try it first.

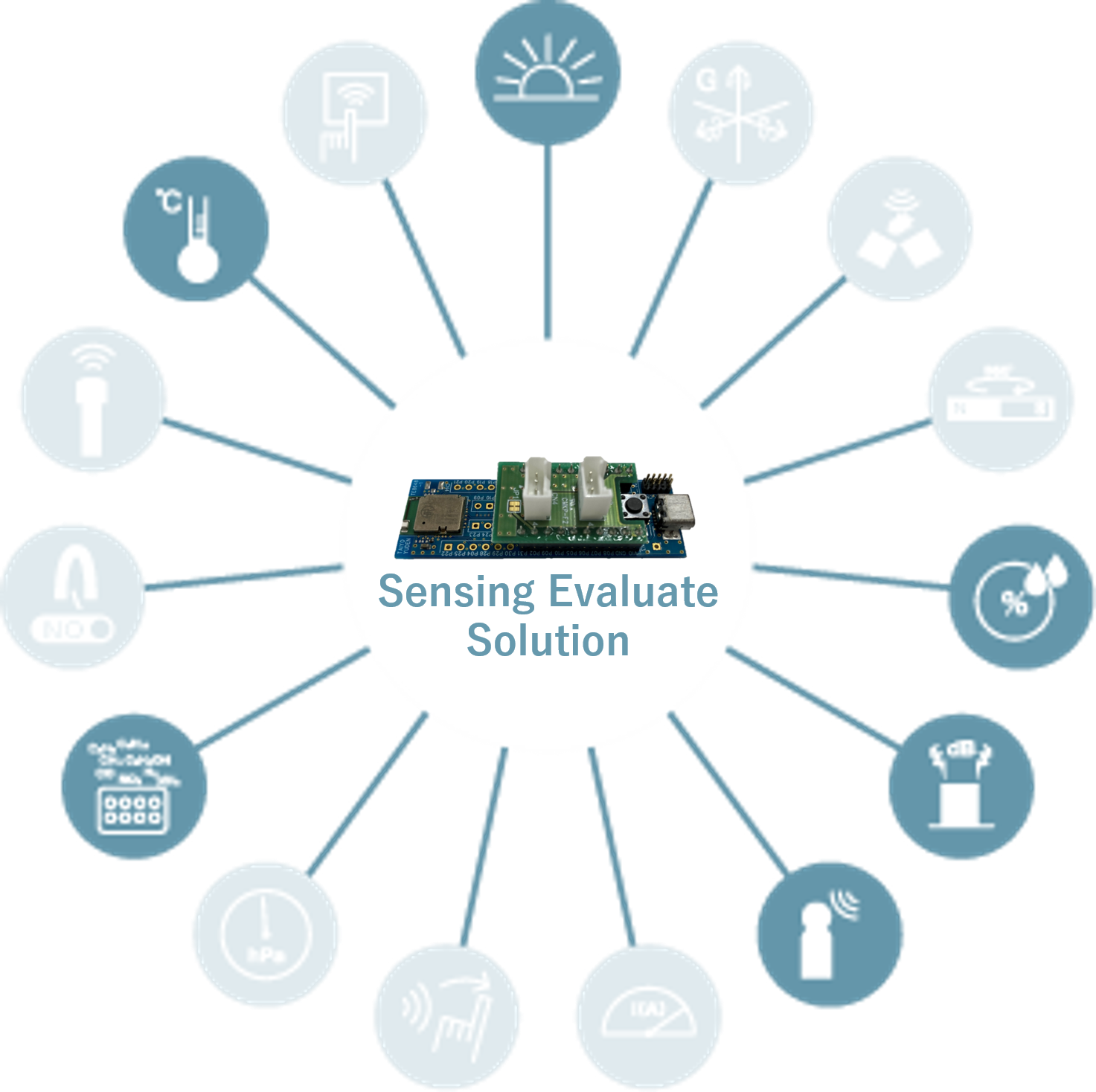

Want to handle more sensors.
▼
18 types of sensor CLI
(Command Line Interface)
18 types of specified sensors can be used
By writing the firmware to the "BLE Evaluation Kit/Board" and making simple settings from a PC, etc., it can be used immediately.
Temperature, humidity and acceleration are fine.
▼
3 types of sensor trials
The three types of sensors included in the "Sensing Evaluate Solution" can be used. BLE communication (Beacon, Connection) is supported for the data acquired by the sensors. It can be used immediately after writing the firmware to the "BLE Evaluation Kit/Board".
Want to handle more sensors.
▼
18 types of sensor CLI
(Command Line Interface)
18 types of specified sensors can be used
By writing the firmware to the "BLE Evaluation Kit/Board" and making simple settings from a PC, etc., it can be used immediately.

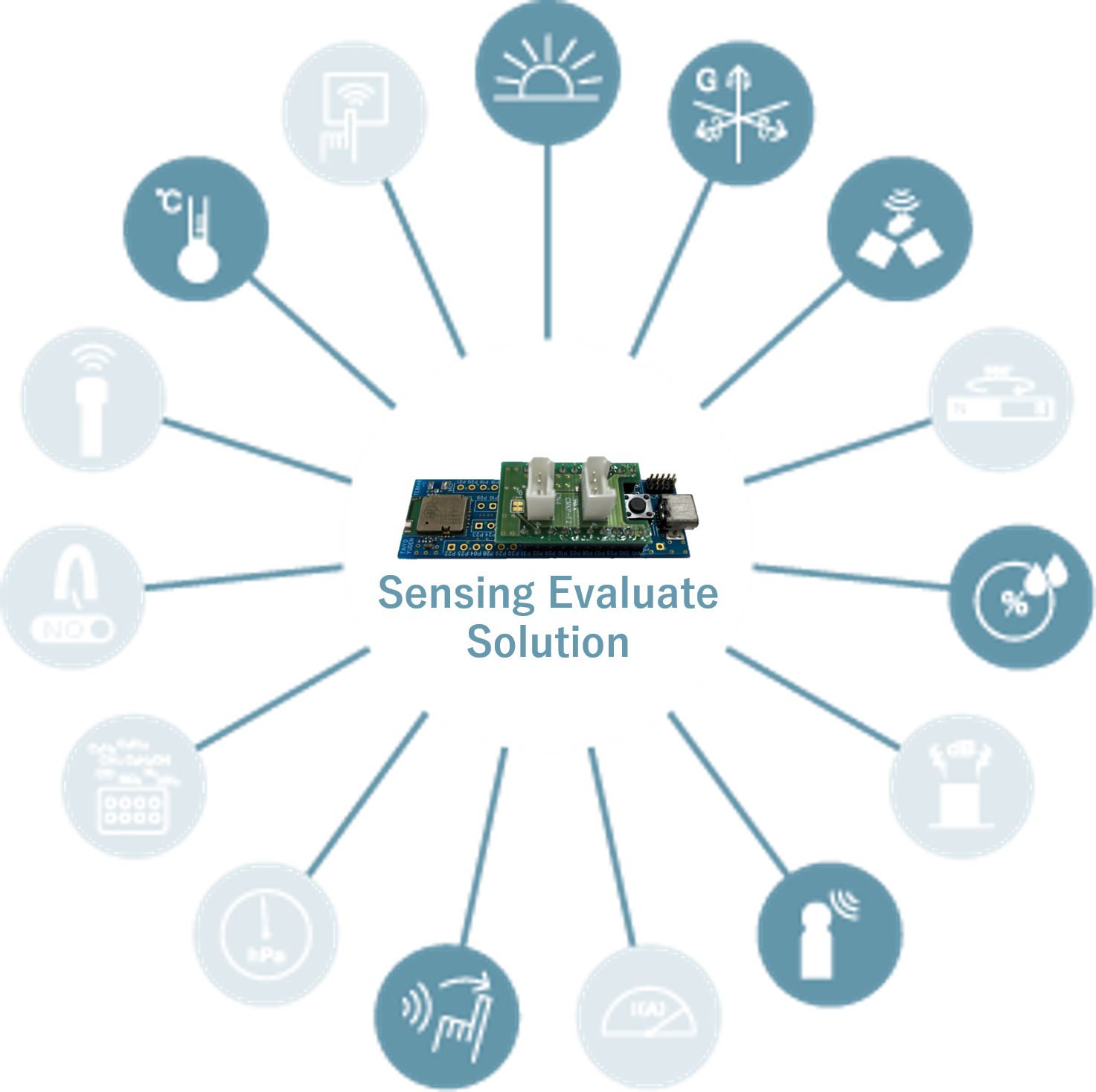

Want to handle sensors without restrictions.
▼
Multi-sensor
Arduino Wrapper
It can be used any sensor that has been driver released for Arduino.
It can be used for various test by modifying the firmware.
Want to try various things modifing the source code with my knowledge of software development.
Want to handle sensors without restrictions.
▼
Multi-sensor
Arduino Wrapper
It can be used any sensor that has been driver released for Arduino.
It can be used for various test by modifying the firmware.
