Bluetooth® low energy Sensing Evaluate Solution (CLI)
Sensor Socket

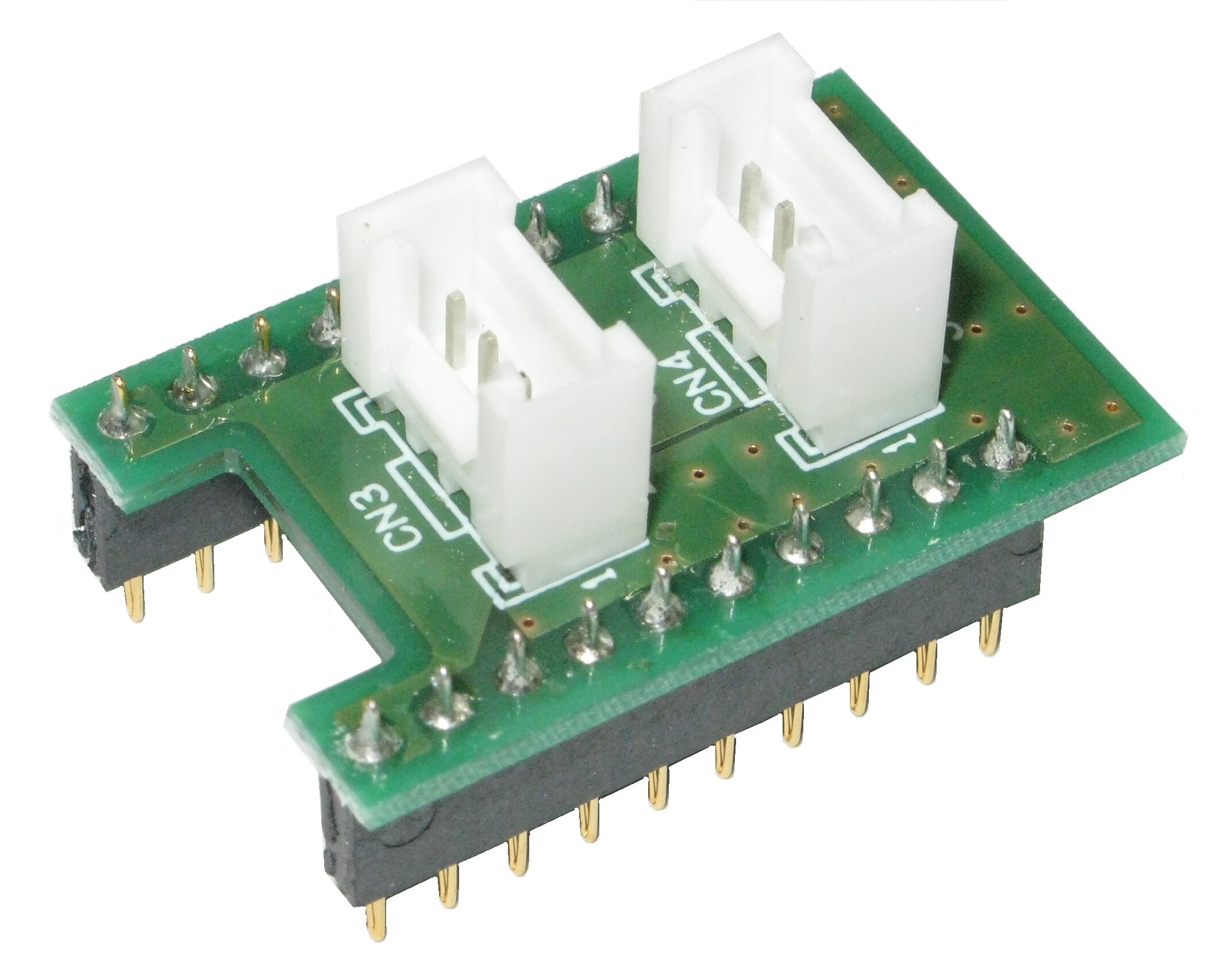

EY1SENSOR-SKT
Sensor Socket for Bluetooth® low energy Sensing Evaluate Solution

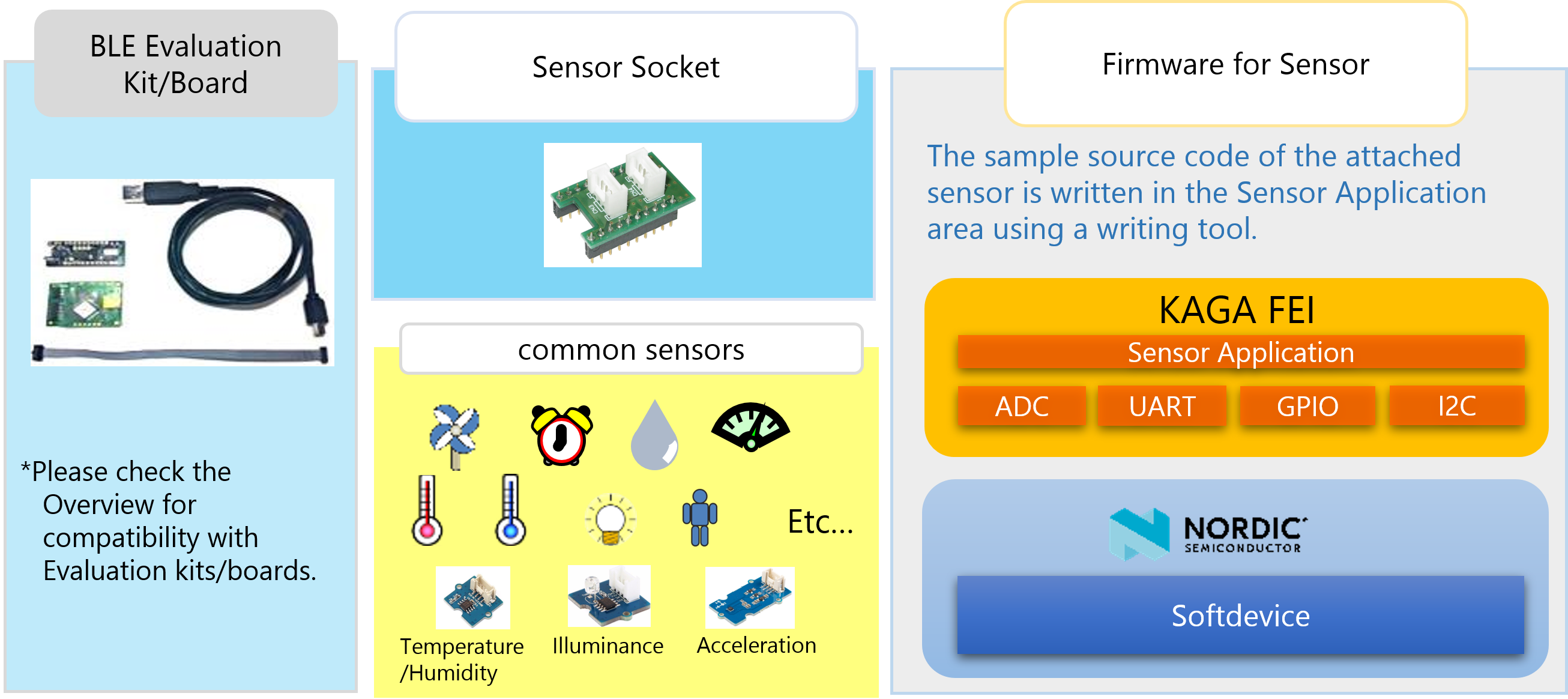

Description
This solution contains a sensor socket "EY1SENSOR-SKT", Bluetooth® low energy evaluation board/kit, common Sensors and firmware provided by our company.
Using "BLE Evaluation Board", information on 18 types of sensors (need to be purchased separately) can be sent wirelessly, so IoT startup can be realized immediately.
These can be purchased from online distributors. This product provides an application for Bluetooth® low energy Module that can use sensor switching commands with UART, and an application for smartphones and tablets.

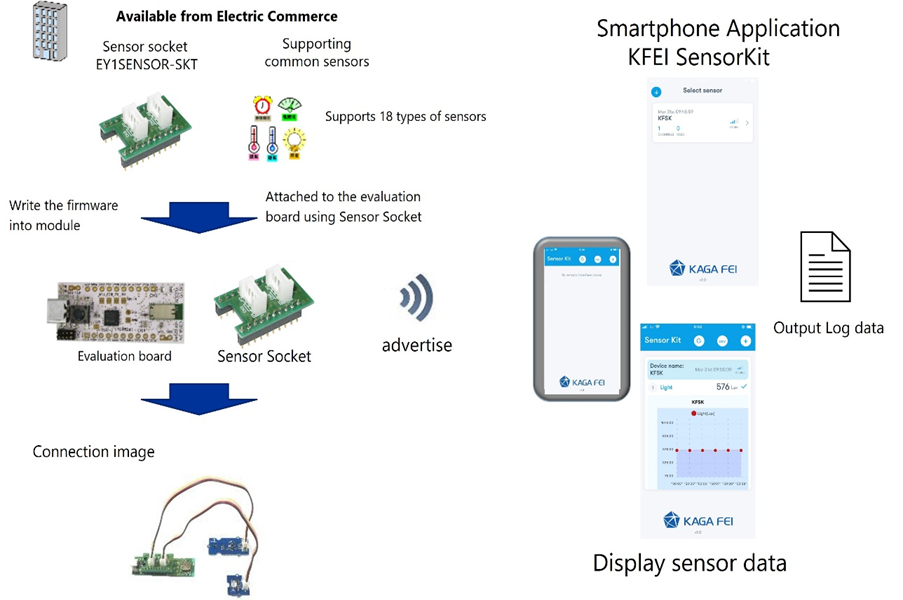

Image of Use
Documentation
| Document Name | Version | Date |
|---|
Overview
|
V1.2 | 2024/04/12 |
|
Sensor Node Development CLI FW Operation Manual
|
V1.1 | 2024/01/26 |
|
KFEI SensorKit Operation Manual
|
V1.1 | 2024/03/25 |
|
BLE Developer Manual
|
TBD | TBD |
Sample beacon firmware
| Evaluation Board | Version | Date |
|---|
EJ2840AA2-EVB
|
V1.01 | 2024/01/18 |
|
ED2833AA2-EVB
|
V1.00 | 2024/01/18 |
|
EJ2833AA2-EVB
|
V1.00 | 2024/01/18 |
|
EC2832AA2-EVB
|
V1.01 | 2024/01/18 |
|
EJ2832AA2-EVB
|
V1.01 | 2024/01/18 |
|
ES2832AA2-EVB
|
V1.01 | 2024/01/18 |
|
EC2820AA2-EVB
|
V1.00 | 2024/01/18 |
|
ES2820AA2-EVB
|
V1.00 | 2024/01/18 |
|
EC2811AA2-EVB
|
V1.01 | 2024/01/18 |
|
ES2811AA2-EVB
|
V1.01 | 2024/01/18 |
|
EC2810AA2-EVB
|
V1.01 | 2024/01/18 |
|
ES2810AA2-EVB
|
V1.01 | 2024/01/18 |
Application
| Application Note | Version | Date |
|---|
Supported Evaluation Boards
|
Board Part No. |
||||
|
Soc |
nRF52840 |
nRF52833 |
nRF52833 |
nRF52832 |
|
Board Size[mm] |
19.4×44.2×8.1 |
19.8×60.0×11.6 |
19.4×44.2×8.1 |
19.8×60.0×8.1 |
|
Module Size[mm] |
5.1×11.3×1.3 |
9.6×12.9×2.0 |
5.1×11.3×1.3 |
9.6×12.9×2.0 |
|
Board I/F |
UART |
USB,UART |
UART |
UART |
|
Module I/O |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
USB,SPI,UART, I2C, I2S, PDM and 12bit ADC |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
|
Softdevice |
S140 |
S113 |
S113 |
S132 |
|
Remark |
Long Range |
Long Range |
Long Range |
|
Board Part No. |
||||
|
Soc |
nRF52832 |
nRF52832 |
nRF52820 |
nRF52820 |
|
Board Size[mm] |
19.4×44.2×8.1 |
19.4×44.2×8.1 |
19.8×60.0×11.6 |
19.8×60.0×11.6 |
|
Module Size[mm] |
5.1×11.3×1.3 |
3.25×8.55×0.85 |
9.6×12.9×2.0 |
3.25×8.55×1.00 |
|
Board I/F |
UART |
UART |
USB,UART |
USB,UART |
|
Module I/O |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
USB,SPI, UART and I2C |
USB,SPI, UART and I2C |
|
Softdevice |
S132 |
S132 |
S112 |
S112 |
|
Remark |
Long Range |
Long Range |
|
Board Part No. |
||||
|
Soc |
nRF52811 |
nRF52811 |
nRF52810 |
nRF52810 |
|
Board Size[mm] |
19.8×60.0×8.1 |
19.4×44.2×8.1 |
19.8×60.0×8.1 |
19.4×44.2×8.1 |
|
Module Size[mm] |
9.6×12.9×2.0 |
3.25×8.55×1.00 |
9.6×12.9×2.0 |
3.25×8.55×1.00 |
|
Board I/F |
UART |
UART |
UART |
UART |
|
Module I/O |
SPI,UART, I2C, I2S, PDM and 12bit ADC |
SPI,UART, I2C, PDM and 12bit ADC |
SPI,UART, I2C, PDM and 12bit ADC |
SPI,UART, I2C, PDM and 12bit ADC |
|
Softdevice |
S112 |
S112 |
S112 |
S112 |
|
Remark |
Long Range |
Long Range |
