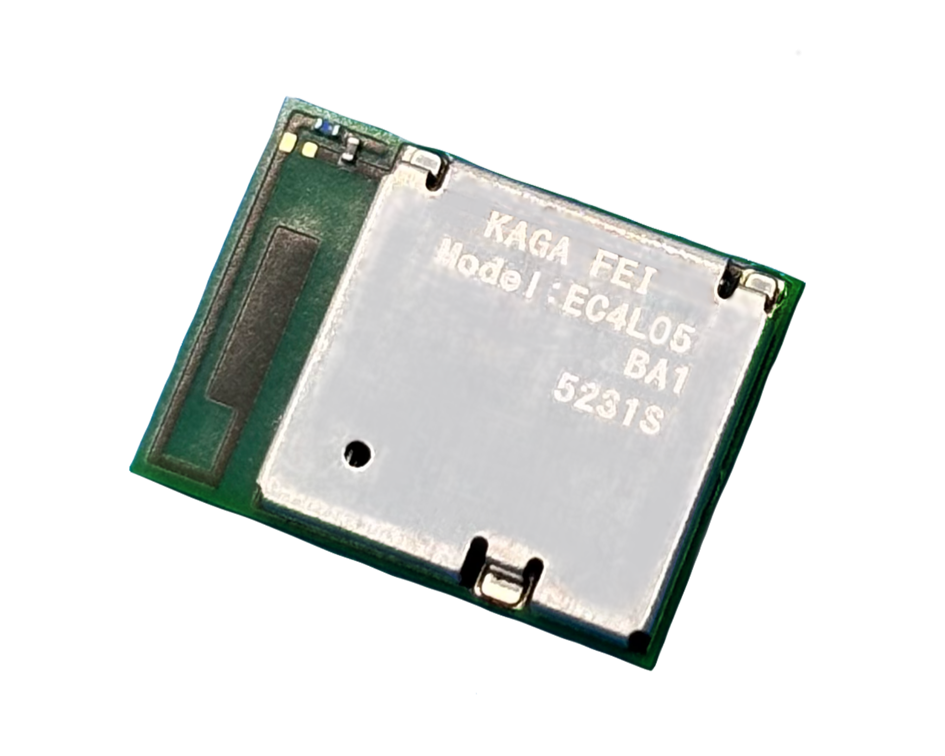

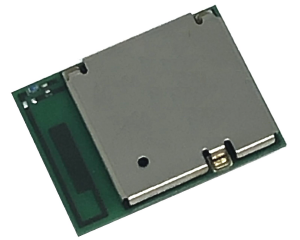

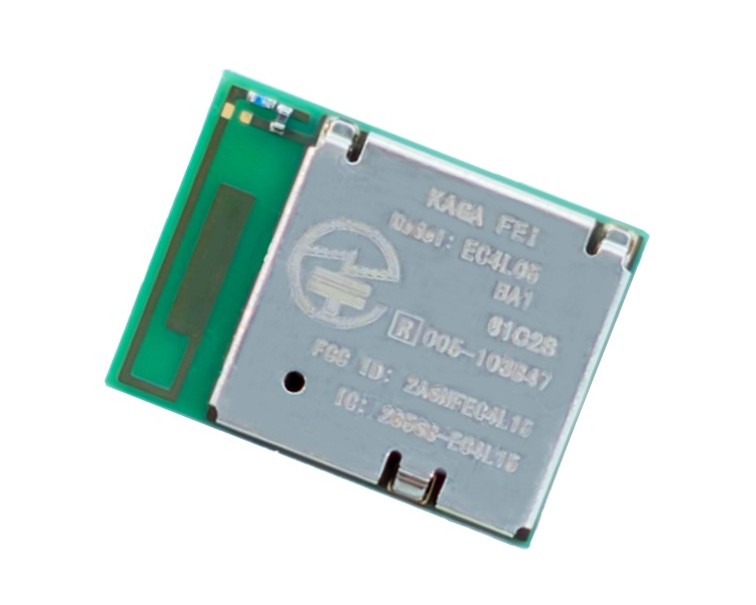

EC4L05BA1
Wireless Module
Bluetooth® Low Energy (BLE)
Part Number
EC4L05BA1
Status
Under development

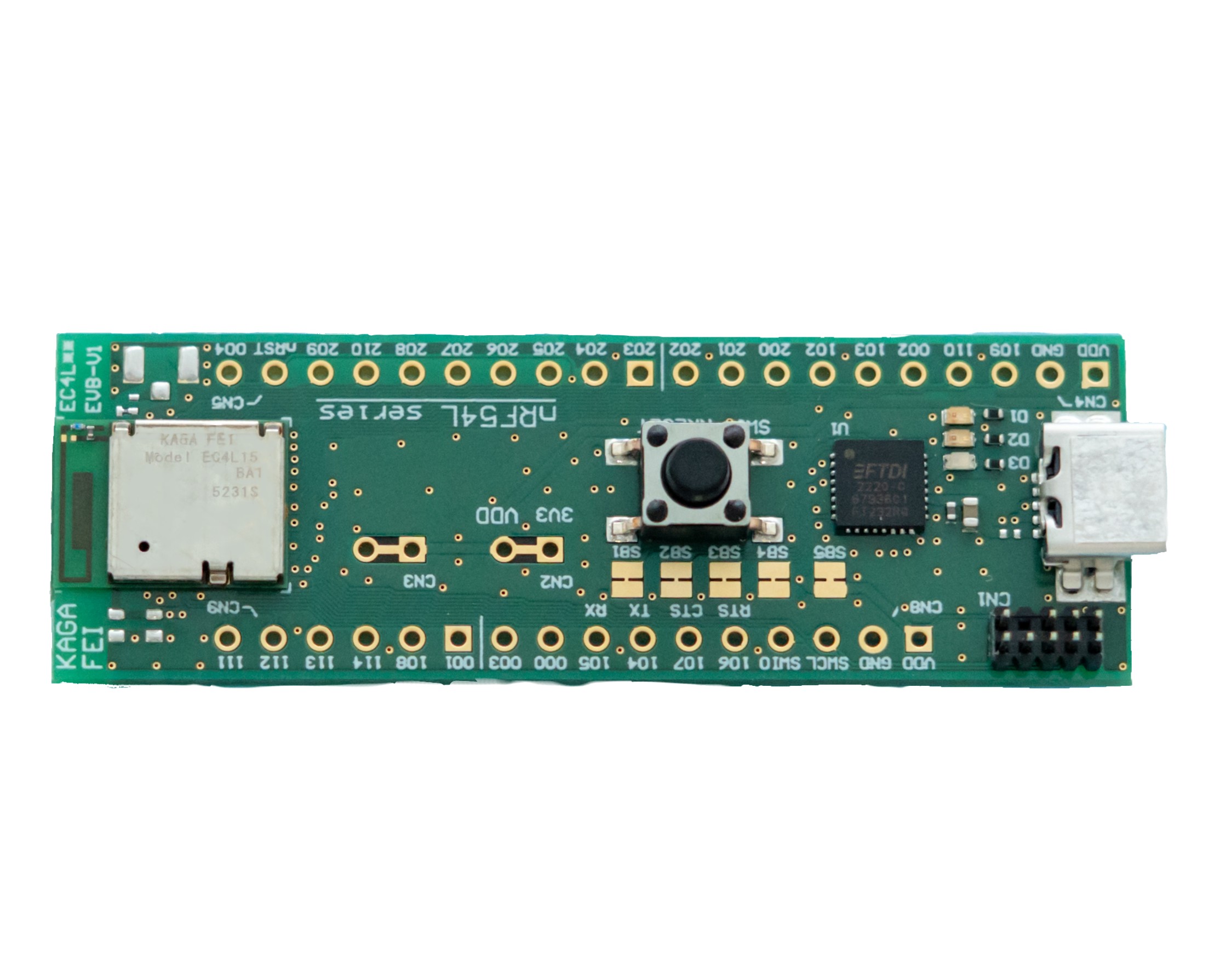

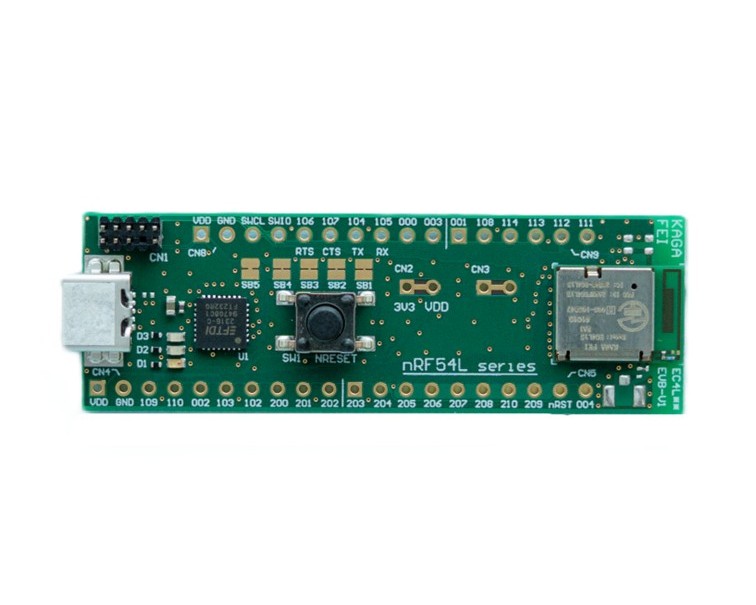

Evaluation Board
EC4L15BA1-EVB
Evaluation Board for
Bluetooth® Low Energy module
EC4L05BA1.

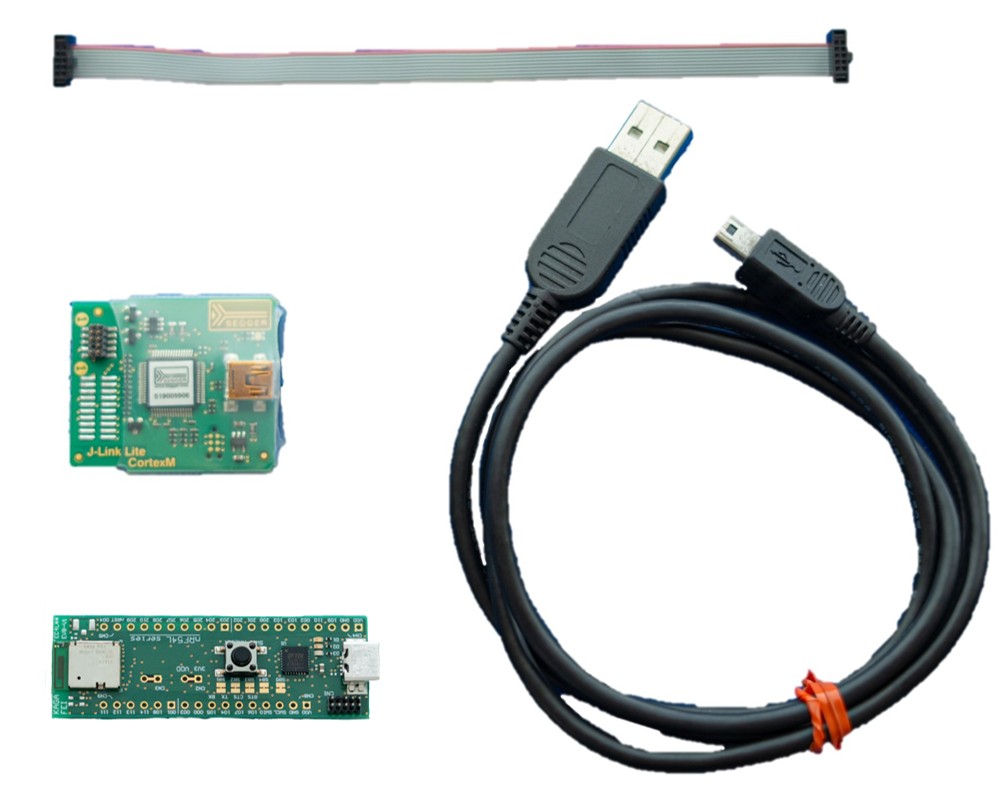

Evaluation Kit
EC4L15BA1-EVK
Evaluation Kit for
Bluetooth® Low Energy module
EC4L05BA1.
Key Features
Bluetooth® Version: 6 (support: 2M / 1M / 500k
/ 125kbps / Channel Sounding)
Single Mode Bluetooth® Low Energy / 802.15.4
(e.g. Thread, Zigbee), 4Mbps data rate option for
2.4 GHz proprietary.
Frequency: 2402 to 2480 MHz
Output power: +7dBm typ.
Single power supply: 1.7 – 3.6V
Integrated System/Sleep Clock, LC for DC/DC
Integrated high performance PCB antenna
ARM® Cortex-M33 processor with TrustZone® (128MHz)
/ 0.5MB non volatile memory, 96 KB RAM
IoT Security standard: PSA Certified Level 3
Outline: 9.6 x 12.9 x 2.0 mm
Peripherals : Global RTC, 14-bit ADC, and a software-
defined peripheral enabled by a RISC-V coprocessor
etc.
Bluetooth® qualified and Japan, FCC, ISED certified
ETSI EN 300 328 V2.2.2 conducted test report available
RoHS compliant / Complete Lead Free
