EC2810AA2
.png)
Wireless Module
Bluetooth® low energy (BLE)
Part Number
EC2810AA2
Status
Mass Production
Evaluation Board
EC2810AA2-EVB
Evaluation Board for
Bluetooth® low energy module
EC2810AA2

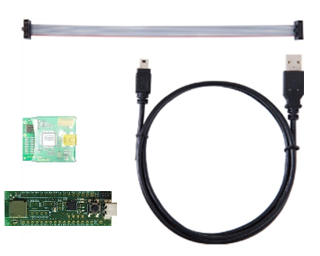

Evaluation Kit
EC2810AA2-EVK
Evaluation Kit for
Bluetooth® low energy module
EC2810AA2
Key Features
Bluetooth® Version: 5.0 (2Mbps mode)
Frequency: 2402 to 2480 MHz
Output power: +4dBm typ.
Single power supply: 1.7 – 3.6V
Single Mode Bluetooth® low energ
Integrated System Clock/Sleep Clock
Integrated high performance pattern antenna
ARM Cortex M4F 32bit processor and 192KB flash and 24KB RAM
Interface: SPI, UART, I2C, PDM and 12bit ADC
Outline: 9.6 x 12.9 x 2.0 mm with 1mm pad pitch
Bluetooth® and Japan, FCC, ISED qualified
ETSI EN 300 328 V2.2.2 conducted test report available
RoHS compliant / Complete Lead Free
for Detail
