Smart Key Mesh Network Demo



Overview of the Smart Key Mesh Network

By utilizing wireless mesh network technology for smart keys, remote locking/unlocking and door status monitoring can be achieved seamlessly, even in large offices with obstacles.

By integrating KAGA FEI’s Bluetooth® Low Energy module into electronic locks, we have developed a new demo of a smart key system that can be easily controlled via a mesh network.

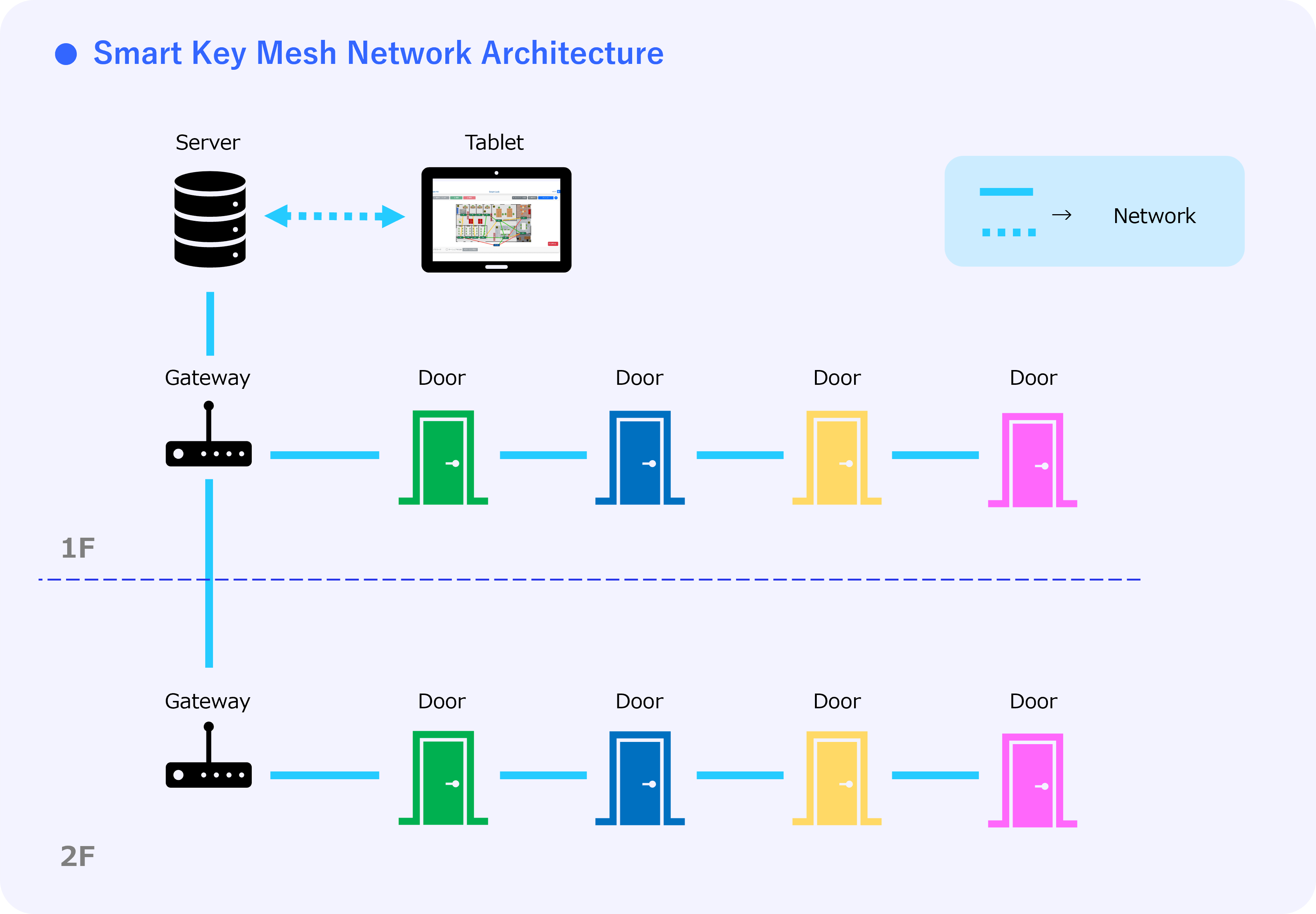

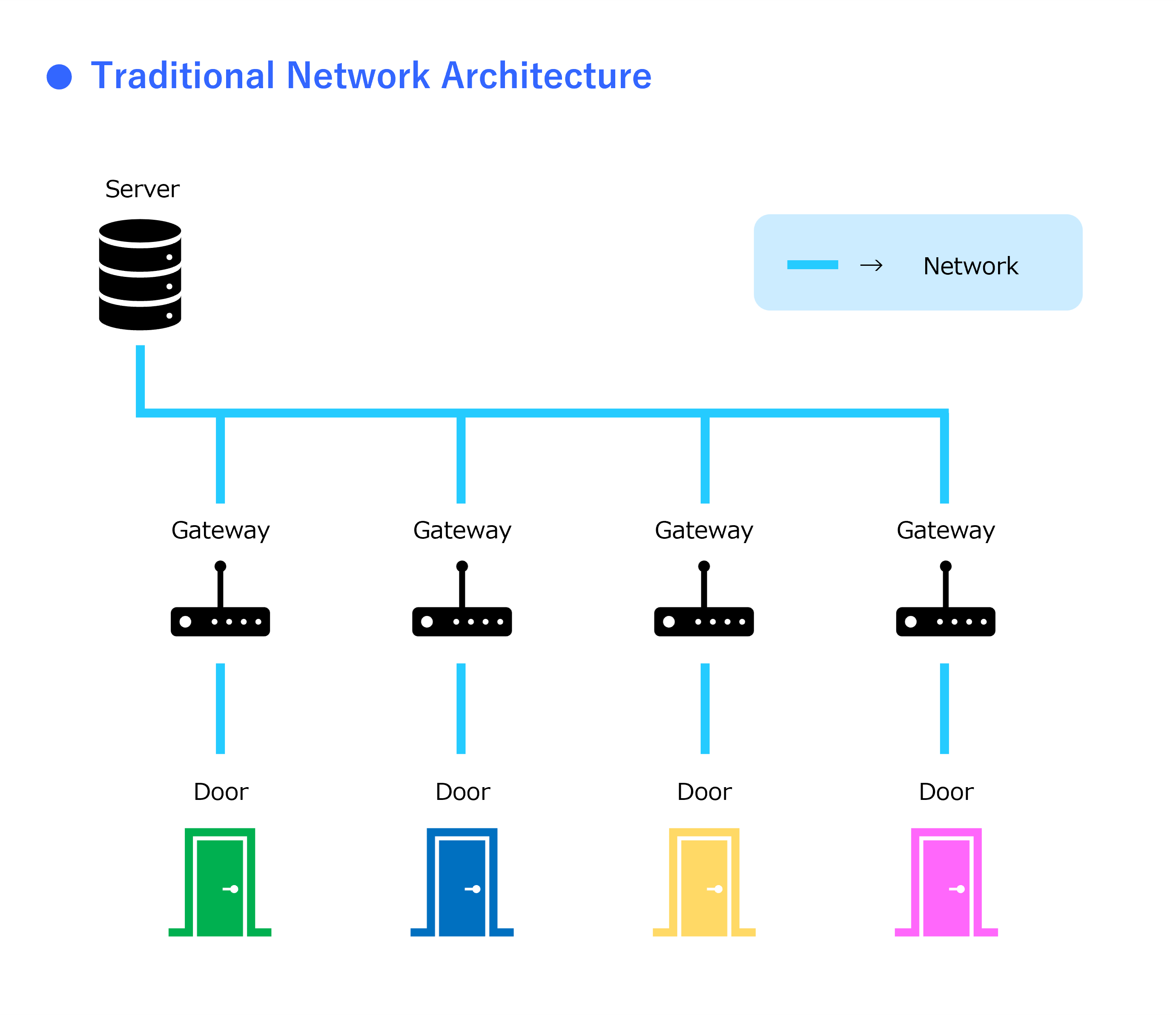

System Architecture

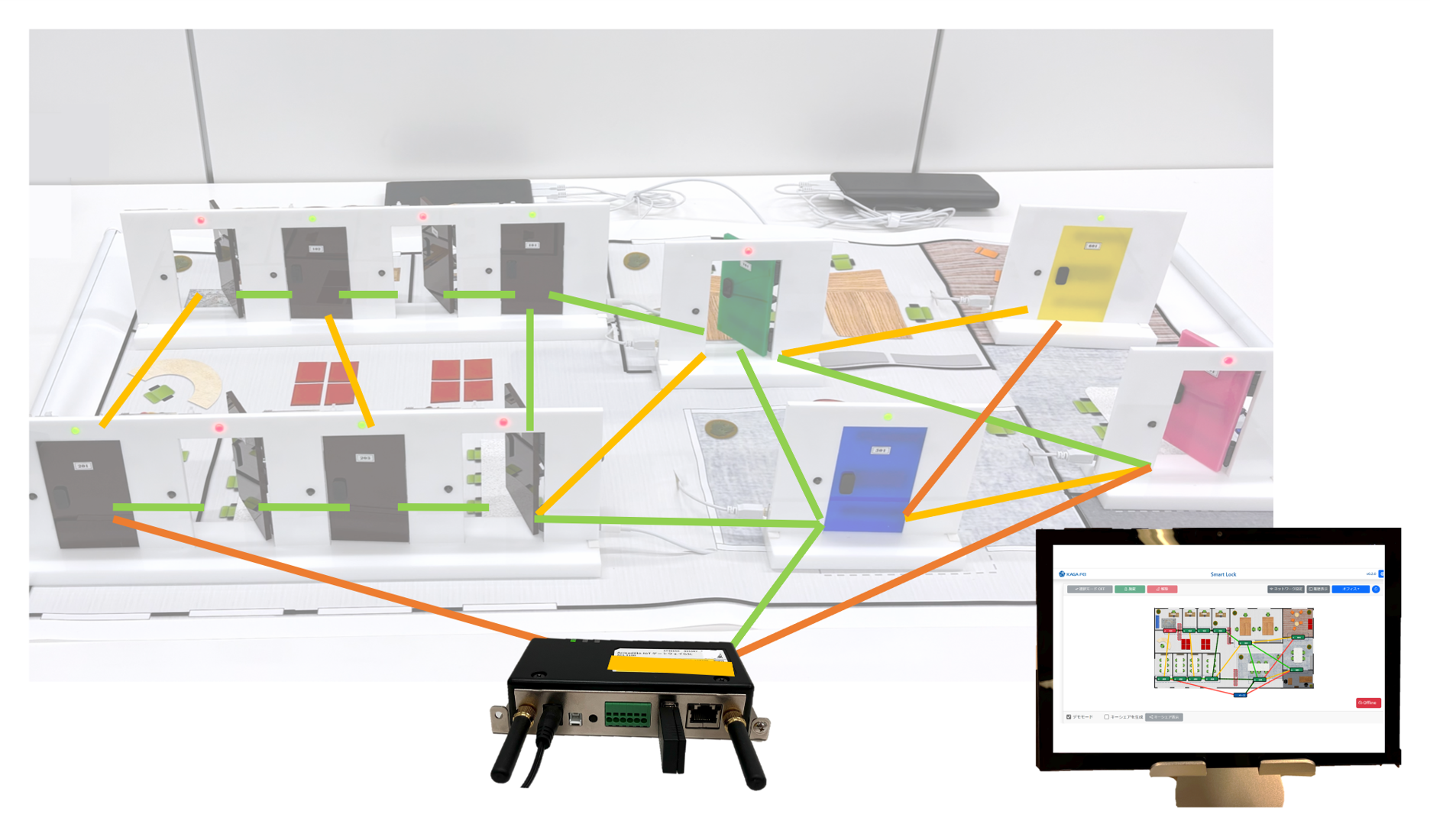

 Example: Hotel Model-Based Demo Setup

Demonstration Details

With a dedicated app installed on a tablet, you can lock and unlock doors collectively with a single operation. Additionally, individual or multiple selected doors can also be locked/unlocked.

When switched to "Demonstration Mode," the app displays the network paths used during locking/unlocking operations. In Demonstration Mode, you can also configure network paths within the app. Once set, the system will follow the designated paths for locking and unlocking.

For more details on the Smart Key Mesh Network Demo features, please watch the video below.

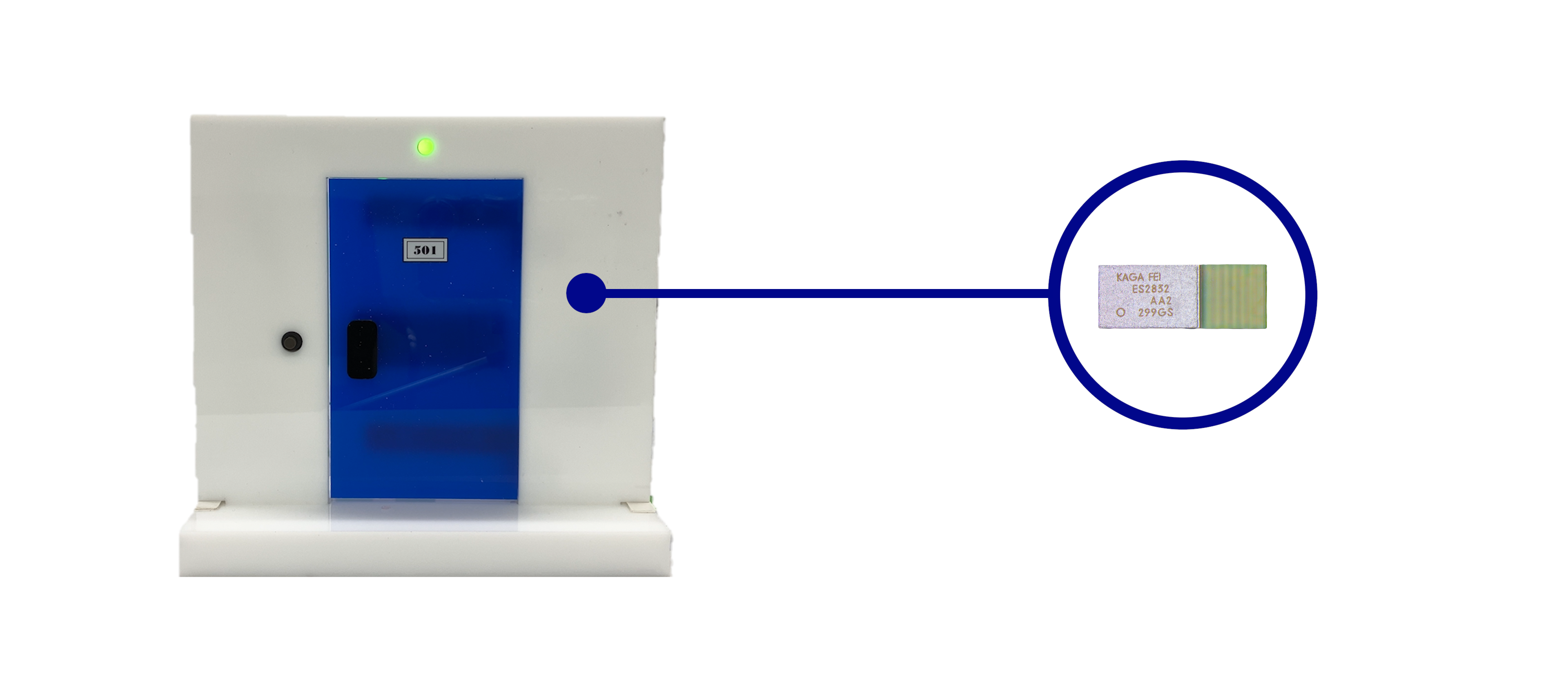

  1. Bluetooth Low Energy Module in Use

    【 ES2832AA2】
    　IC Chip： nRF52832
    　Size： 3.25×8.55×0.85mm
    　Flash： 512KB　RAM： 64KB

KAGA FEI provides module solutions featuring the mesh network technology introduced above to help solve customer challenges.
Please feel free to contact us for more information.
