Overall Structure

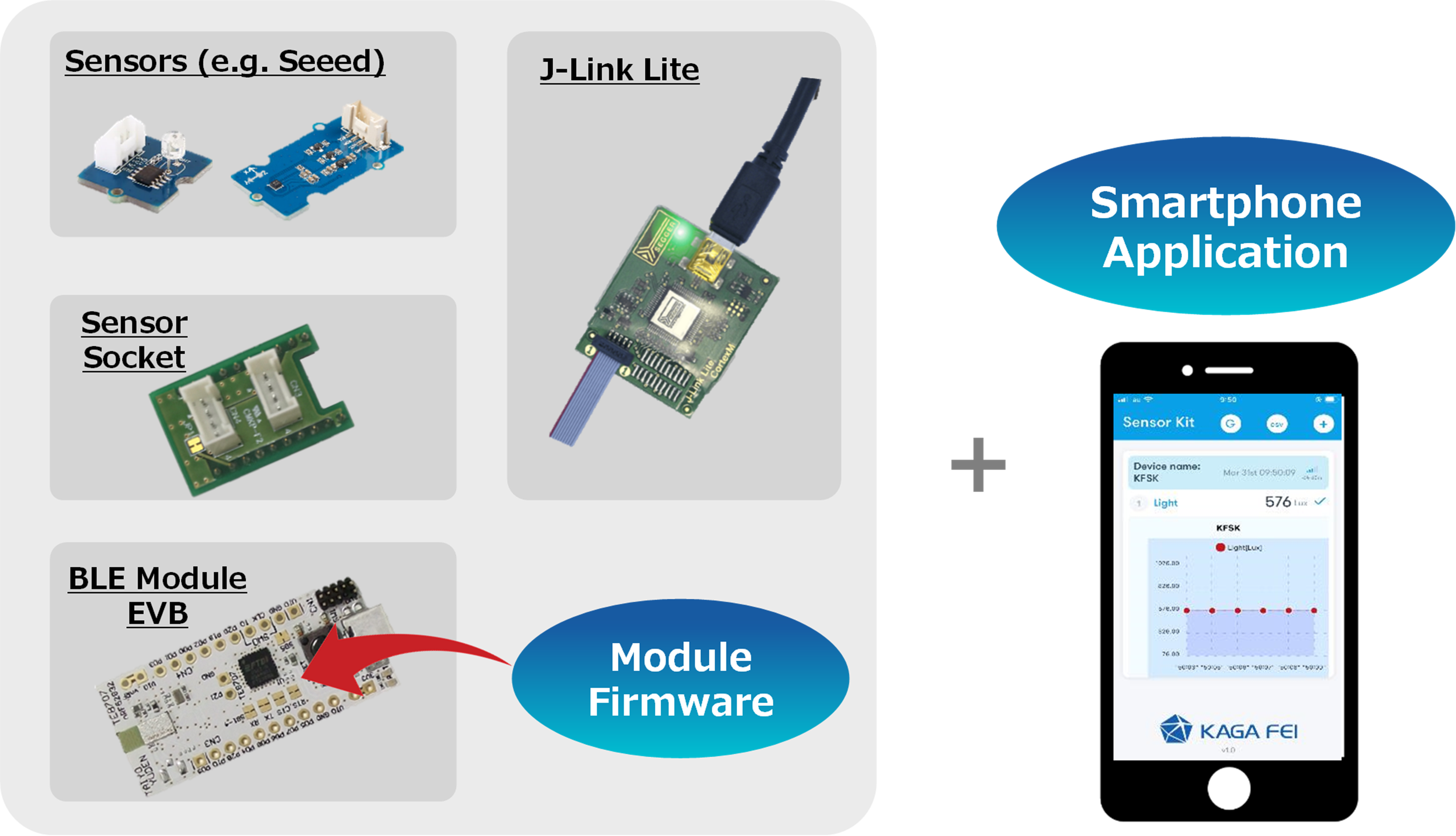

The IoT sensing evaluate solution combines a sensor socket "EY1SENSOR-SKT", common sensors, a Bluetooth® low energy evaluation board/kit, and firmware provided by KAGA FEI.

Hardware purchase

Evaluation board, Evaluation kit

We offer several evaluation kits/boards from a full line of BLE modules to support sensing evaluate solution. For more information, please visit "Bluetooth low energy Sensing Evaluate Solution (CLI)" link below or refer to the list of "Supported Evaluation Kits/Boards" below.

The supported firmware and related documents are available on the link below.

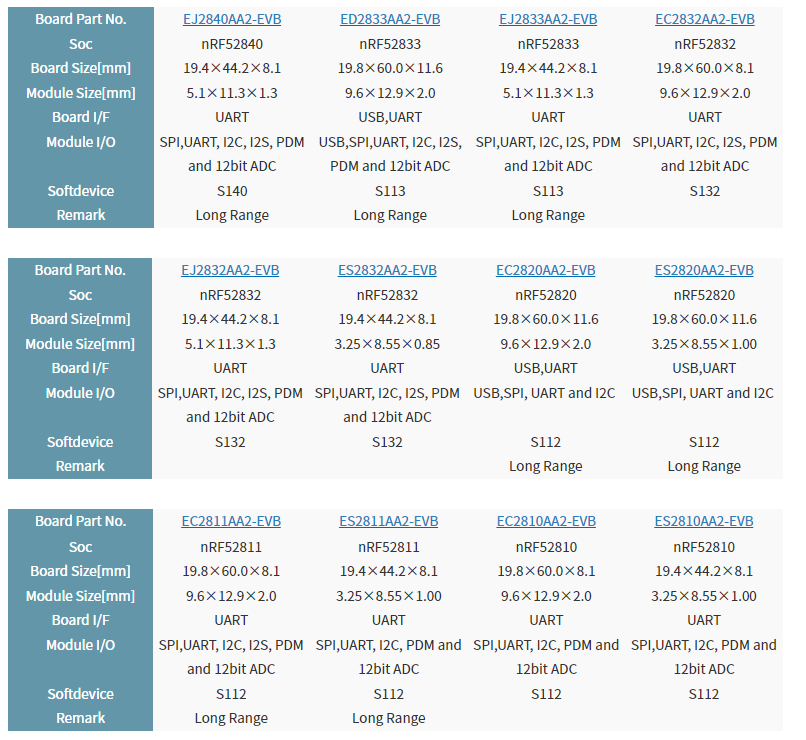

Supported Evaluation Kits/Boards

Evaluation Kit includes a module evaluation board and J-Link Lite.

Evaluation Board includes a module evaluation board only.



* You need a debugger separately for Evaluation Board to write firmware. Since we don't sell debugger alone, we recommend you to purchase Evaluation Kit.

Sensor Socket

Sensor Socket "EY1SENSOR-SKT"

Sensors

Supported sensors are introduced in a document "Overview". Please refer the sensor list.

* Reference page: "18 operation-confirmed sensor list 1/2" and "2/2"

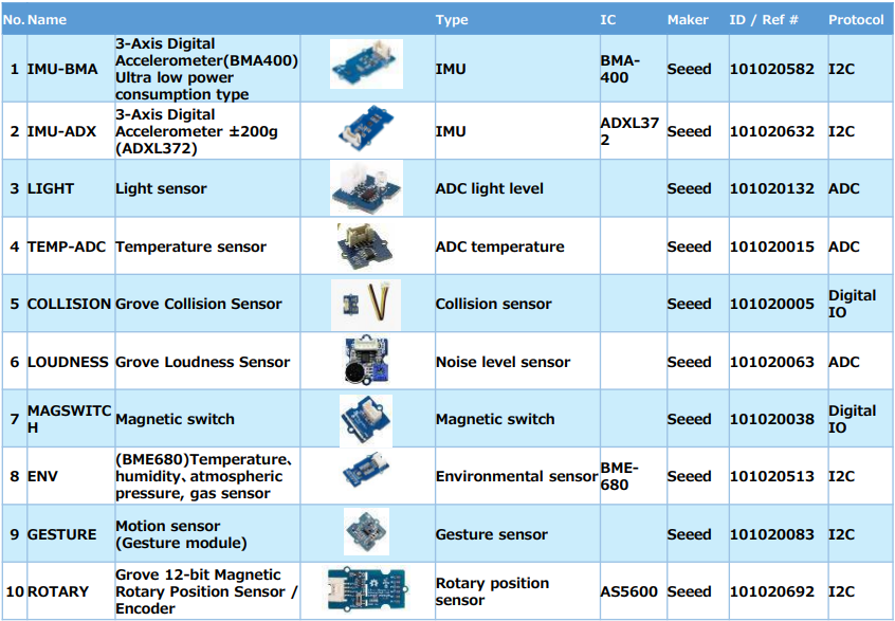

Some part of the sensor list

Assemble

Plsase watch a short video to learn how to connect the boards of IoT sensing evaluate solution and assemble them.

Please refer "Multi Sensor Board Beacon Firmware" document for about the sensors and the connectors.

* Reference page: "3.2.2 About I/F available for each module"

Bluetooth® low energy evaluation board or evaluation kit can be purchased

through various online distributors.
