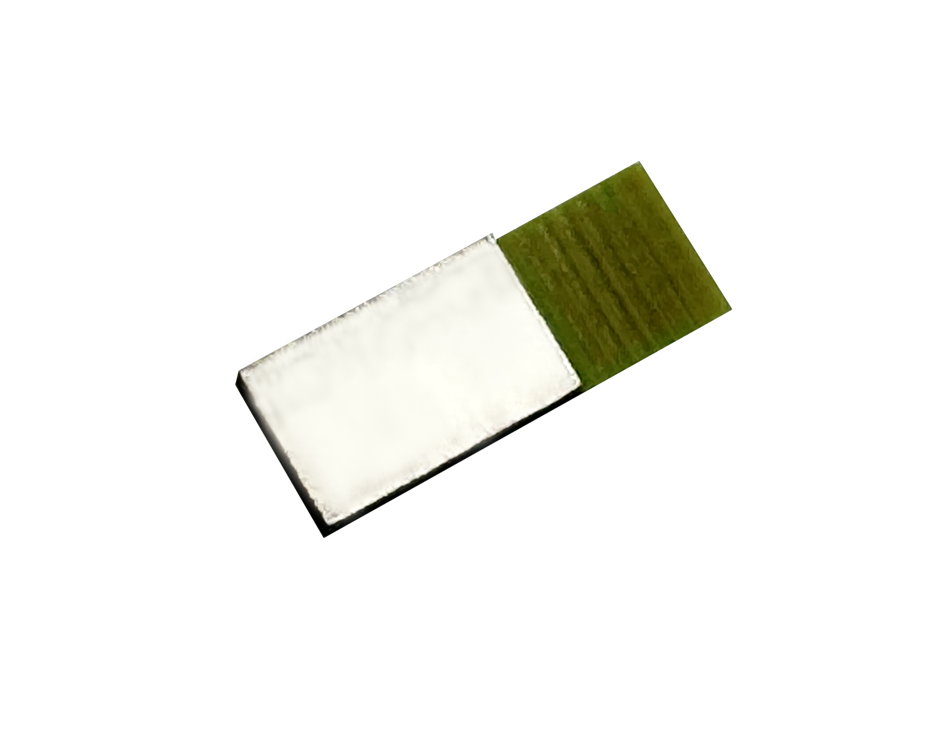

ES4L15MA1
Wireless Module
Bluetooth® Low Energy
Part Number: ES4L15MA1
Status: Under Development

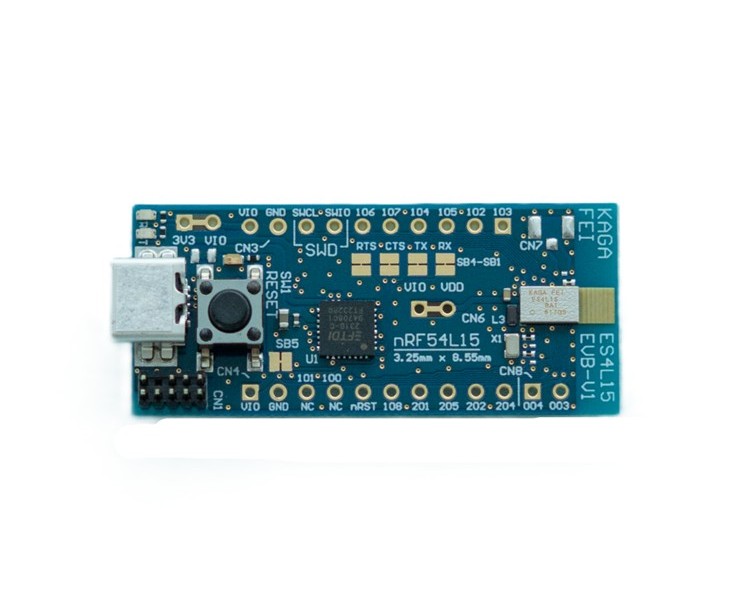

Evaluation Board
ES4L15MA1-EVB
Evaluation Board for
Bluetooth® Low Energy module
ES4L15MA1.
Key Features
Bluetooth® Core 6
(support LE 2M, LE Coded)
Frequency: 2402 to 2480 MHz
Output power: +8dBm typ.
Single power supply: 1.7 – 3.6V
Bluetooth® Low Energy
Integrated System Clock
Integrated high performance pattern antenna
ARM® Cortex M33 processor with TrustZone® (128MHz)
Outline: 3.25 x 8.55 x 1.00 mm
Interface: UART
Bluetooth® qualified and Japan, FCC, ISED certified
ETSI EN 300 328 V2.2.2 Conducted Test Report Available
RoHS compliant / Complete Lead Free
Software Embedded by KAGA FEI
(No Application Software Development Required)
Command-based API via UART
Peripheral and Central Role Support
Multi-Connection Support (up to 8 devices)
Integrated SPP-like Bluetooth LE Profile
Custom GATT Service Configuration
OTA and UART Device Firmware Update (DFU)
Power Save and Deep Sleep Modes
