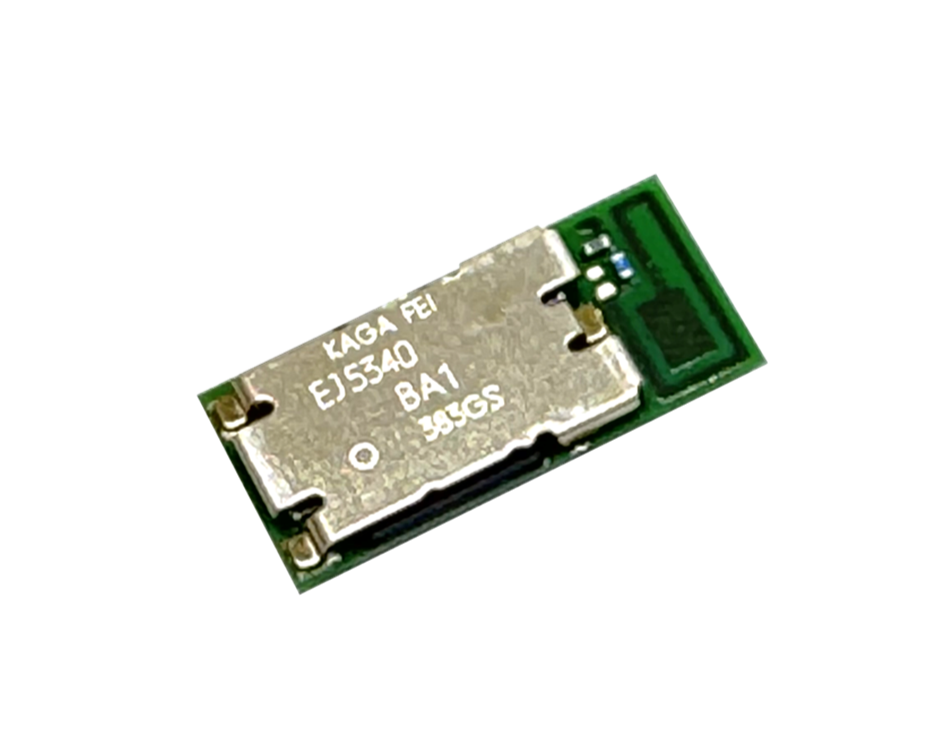

EJ5340BA1
Wireless Module
Bluetooth® low energy (BLE)
Part Number
EJ5340BA1
Status
Mass Production
Evaluation Board
EJ5340BA1-EVB
Evaluation Board for
Bluetooth® low energy module
EJ5340BA1.

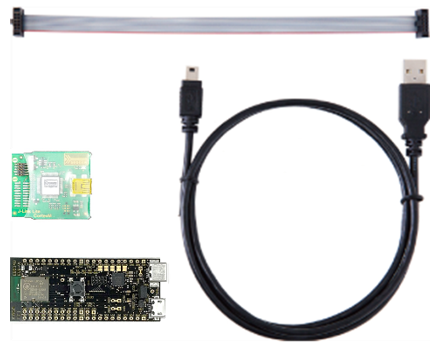

Evaluation Kit
EJ5340BA1-EVK
Evaluation Kit for
Bluetooth® low energy module
EJ5340BA1.
Key Features
Bluetooth® Version: 5.4 (support: 2M / 1M / 500k / 125kbps / AoA / AoD)
Frequency: 2402 to 2480 MHz
Output power: +3dBm typ.
Single power supply: 1.7 – 5.5V
Single Mode Bluetooth® low energy / 802.15.4 radio support
Integrated System Clock
Integrated powerful performance pattern antenna
ARM® Cortex M33 for Application core / 1MB Flash & 512kB RAM
ARM® Cortex M33 for Network core / 256kB Flash 64kB RAM
ARM® TrustZone® Cryptocell 312 cryptographic accelerator
Outline: 5.1 x 11.3 x 1.3 mm
Interface: USB,SPI, UART, I2C, I2S, PDM and 12bit ADC,NFC-A
Bluetooth® and Japan, FCC, ISED qualified
ETSI EN 300 328 V2.2.2 conducted test report available
RoHS compliant / Complete Lead Free
for Detail
| Document Name | Version | Date |
|---|
Overview
|
V1.3 | 2024/08/06 |
|
Data Sheet
|
V1.1 | 2024/02/02 |
|
Evaluation Board/Kit manual
|
V1.0 | 2023/10/10 |
|
Firmware Writing manual
|
V1.0 | 2023/07/25 |
ETSI Test Report
|
V1.0 | 2023/10/27 |
|
FAQ
|
V1.1 | 2024/07/26 |
|
Radio Law FAQ
|
V1.1 | 2023/08/17 |
|
Module CAD Data
|
V1.2 | 2024/08/07 |
