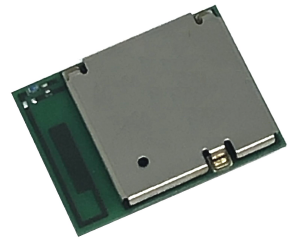

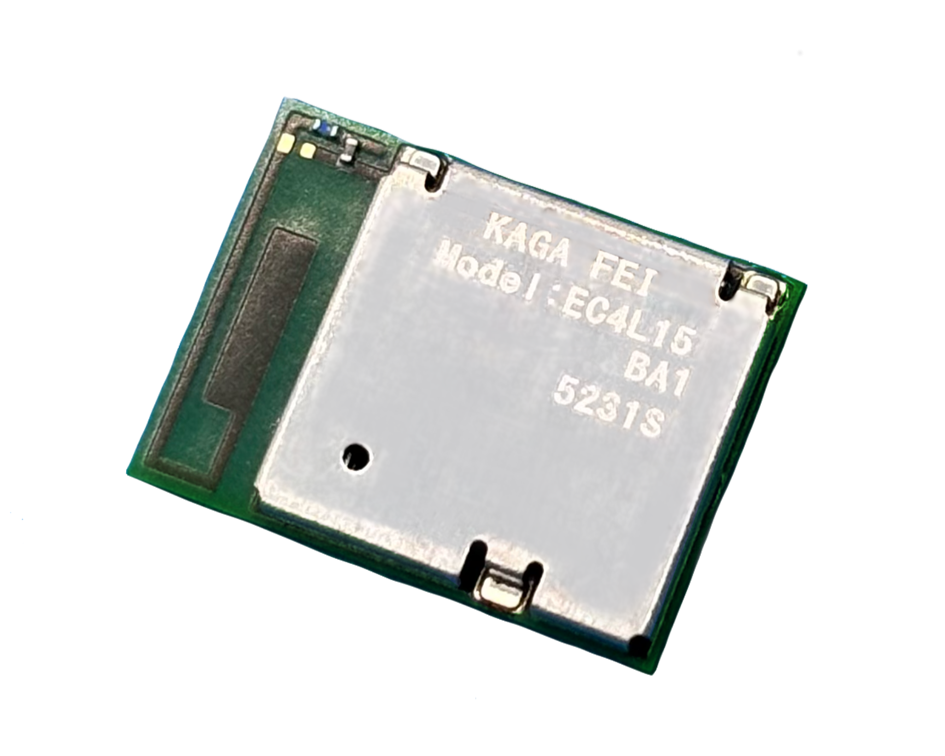

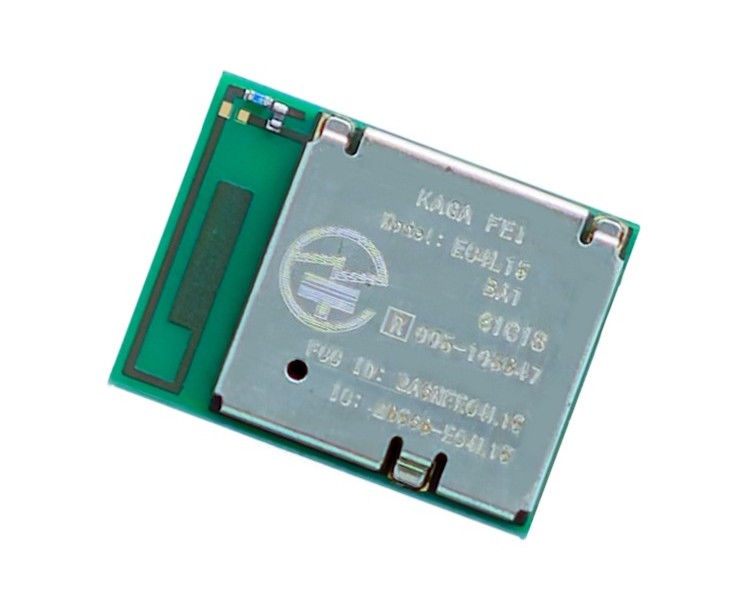

EC4L15BA1
Wireless Module
Bluetooth® low energy (BLE)
Part Number
EC4L15BA1
Status
Under development

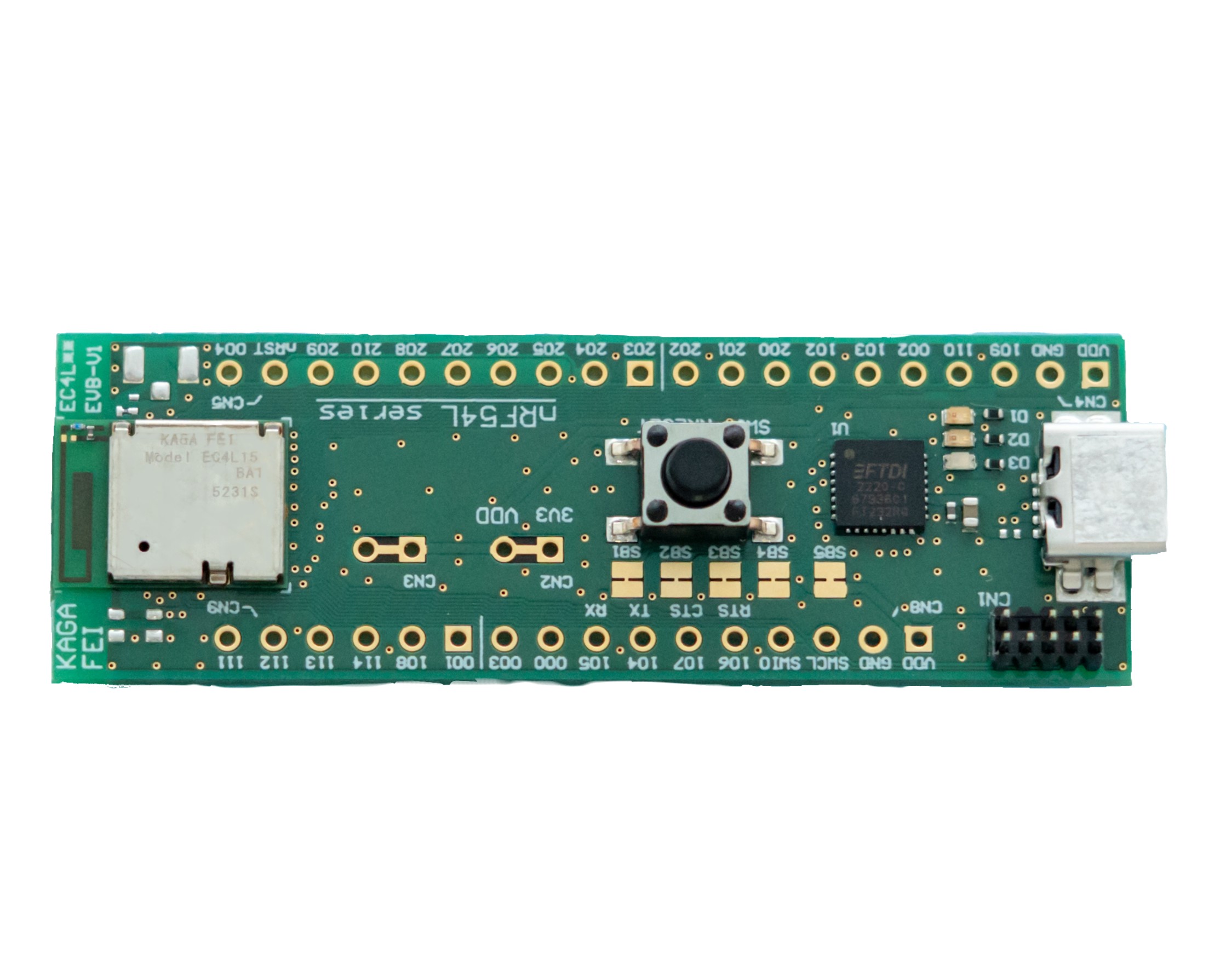

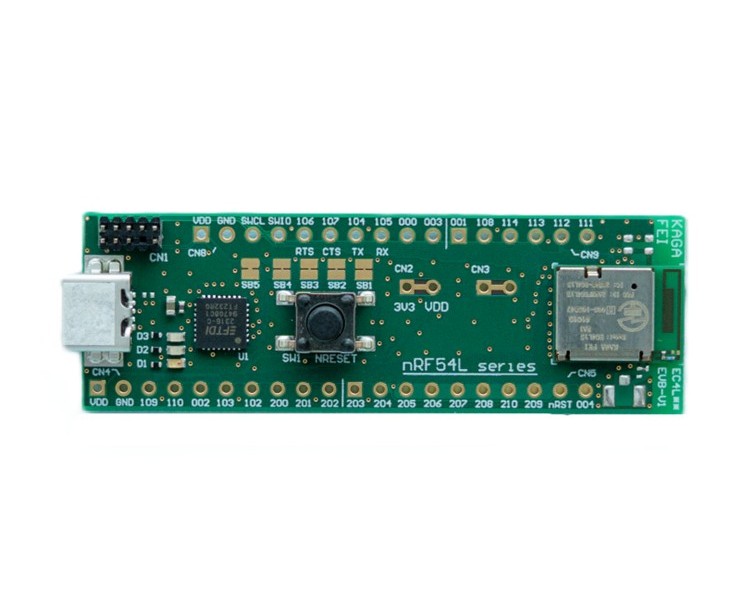

Evaluation Board
EC4L15BA1-EVB
Evaluation Board for
Bluetooth® low energy module
EC4L15BA1.

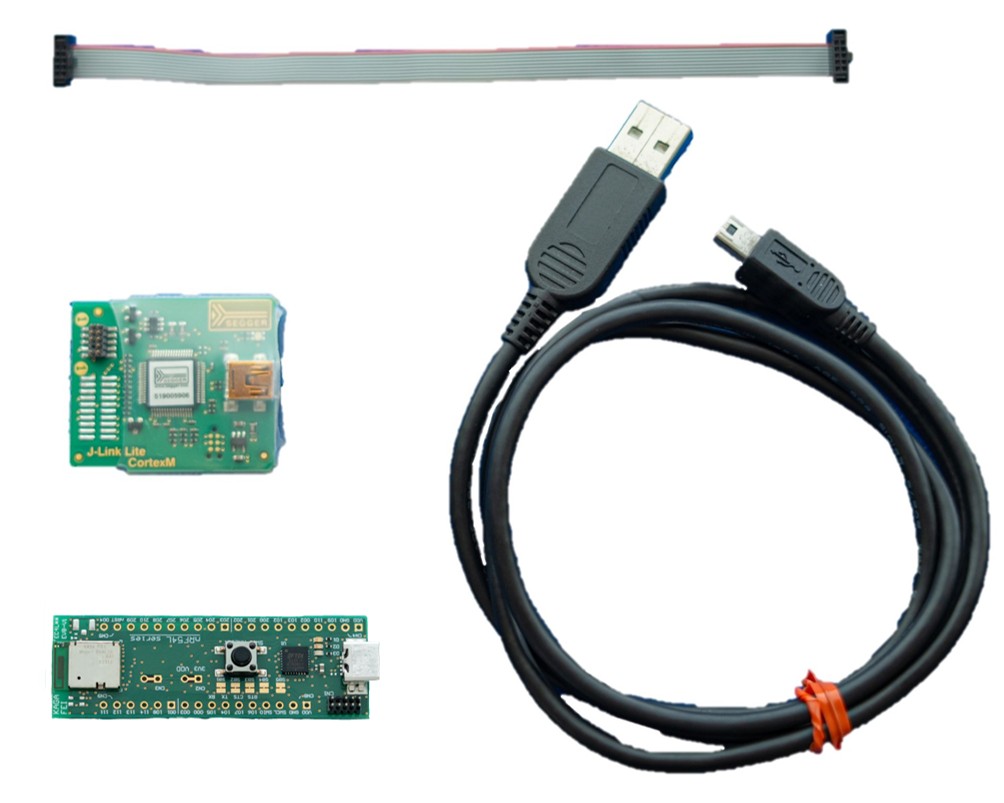

Evaluation Kit
EC4L15BA1-EVK
Evaluation Kit for
Bluetooth® low energy module
EC4L15BA1.
Key Features
Bluetooth® Version: 6.0 (support: 2M / 1M / 500k / 125kbps / Channel Sounding)
Frequency: 2402 to 2480 MHz
Output power: +7dBm typ.
Single power supply: 1.7 – 3.6V
Single Mode Bluetooth® low energy / 802.15.4 radio support
Integrated System/Sleep Clock
Integrated high performance pattern antenna
ARM® Cortex M33 processor with TrustZone® (128MHz)
/ 1.5MB non volatile memory, 256 KB RAM
Outline: 9.6 x 12.9 x 2.0 mm
Peripherals : Global RTC, 14-bit ADC, and a software-defined peripheral enabled by a RISC-V coprocessor etc.
Bluetooth® and Japan, FCC, ISED qualified
ETSI EN 300 328 V2.2.2 conducted test report available
RoHS compliant / Complete Lead Free
