UI Conductor
HMI development tools for embedded equipment
Product Specifications

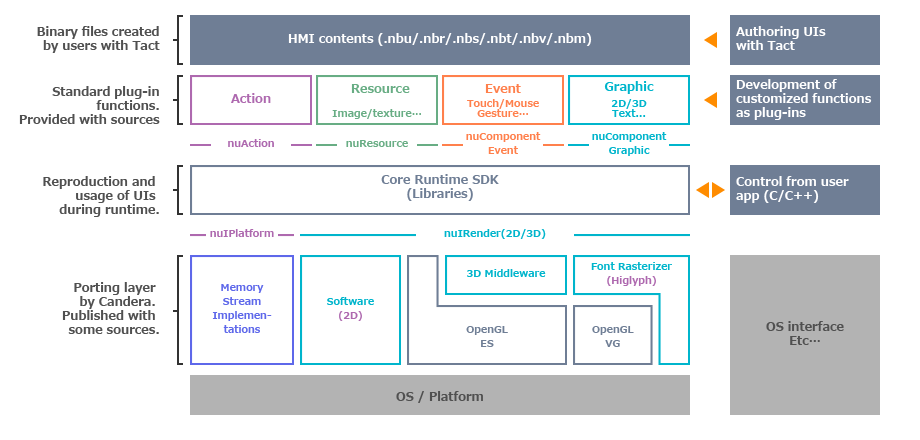

Software configuration diagram
Included in products (SDK)
Runtime
- Standard Plug-in (libraries, source codes)
- Core libraries (libraries)
- Porting layer RI (libraries, source codes)
- 2D renderer (SW/HW)
- 3D renderer
Tool
- exbeans® UI ConductorTact （tool）
- Photoshop Importer / Exporter Plugin
- Dedicated viewer
- Multilingual editor
Samples
- Sample codes
- Sample contents
Documents
- Tutorial
- Reference Manual
- Designer's Manual
- Programmer's Manual
Operating environment
Tool
| OS | Windows 7 (x64), Windows 8/8.1, Windows 10 |
|---|---|
| CPU | Core i5 or higher |
| Memory | 2 GB or more (4 GB or more is recommended) |
| GPU | Graphic card supporting Direct X11 or higher
※Necessary only when using 3D |
Runtime (embedded library)
| OS | Can be ported to various platforms |
|---|---|
| CPU | ARM9 200 MHz or higher (depending on contents) |
| Memory | Depends on contents |
| GPU | OpenGL ES 2.0 or later, OpenVG
（Software rendering can be used even with no GPU） |
